DME-M Series
Manufacturer: Adam Tech
Beta
⌘K
HEADERS & WIRE HOUSINGS WIRE PLUG HOUSING
| Part | Note | Insulation Material | Mounting Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Contact Termination | Connector Type | Number of Rows | Number of Positions | Contact Type | Row Spacing | Row Spacing | Voltage Rating | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Insulation Color | Current Rating (Amps) | Features | Fastening Type | Contact Material | Shrouding | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Finish - Post | Contact Shape | Number of Positions Loaded | Termination | Style | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

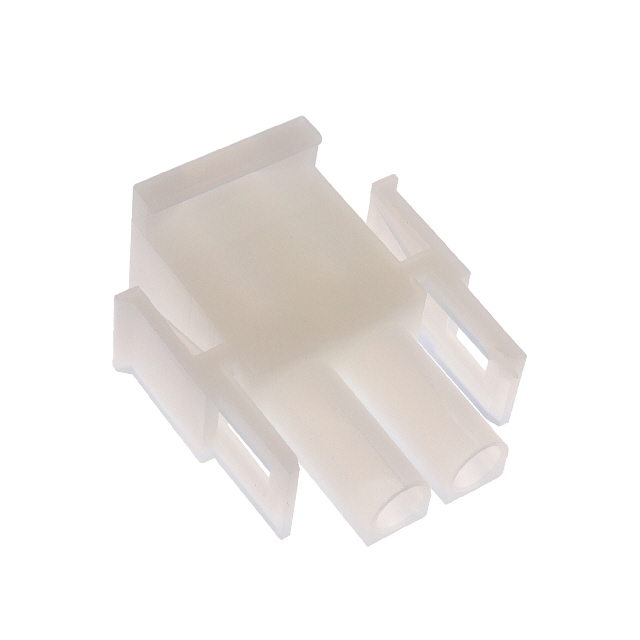

 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -40 C | 105 ░C | 6.35 mm | 0.25 in | Crimp | Plug | 1 | 2 | Male Pin | ||||||||||||||||||||||

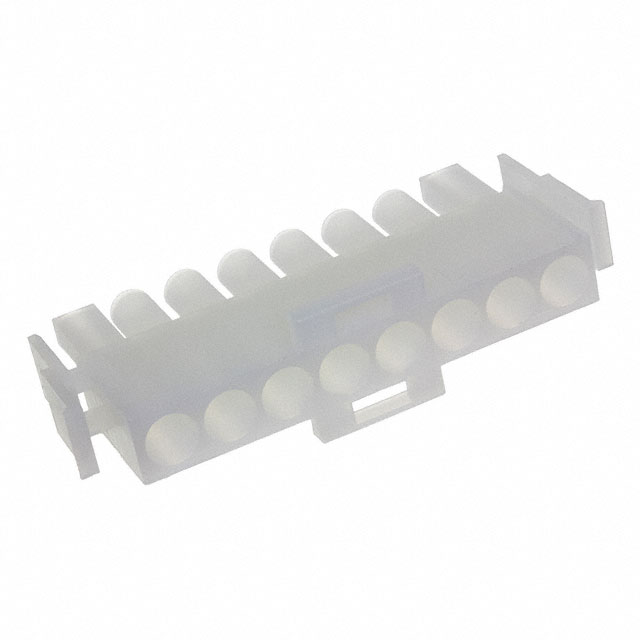

 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -55 C | 105 ░C | Crimp | Receptacle | 1 | 8 | Male Pin | 0.25 in | 6.35 mm | ||||||||||||||||||||||

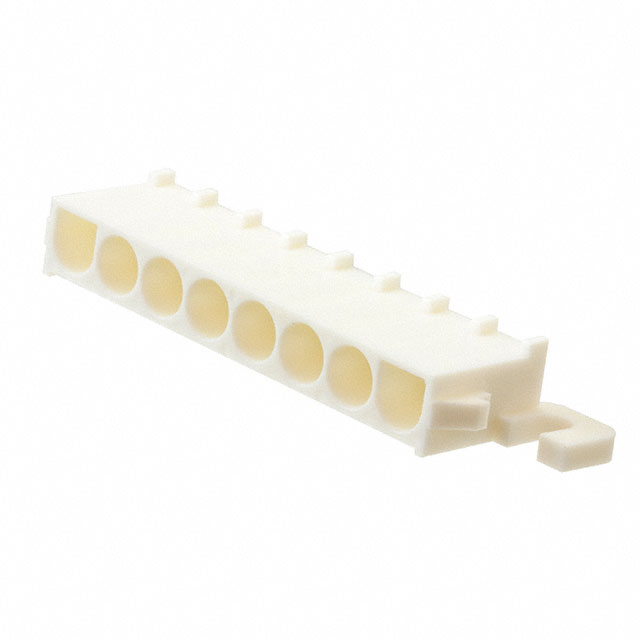

 Adam Tech | Nylon 6/6 Polyamide (PA66) | Right Angle Through Hole | -55 C | 105 ░C | Header | 1 | 8 | Male Pin | 600 VAC | 0.16 in | 4.06 mm | 9.14 mm | 0.36 in | Natural | 13 A | Mounting Flange | Locking Ramp | Phosphor Bronze | Shrouded - 4 Wall | 6.35 mm | 0.25 in | UL94 V-2 | Tin | Circular | All | Solder | Board to Cable/Wire | ||||||||

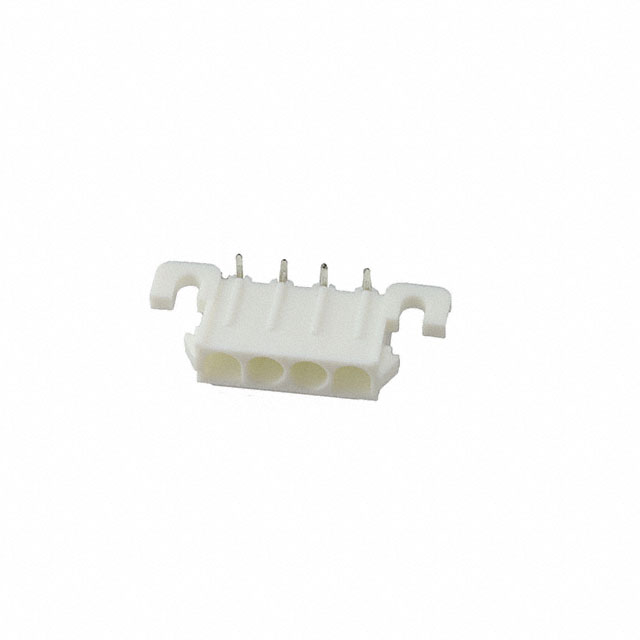

 Adam Tech | Nylon 6/6 Polyamide (PA66) | Right Angle Through Hole | -55 C | 105 ░C | Header | 1 | 4 | Male Pin | 600 VAC | 0.16 in | 4.06 mm | 9.14 mm | 0.36 in | Natural | 13 A | Mounting Flange | Locking Ramp | Phosphor Bronze | Shrouded - 4 Wall | 6.35 mm | 0.25 in | UL94 V-2 | Tin | Circular | All | Solder | Board to Cable/Wire | ||||||||
 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -40 C | 105 ░C | 6.35 mm | 0.25 in | Crimp | Plug | 1 | Male Pin | |||||||||||||||||||||||

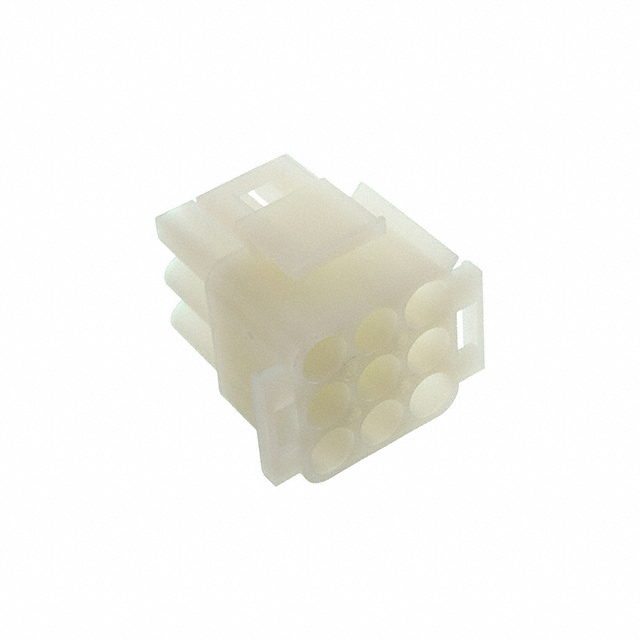

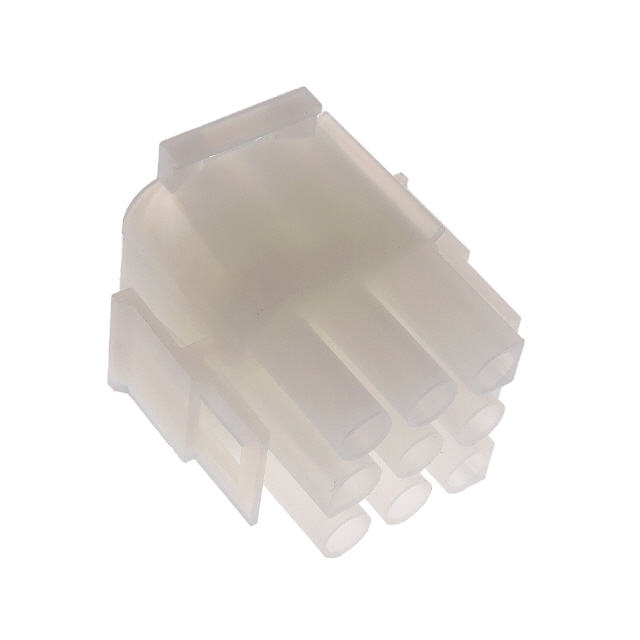

 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -40 C | 105 ░C | 6.35 mm | 0.25 in | Crimp | Plug | 9 | Male Pin | 0.25 in | 6.35 mm | 3 | ||||||||||||||||||||
 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -55 C | 105 ░C | Crimp | Receptacle | 1 | Male Pin | |||||||||||||||||||||||||

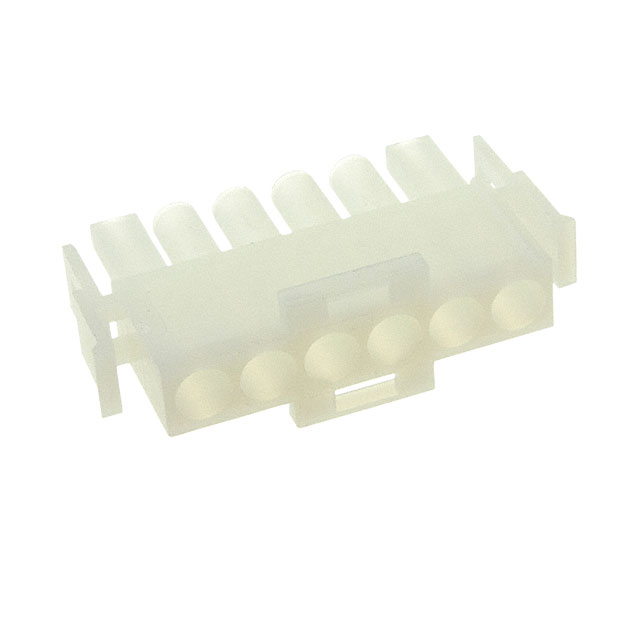

 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -55 C | 105 ░C | Crimp | Receptacle | 1 | 6 | Male Pin | ||||||||||||||||||||||||
 Adam Tech | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | Panel Mount Snap-In | Natural | -55 C | 105 ░C | Crimp | Receptacle | 6 | Male Pin | 0.25 in | 6.35 mm | 2 | ||||||||||||||||||||||
 Adam Tech | Nylon 6/6 Polyamide (PA66) | Right Angle Through Hole | -55 C | 105 ░C | Header | 1 | Male Pin | 600 VAC | 0.16 in | 4.06 mm | 9.14 mm | 0.36 in | Natural | 13 A | Mounting Flange | Locking Ramp | Phosphor Bronze | Shrouded - 4 Wall | 6.35 mm | 0.25 in | UL94 V-2 | Tin | Circular | All | Solder | Board to Cable/Wire |
