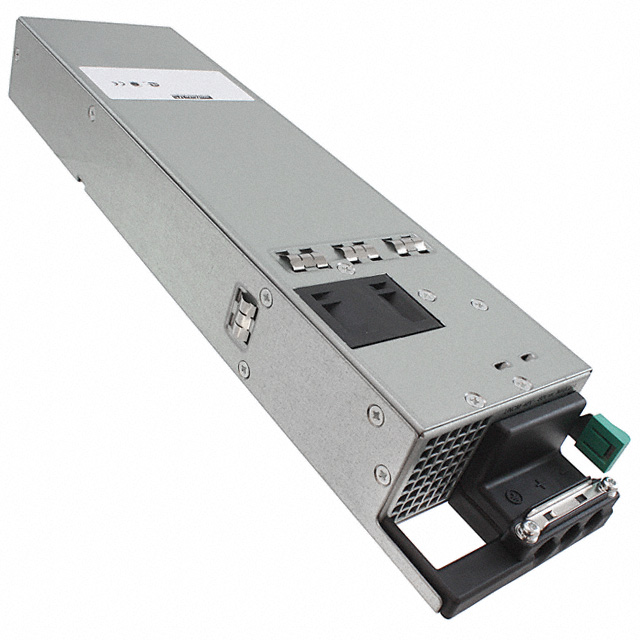

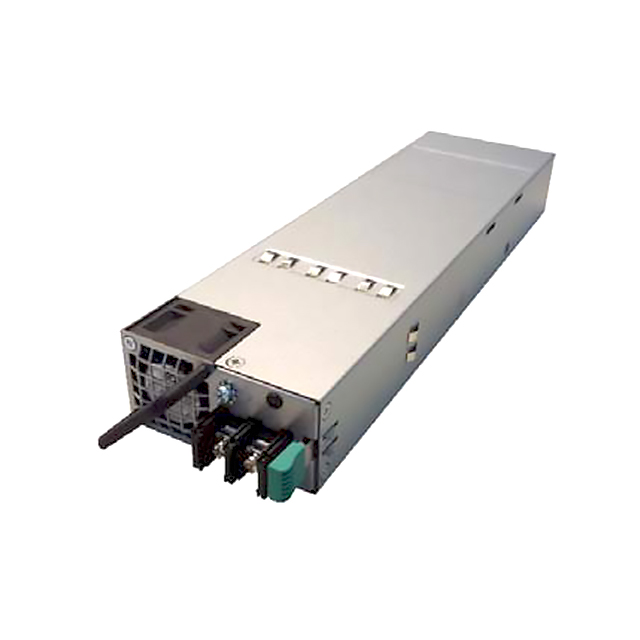

D1U3CS-D Series
Manufacturer: Murata Electronics
Beta
⌘K
DC/DC CONVERTER 12V 829W
| Part | Efficiency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 | Current - Output (Max) [Max] | Power (Watts) | Approval Agency | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 87 % | 1 | 50 °C | -10 °C | ITE (Commercial) | 12 V | 69.1 A | 829 W | CB cCSAus CE TUV | -72 V | Rack Mount | -40 V | Front End | 1.57 " | 3.2 " | 39.9 mm | 11 in | 279.4 mm | 81.3 mm |
 Murata Electronics | 93 % | 1 | 50 °C | 0 °C | ITE (Commercial) | 12 V | 133 A | 1.6 kW | CB cCSAus CE | -72 V | Rack Mount | -40 V | Front End | 1.57 " | 3.2 " | 39.9 mm | 11 in | 279.4 mm | 81.3 mm |
 Murata Electronics | 87 % | 1 | 50 °C | -10 °C | ITE (Commercial) | 12 V | 69.1 A | CB cCSAus CE TUV | -72 V | Rack Mount | -40 V | Front End | 1.57 " | 3.2 " | 39.9 mm | 11 in | 279.4 mm | 81.3 mm |
