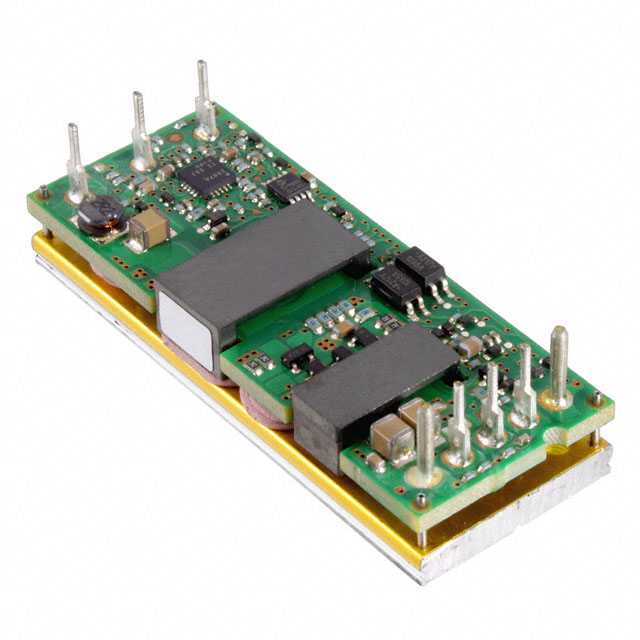

ESTW010 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 5V 50W
| Part | Mounting Type | Efficiency | Package / Case | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Applications | Number of Outputs | Features | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Output 1 | Power (Watts) | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Through Hole | 91 % | 8-DIP Module 1/8 Brick | 2250 VDC | 12.2 mm | 57.9 mm | 0.9 in | 22.8 mm | 0.48 " | 2.28 " | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | Isolated Module | 5 V | 50 W | 10 A | 75 V | 36 V | Active Low Enable |
OmniOn Power™ | Through Hole | 91 % | 8-DIP Module 1/8 Brick | 2250 VDC | 12.2 mm | 57.9 mm | 0.9 in | 22.8 mm | 0.48 " | 2.28 " | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | Isolated Module | 5 V | 50 W | 10 A | 75 V | 36 V | Active Low Enable |
 OmniOn Power™ | Through Hole | 91 % | 8-DIP Module 1/8 Brick | 2250 VDC | 8.5 mm | 57.9 mm | 0.9 in | 22.8 mm | 0.34 in | 2.28 " | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | Isolated Module | 5 V | 50 W | 10 A | 75 V | 36 V | Active High Enable |
OmniOn Power™ | Through Hole | 91 % | 8-DIP Module | 2250 VDC | 7.6 mm | 57.9 mm | 0.9 in | 22.8 mm | 0.3 in | 2.28 " | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | Isolated Module | 5 V | 50 W | 10 A | 75 V | 36 V | Active Low Enable |
OmniOn Power™ | Through Hole | 91 % | 8-DIP Module | 2250 VDC | 7.6 mm | 57.9 mm | 0.9 in | 22.8 mm | 0.3 in | 2.28 " | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | Isolated Module | 5 V | 50 W | 10 A | 75 V | 36 V | Active Low Enable |
OmniOn Power™ | Through Hole | 92.5 % | 8-DIP Module 1/8 Brick | 2250 VDC | 8.9 mm | 58.4 mm | 0.9 in | 22.9 mm | 0.35 in | 2.3 in | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | Isolated Module | 12 V | 120 W | 10 A | 75 V | 36 V | Active Low Enable |
OmniOn Power™ | Through Hole | 91 % | 8-DIP Module 1/8 Brick | 2250 VDC | 8.5 mm | 57.9 mm | 0.9 in | 22.8 mm | 0.34 in | 2.28 " | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off UVLO | 85 °C | -40 C | Isolated Module | 5 V | 50 W | 10 A | 75 V | 36 V | Active High Enable |
OmniOn Power™ | Through Hole | 92.5 % | 8-DIP Module 1/8 Brick | 2250 VDC | 8.9 mm | 58.4 mm | 0.9 in | 22.9 mm | 0.35 in | 2.3 in | ITE (Commercial) | 1 | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | Isolated Module | 12 V | 120 W | 10 A | 75 V | 36 V | Active Low Enable |
