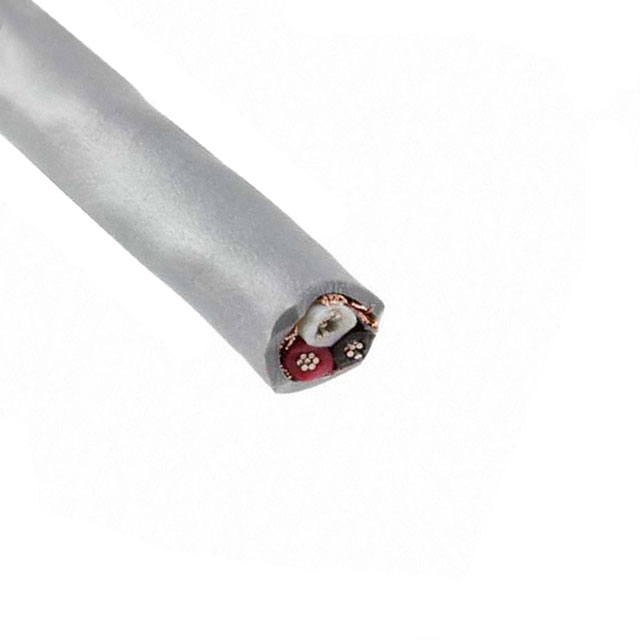

1737C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 3 CONDUCTOR, 22 AWG, 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Usage | Conductor Insulation | Length | Length | Cable Type | Shield Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 75 % | Communication Control | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Conductor | Braid | Slate | 5.06 mm | 0.199 in | 22 AWG | 3 | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 30 AWG | 7 | Copper Tinned | 80 °C | -20 ░C | 300 VDC | ||
 ALPHA WIRE | Copper Bare | 75 % | Communication Control | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Braid | Slate | 5.06 mm | 0.199 in | 22 AWG | 3 | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 30 AWG | 7 | Copper Tinned | 80 °C | -20 ░C | 300 VDC | 100 ft | 30.5 m | ||
ALPHA WIRE | Copper Bare | 75 % | Communication Control | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Conductor | Braid | Slate | 5.06 mm | 0.199 in | 22 AWG | 3 | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 30 AWG | 7 | Copper Tinned | 80 °C | -20 ░C | 300 VDC |
