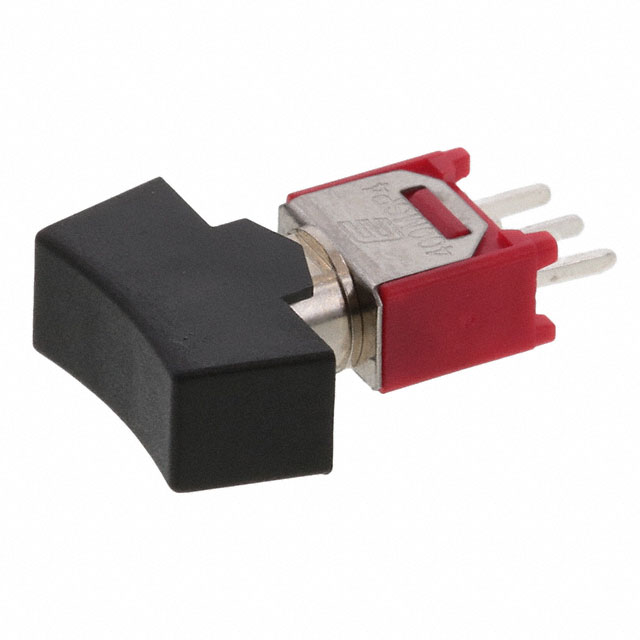

400MSP4 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPDT 3A 120V
| Part | Mechanical Life | Electrical Life | Switch Function | Actuator Type | Voltage Rating - AC | Circuit | Color - Actuator/Cap | Features | Termination Style | Mounting Type | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Approval Agency | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 30000 Cycles | Mom-Off-Mom | Concave (Curved) | 120 V | SPDT | Black | Epoxy Sealed Terminals | PC Pin | Through Hole | 3 A | 7.11 mm | 15.75 mm | 85 °C | -30 ░C | No Marking | cULus | 28 V |
 E-Switch | 30000 Steps | 30000 Cycles | Mom-Off-Mom | Concave (Curved) | 20 V | SPDT | Black | Epoxy Sealed Terminals | PC Pin | Right Angle Through Hole | 0.4 VA | 85 °C | -30 ░C | No Marking | cULus | 20 V | ||
E-Switch | 30000 Steps | 30000 Cycles | Mom-Off-Mom | Concave (Curved) | 120 V | SPDT | Black | Epoxy Sealed Terminals | PC Pin | Right Angle Through Hole Vertical | 3 A | 8.89 mm | 15.75 mm | 85 °C | -30 ░C | No Marking | cULus | 28 V |
E-Switch | 30000 Steps | 30000 Cycles | Mom-Off-Mom | Concave (Curved) | 20 V | SPDT | Black | Epoxy Sealed Terminals | Solder Lug | Flange Panel Mount | 0.4 VA | 8.89 mm | 15.75 mm | 85 °C | -30 ░C | No Marking | cULus | 20 V |
E-Switch | 30000 Steps | 30000 Cycles | Mom-Off-Mom | Concave (Curved) | 120 V | SPDT | Black | Epoxy Sealed Terminals | Solder Lug | Flange Panel Mount | 3 A | 8.89 mm | 15.75 mm | 85 °C | -30 ░C | No Marking | cULus | 28 V |
