745-134 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 134POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Type	Mounting Type	Number of Positions	Gender	Contact Finish	Color	Pitch	Pitch	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]
EDAC Inc. 745-134-560-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever Make Before Break	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
EDAC Inc. 745-134-525-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
EDAC Inc. 745-134-522-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
EDAC Inc. 745-134-541-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
EDAC Inc. 745-134-541-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
EDAC Inc. 745-134-560-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever Make Before Break	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
EDAC Inc. 745-134-520-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2

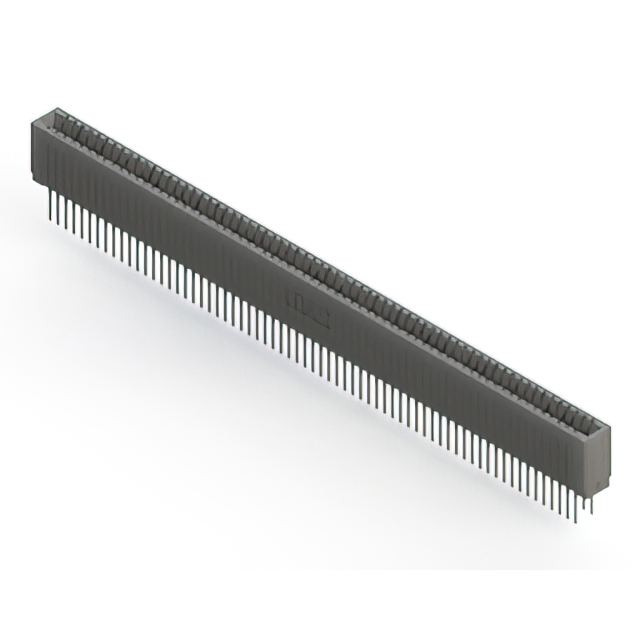

EDAC Inc. 745-134-522-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2

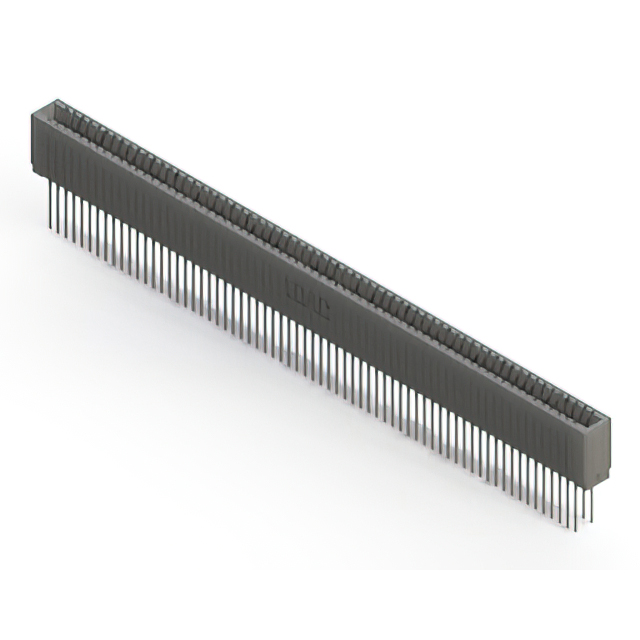

EDAC Inc. 745-134-540-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	67	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Through Hole	134	Female	Gold	Black	0.1 "	2.54 mm	Dual	-40 C	105 ░C	2
