LP0115C Series
Manufacturer: NKK Switches
Beta
⌘K

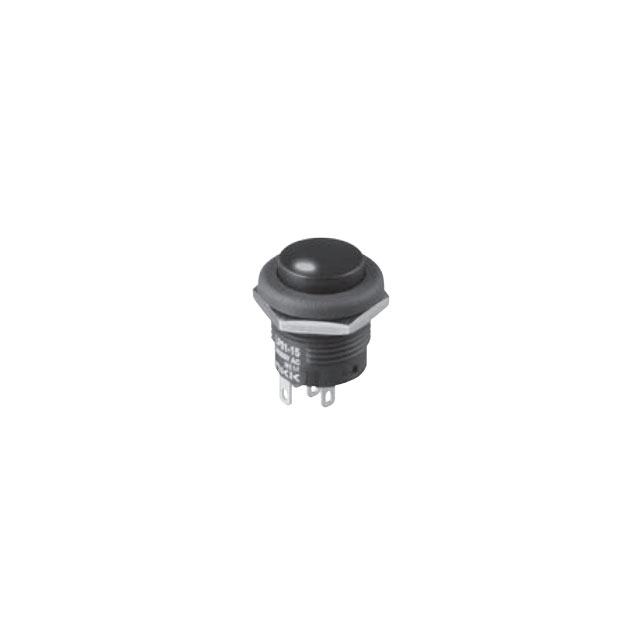

SWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 3A 250VAC 30VDC MOMENTARY PANEL MOUNT QUICK CONNECT/SOLDER LUG
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Mounting Type | Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Panel Cutout Dimensions [diameter] | Termination Style | Color - Actuator/Cap | Actuator Type | Circuit | Current Rating (Amps) | Switch Function | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

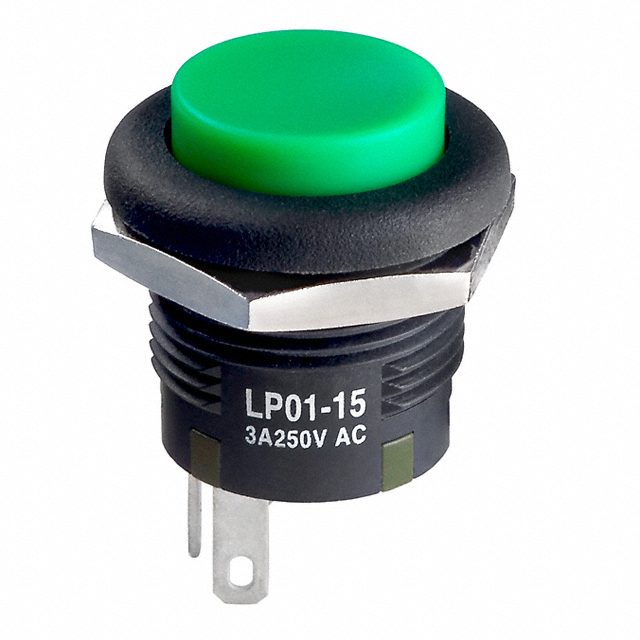

 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Snap-In | Standard | 125 V | -25 °C | 70 °C | No Marking | 17.3 mm | Solder Quick Connect - 0.110" (2.8mm) | Green | Button Round | SPDT | 3 A | On-Mom | ||

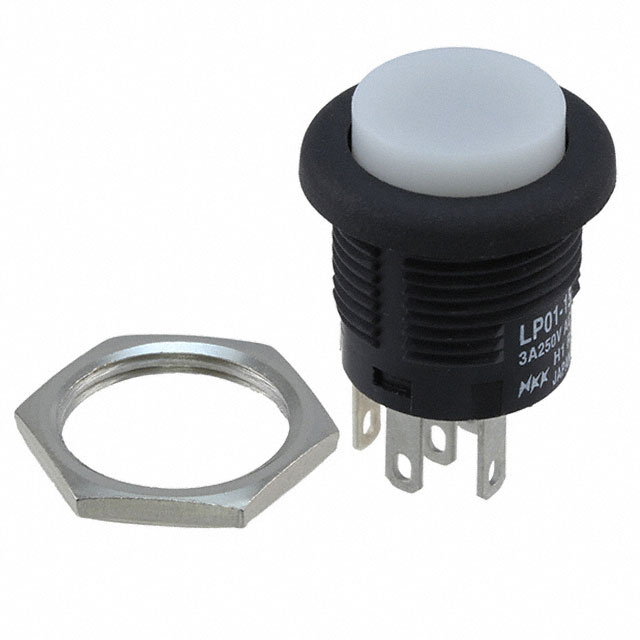

 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Illuminated Standard | 125 V | -10 °C | 50 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | White | Button Round | SPDT | 3 A | On-Mom | 2.1 VDC | Green LED |
 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Illuminated Standard | 125 V | -10 °C | 50 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | White | Button Round | SPDT | 3 A | On-Mom | 2 VDC | Amber LED |

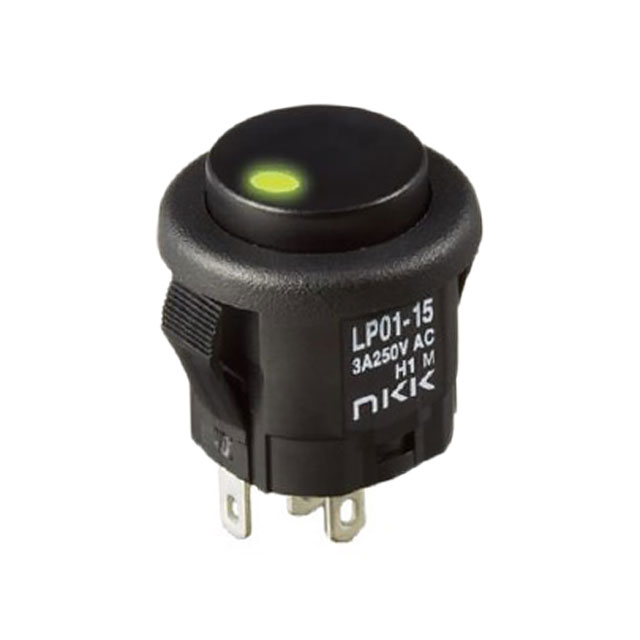

 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Illuminated Standard | 125 V | -10 °C | 50 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | Black | Button Round | SPDT | 3 A | On-Mom | 2.1 VDC | Green LED |

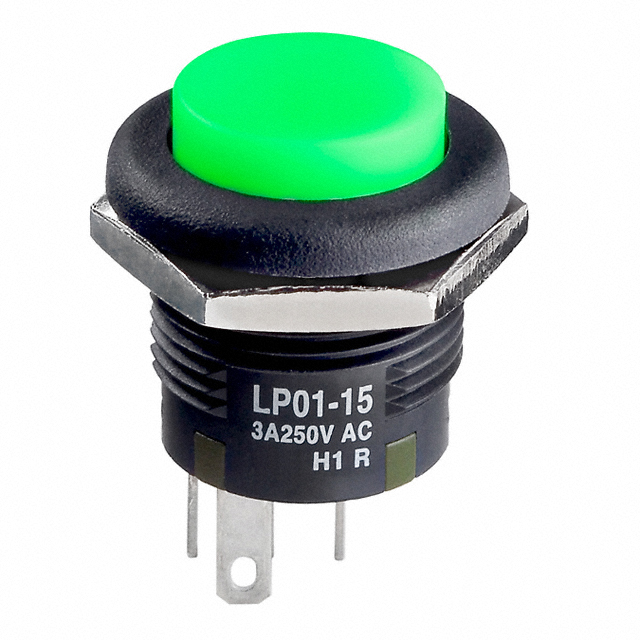

 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Standard | 125 V | -25 °C | 70 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | Green | Button Round | SPDT | 3 A | On-Mom | ||

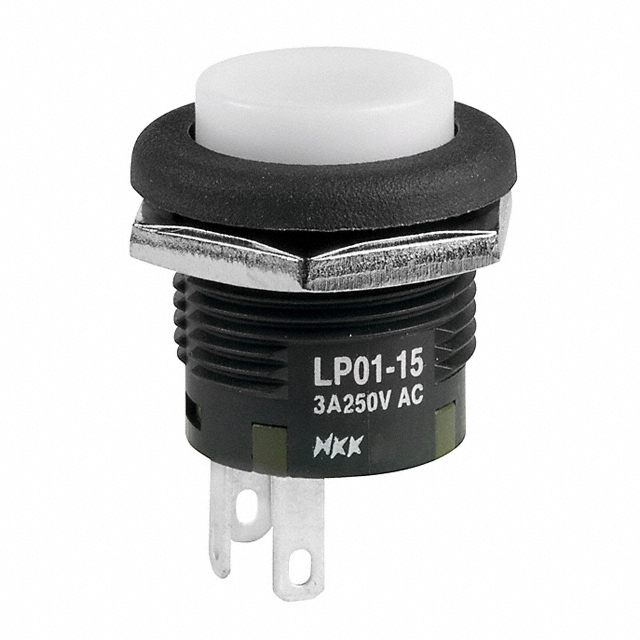

 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Snap-In | Standard | 125 V | -25 °C | 70 °C | No Marking | 17.3 mm | Solder Quick Connect - 0.110" (2.8mm) | White | Button Round | SPDT | 3 A | On-Mom | ||
 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Snap-In | Standard | 125 V | -25 °C | 70 °C | No Marking | 17.3 mm | Solder Quick Connect - 0.110" (2.8mm) | White | Button Round | SPDT | 3 A | On-Mom | ||

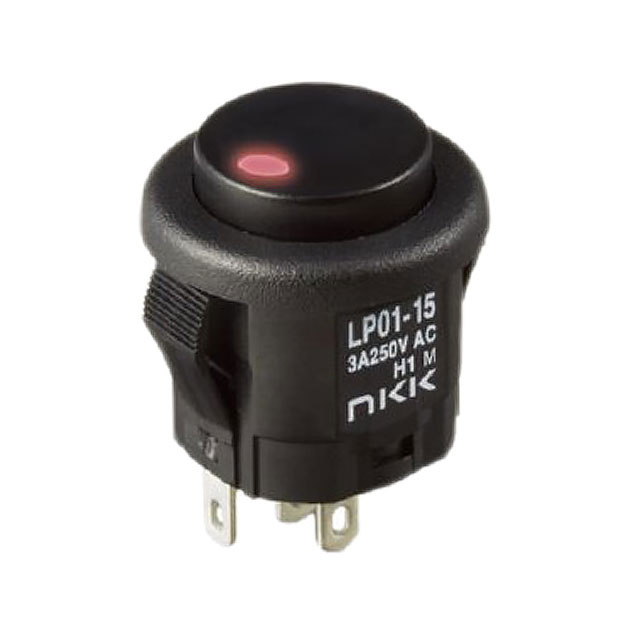

 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Illuminated Standard | 125 V | -10 °C | 50 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | Black | Button Round | SPDT | 3 A | On-Mom | 2.05 VDC | LED Red |
 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Standard | 125 V | -25 °C | 70 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | Red | Button Round | SPDT | 3 A | On-Mom | ||
 NKK Switches | 50000 Cycles | 500000 Cycles | 30 V | Panel Mount Front | Illuminated Standard | 125 V | -10 °C | 50 °C | No Marking | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | White | Button Round | SPDT | 3 A | On-Mom | 2.05 VDC | LED Red |
