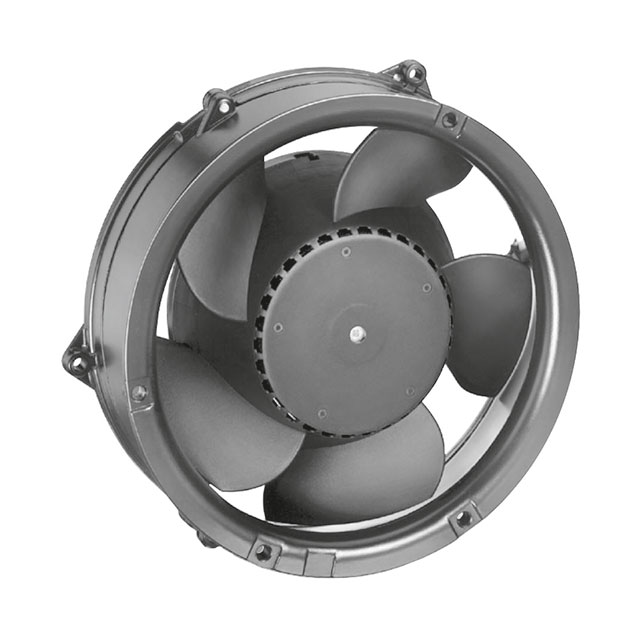

DV6224 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN: DC; DIAGONAL; 24VDC; Ø172X51MM; 540M3/H; 63DBA; BALL; 4300RPM
| Part | Material - Blade | Material - Frame | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Noise | Features | Fan Type | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Approval Agency | Bearing Type | Width [y] | Power (Watts) | Weight | Weight | RPM | Size / Dimension [diameter] | Size / Dimension | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | 180000 Hrs | 16 VDC | 28 V | 63 dB | Speed Sensor (Tach) | Tubeaxial | 24 VDC | -4 °F | 167 °F | 3 Wire Leads | CE CSA UL VDE | Ball | 50.8 mm | 40 W | 1.8 lbs | 816.5 g | 4300 RPM | 171.5 mm | Round | 317.8 CFM | 8.9 m³/min | ||
ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | Aluminum | 65000 Hrs | 16 VDC | 36 VDC | Tubeaxial | 24 VDC | -20 ░C | 60 °C | 2 Wire Leads | CSA UL VDE | Ball | 50.8 mm | 91 W | 1.8 lbs | 816.5 g | 5500 RPM | 171.5 mm | Round | 412 CFM | 11.54 m³/min | 60 °C | -4 °F |
