SM531 Series
Manufacturer: ANYSOLAR Ltd
Beta
⌘K
MONOCRYST SOLAR CELL 1.37W 8.29V
| Part | Power (Watts) - Max [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current @ Pmpp | Voltage @ Pmpp | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Open Circuit | Current - Short Circuit (Isc) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

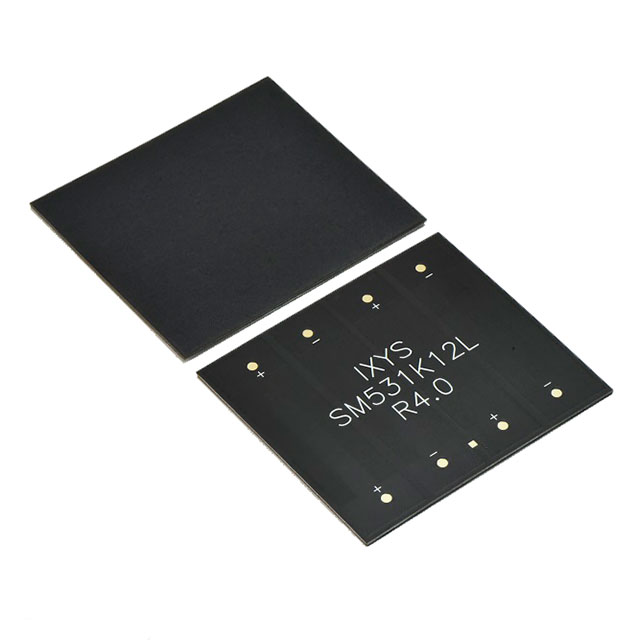

 ANYSOLAR Ltd | 1.37 W | Cells | 90 °C | -40 C | 205 mA | 6.7 V | Monocrystalline | 0.079 in | 90 mm | 3.543 in | 2 mm | 79 mm | 3.11 " | 8.29 V | 218 mA |

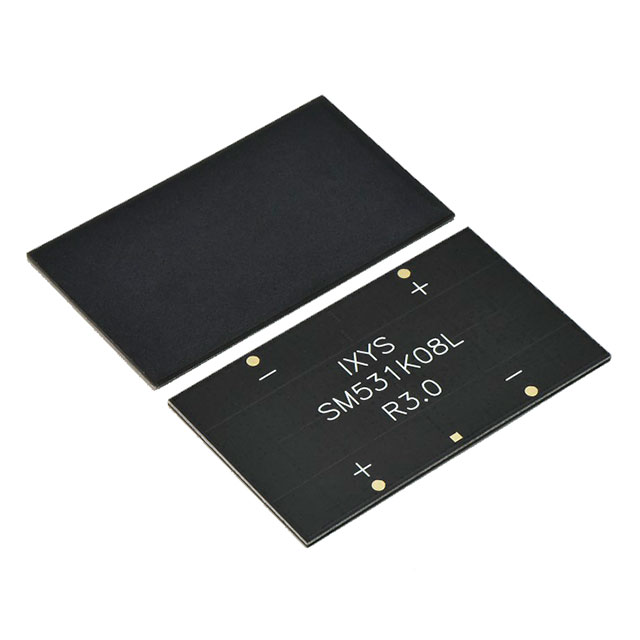

 ANYSOLAR Ltd | 913 mW | Cells | 90 °C | -40 C | 205 mA | 4.46 V | Monocrystalline | 0.071 in | 89 mm | 3.504 in | 1.8 mm | 52 mm | 2.047 in | 5.53 V | 218 mA |
