09120022 Series

Manufacturer: HARTING

Catalog

HAN BRID-MALE-C CU-BUS-MODUL(G) ROHS COMPLIANT: NA

Part	Color	Housing Material	Gender	Number of Positions	Termination Style	Voltage Rating	Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size	Connector Type	Contact Finish	Contact Material	Material Flammability Rating	Number of Positions

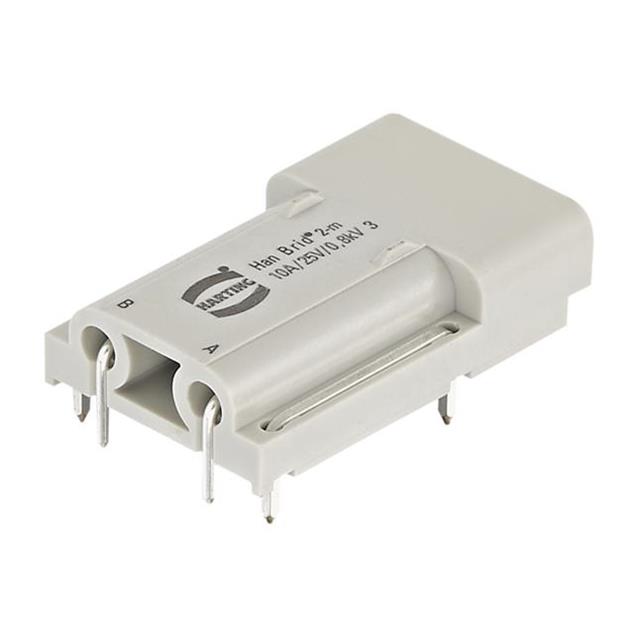

HARTING 09120022611	Gray	Polycarbonate (PC)	Male	2	Crimp	50 V	Han® D	10 A	125 °C	-40 C	3 A	Module
HARTING 09120022653	Gray	Polycarbonate (PC)	Male	2	Screw	400 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0
HARTING 09120022754	Gray	Polycarbonate (PC)	Female	2	Screw	600 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0

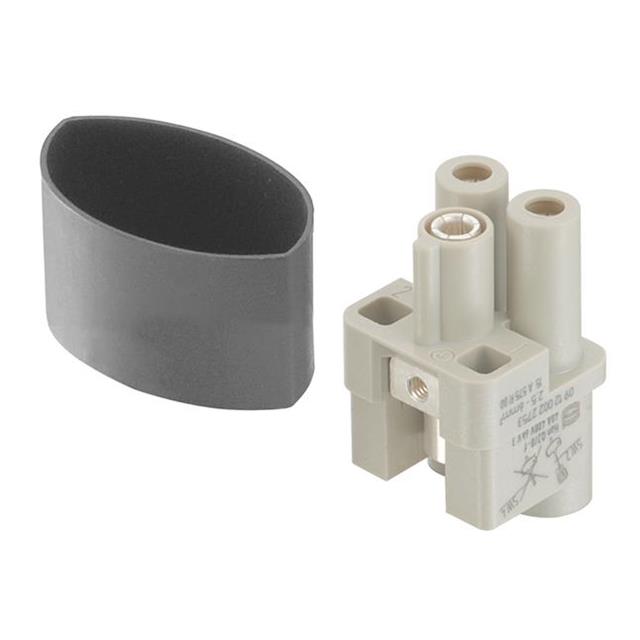

HARTING 09120022752	Gray	Polycarbonate (PC)	Female		Screw	600 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0	2+Ground
HARTING 09120022656	Gray	Polycarbonate (PC)	Male	2	Screw	830 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0

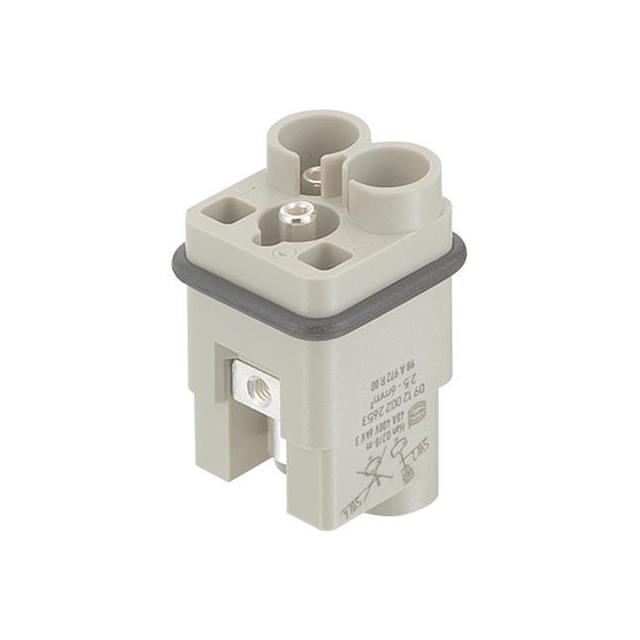

HARTING 09120022651	Gray	Polycarbonate (PC)	Male		Screw	400 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0	2+Ground

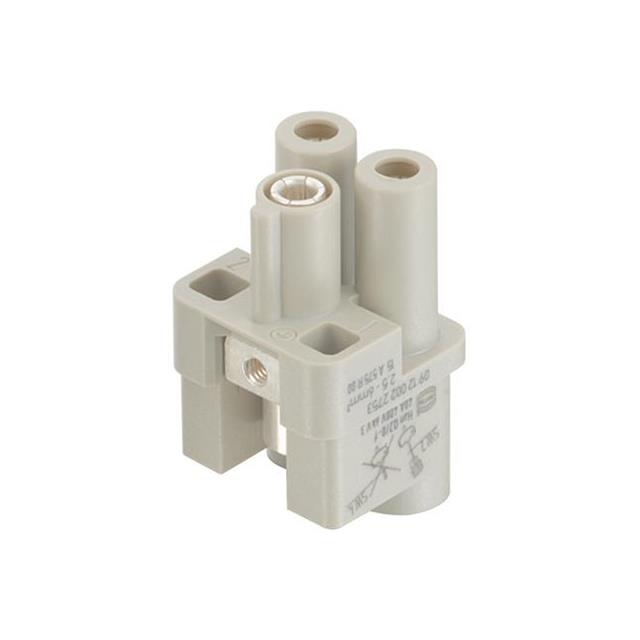

HARTING 09120022751	Gray	Polycarbonate (PC)	Female		Screw	400 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0	2+Ground
HARTING 09120022654	Gray	Polycarbonate (PC)	Male	2	Screw	600 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0
HARTING 09120022756	Gray	Polycarbonate (PC)	Female	2	Screw	830 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0

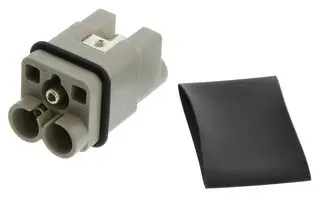

HARTING 09120022652	Gray	Polycarbonate (PC)	Male		Screw	600 V		40 A	125 °C	-40 C	3 A	Insert	Silver	Copper Alloy	UL94 V-0	2+Ground
