1825093 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN DIP SOCKET SKT 6 POS 2.54MM SOLDER ST THRU-HOLE TUBE

Part	Mounting Type	Contact Finish - Mating	Contact Material - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Termination	Material Flammability Rating	Housing Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Termination Post Length [x]	Termination Post Length [x]	Contact Resistance	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Number of Positions or Pins (Grid)

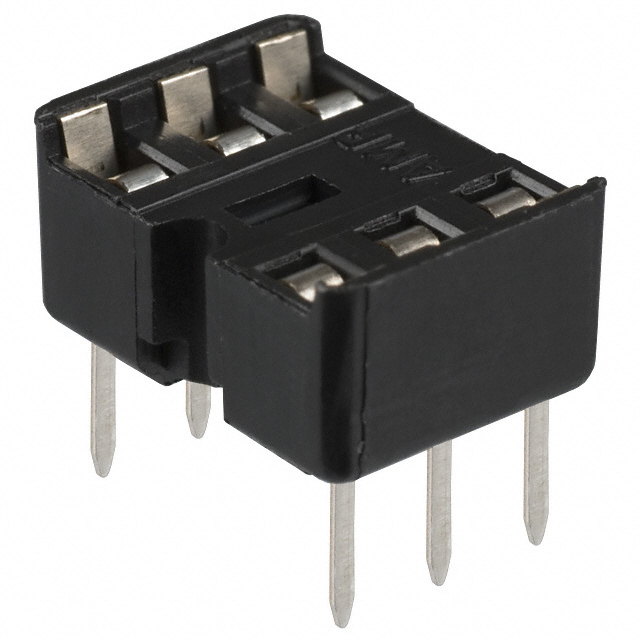

TE Connectivity Raychem Cable Protection 1825093-1	Through Hole	Gold	Phosphor Bronze	Closed Frame	15 µin	0.38 µm	2.54 mm	0.1 in	Solder	UL94 V-0	Thermoplastic Glass Filled	0.1 in	2.54 mm	Gold	2	6	3	-55 °C	125 °C	0.3 "	7.62 mm	DIP	0.128 in	3.24 mm	30 mOhm	15 µin	0.38 µm	Phosphor Bronze

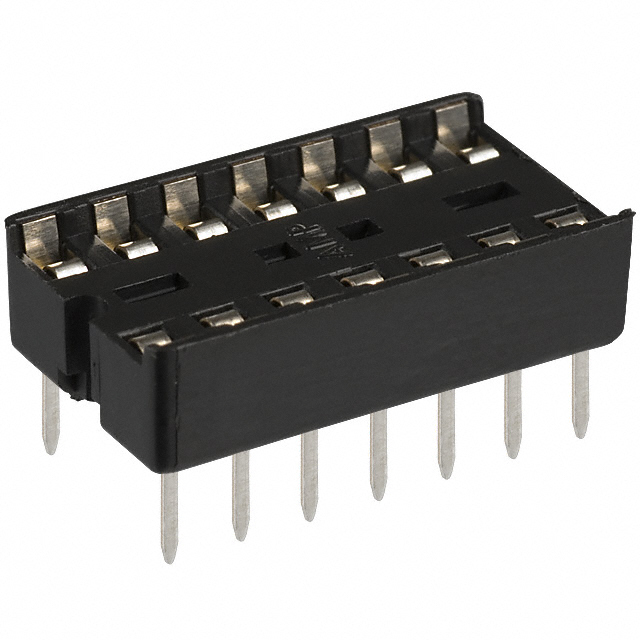

TE Connectivity Raychem Cable Protection 1825093-3	Through Hole	Gold	Phosphor Bronze	Closed Frame	15 µin	0.38 µm	2.54 mm	0.1 in	Solder	UL94 V-0	Thermoplastic Glass Filled	0.1 in	2.54 mm	Gold				-55 °C	125 °C	0.3 "	7.62 mm	DIP	0.128 in	3.24 mm	30 mOhm	15 µin	0.38 µm	Phosphor Bronze	14

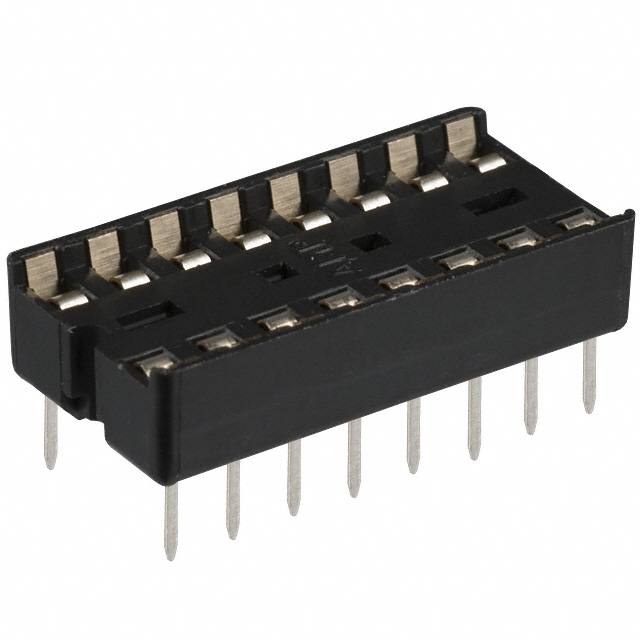

TE Connectivity Raychem Cable Protection 1825093-4	Through Hole	Gold	Phosphor Bronze	Closed Frame	15 µin	0.38 µm	2.54 mm	0.1 in	Solder	UL94 V-0	Thermoplastic Glass Filled	0.1 in	2.54 mm	Gold				-55 °C	125 °C	0.3 "	7.62 mm	DIP	0.128 in	3.24 mm	30 mOhm	15 µin	0.38 µm	Phosphor Bronze	16
TE Connectivity Raychem Cable Protection 1-1825093-1	Through Hole	Gold	Beryllium Copper	Closed Frame	30 Áin	0.76 Ám	2.54 mm	0.1 in	Solder	UL94 V-0	Thermoplastic Glass Filled	0.1 in	2.54 mm	Gold	2	6	3	-55 °C	125 °C	0.3 "	7.62 mm	DIP	0.128 in	3.24 mm	30 mOhm	30 µin	0.76 µm	Beryllium Copper
