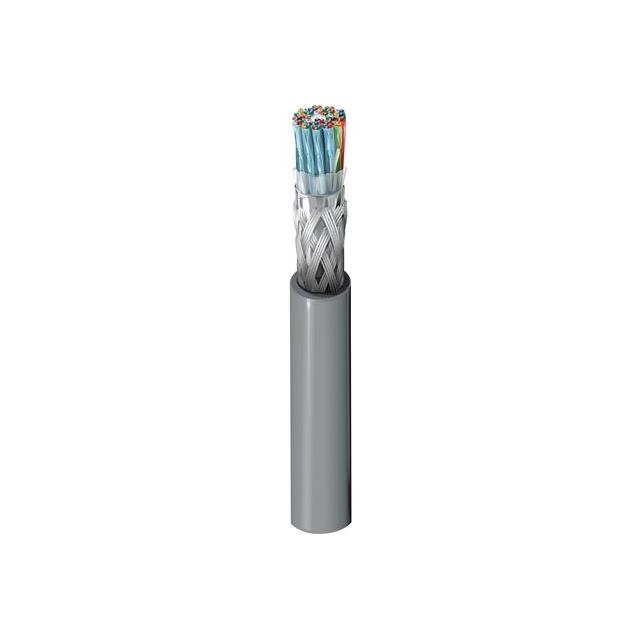

8175 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 30COND 24AWG
| Part | Shield Coverage | Shield Material | Voltage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket Color | Usage | Conductor Material | Shield Type | Cable Type | Length | Length | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Drain Wire | 1.651 mm | 0.065 in | Chrome | Computer | Copper Tinned | Braid Foil | Multi-Pair | 304.8 m | 1000 ft | UL Style 2493 | 7 | 32 AWG | 30 | 24 AWG | Poly-Vinyl Chloride (PVC) | Foam Polyethylene (FPE) | 60 °C | -40 C |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Drain Wire | 1.651 mm | 0.065 in | Chrome | Computer | Copper Tinned | Braid Foil | Multi-Pair | 152.4 m | 500 ft | UL Style 2493 | 7 | 32 AWG | 30 | 24 AWG | Poly-Vinyl Chloride (PVC) | Foam Polyethylene (FPE) | 60 °C | -40 C |
