KAE04 Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Length	Length	Electrical Life	Pitch	Pitch	Actuator Type	Contact Material	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Circuit	Voltage Rating	Contact Finish	Features	Height Above Board	Height Above Board

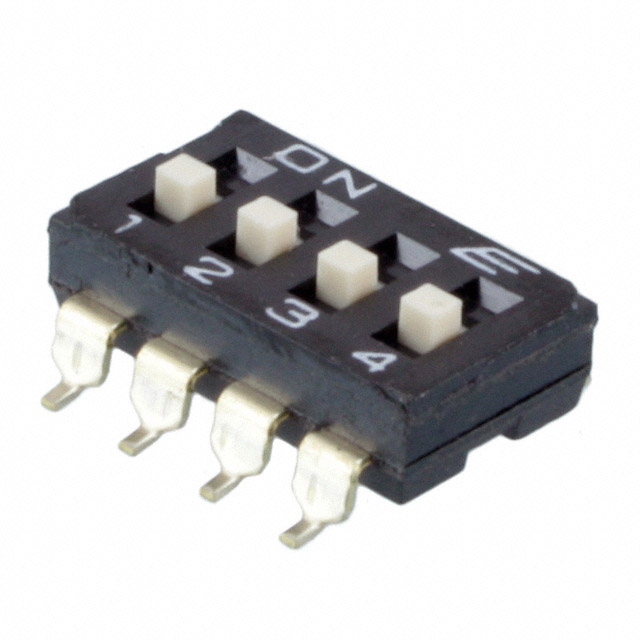

E-Switch KAE04LGGR	2000 Cycles	11.2 mm	0.441 in	2000 Steps	2.54 mm	0.1 "	Slide (Standard)	Copper	Raised	85 °C	-20 ░C	Gull Wing	25 mA	4.45 mm	0.175 in	4	Surface Mount	SPST	24 VDC	Gold
E-Switch KAE04TAGT	2000 Cycles	11.2 mm	0.441 in	2000 Steps	2.54 mm	0.1 "	Slide (Standard)	Copper	Flush Recessed	85 °C	-20 ░C	PC Pin	25 mA	3.6 mm	0.142 in	4	Through Hole	SPST	24 VDC	Gold	Tape Seal
E-Switch KAE04LAGT	2000 Cycles	11.2 mm	0.441 in	2000 Steps	2.54 mm	0.1 "	Slide (Standard)	Copper	Raised	85 °C	-20 ░C	PC Pin	25 mA			4	Through Hole	SPST	24 VDC	Gold		0.169 in	4.3 mm

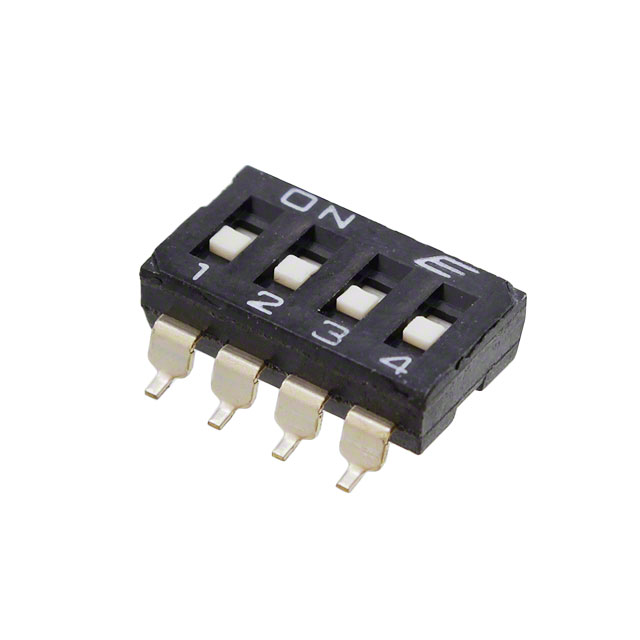

E-Switch KAE04SGGT	2000 Cycles	11.2 mm	0.441 in	2000 Steps	2.54 mm	0.1 "	Slide (Standard)	Copper	Flush Recessed	85 °C	-20 ░C	Gull Wing	25 mA	3.75 mm	0.148 in	4	Surface Mount	SPST	24 VDC	Gold
