316-006 Series
Manufacturer: EDAC Inc.
Catalog

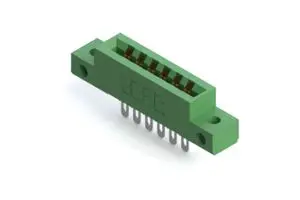

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Termination Rows | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Number of Rows | Contact Material | Contact Type | Number of Positions | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Gender | Color | Read Out | Number of Positions/Bay/Row [custom] | Termination | Mounting Type | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Green | Dual | 6 | Solder Eyelet(s) | ||||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Green | Dual | 6 | Solder | Panel Mount Through Hole | |||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Green | Dual | 6 | Solder | Panel Mount Through Hole | Card Guides | ||||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Green | Dual | 6 | Solder | Panel Mount Through Hole | |||||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Green | Dual | 6 | Solder | Through Hole | 10 Áin | 0.25 Ám | |
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Green | Dual | 6 | Solder | Panel Mount Through Hole | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Green | Dual | 6 | Solder Eyelet(s) | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Green | Dual | 6 | Solder Eyelet(s) | ||||||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Green | Dual | 6 | Solder Eyelet(s) | ||||||
EDAC Inc. | 1 | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 12 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Green | Dual | 6 | Solder | Panel Mount Through Hole | 10 Áin | 0.25 Ám |
