LXZ1 Series

Manufacturer: Lumileds

Catalog

LED UNI-COLOR RED ORANGE 77LM CHIP LED 2-PIN SMD T/R

Part	Color	Mounting Type	Supplier Device Package	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Wavelength	Height - Seated (Max)	Height - Seated (Max) [Max]	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Current - Test	Temperature - Test	Current - Max [Max]	Thermal Resistance of Package	CRI (Color Rendering Index)	CCT (K)	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max]	Wavelength [Min]	Wavelength [Max]
Lumileds LXZ1-PH02	Red-Orange	Surface Mount	0705	145 °	1.3 mm	1.7 mm	0.051 in	0.067 in	47 lm	42 lm/W	619 nm	0.96 mm	0.038 "	2.2 V	0705	1713 Metric	500 mA	85 °C	1 A

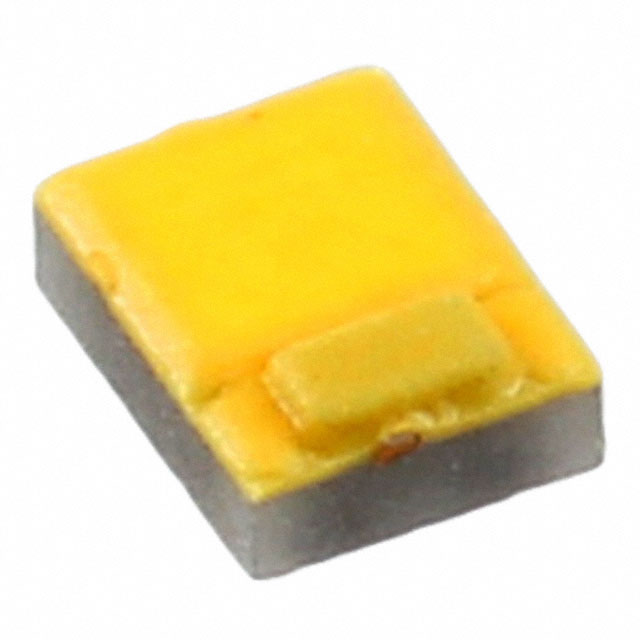

Lumileds LXZ1-2780-5	Warm White	Surface Mount	SMD	120 °	1.3 mm	1.7 mm	0.051 in	0.067 in		82 lm/W				2.8 V	0705	1713 Metric	500 mA		1 A	3 °C/W	80	5-Step MacAdam Ellipse	2700 K	0.79 mm	0.031 in	115 lm
Lumileds LXZ1-PD02	Red	Surface Mount	0705	145 °	1.3 mm	1.7 mm	0.051 in	0.067 in	43 lm	39 lm/W		0.96 mm	0.038 "	2.2 V	0705	1713 Metric	500 mA	85 °C	1 A
Lumileds LXZ1-3580-3	Warm White	Surface Mount	SMD	120 °	1.3 mm	1.7 mm	0.051 in	0.067 in		89 lm/W				2.8 V	0705	1713 Metric	500 mA		1 A	3 °C/W	80	3-Step MacAdam Ellipse	3500 K	0.79 mm	0.031 in	124 lm
Lumileds LXZ1-PX01	Lime	Surface Mount	SMD	125 °	1.3 mm	1.7 mm	0.051 in	0.067 in	175 lm	123 lm/W	568 nm			2.85 V	0705	1713 Metric	500 mA	85 °C	700 mA	5 °C/W					0.026 in		0.66 mm	566 nm	569 nm

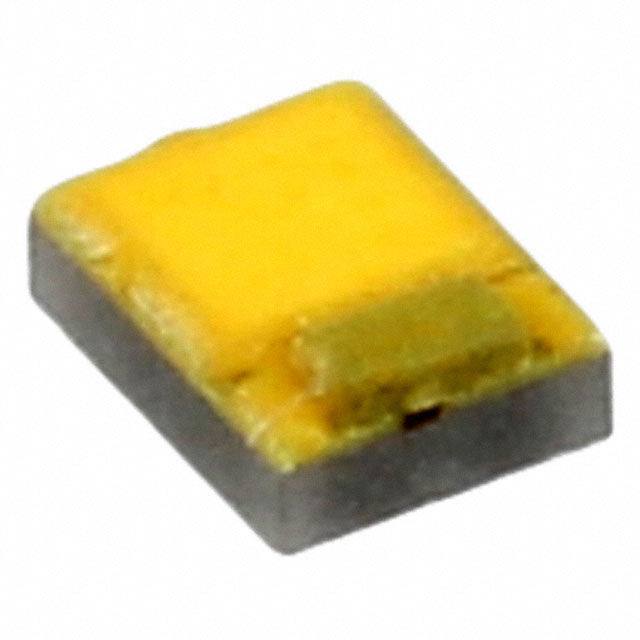

Lumileds LXZ1-4080-5	Neutral White	Surface Mount	SMD	120 °	1.3 mm	1.7 mm	0.051 in	0.067 in		93 lm/W				2.8 V	0705	1713 Metric	500 mA		1 A	3 °C/W	80		4000 K	0.79 mm	0.031 in	130 lm
Lumileds LXZ1-PL01-0064	Amber	Surface Mount	SMD	145 °	1.3 mm	1.7 mm	0.051 in	0.067 in		48 lm/W	588 nm	0.96 mm	0.038 "	2.15 V	0705	1713 Metric	500 mA	25 °C	700 mA
