B2 3/16 Series

Manufacturer: Sumitomo Electric Interconnect Products, Inc.

Catalog

HEATSHRINK 3/16" BLACK 1=1PC

Part	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Features	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Shrink Temperature	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Spool Size [x]	Spool Size [x]	Length
Sumitomo Electric Interconnect Products, Inc. B2 3/16 BLACK 4FT	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant UV Resistant	4 ft	1.22 m	0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Black	2.4 mm	0.094 in

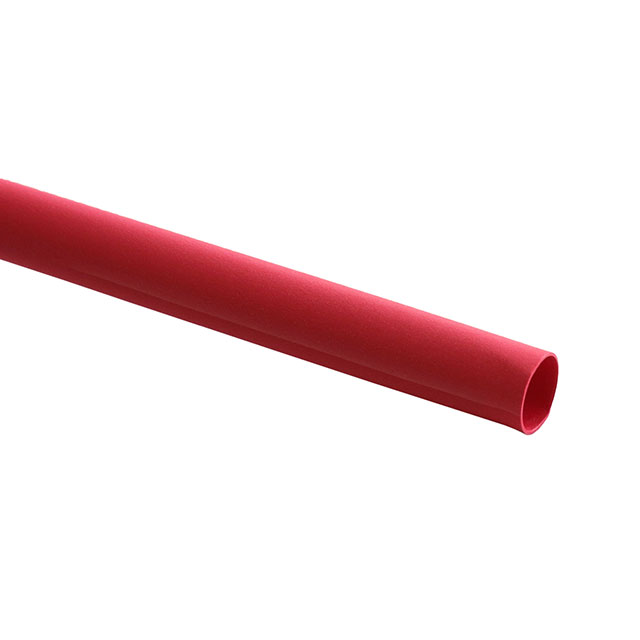

Sumitomo Electric Interconnect Products, Inc. B2 3/16 RED 4FT	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant	4 ft	1.22 m	0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Red	2.4 mm	0.094 in
Sumitomo Electric Interconnect Products, Inc. B2 3/16 RED SPL	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant			0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Red	2.4 mm	0.094 in	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/16 YELLOW 4FT	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant	4 ft	1.22 m	0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Yellow	2.4 mm	0.094 in
Sumitomo Electric Interconnect Products, Inc. B2 3/16 YELLOW SPL	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant			0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Yellow	2.4 mm	0.094 in	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/16 WHITE 4FT	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant	4 ft	1.22 m	0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	White	2.4 mm	0.094 in
Sumitomo Electric Interconnect Products, Inc. B2 3/16 GREEN 4FT	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant	4 ft	1.22 m	0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Green	2.4 mm	0.094 in
Sumitomo Electric Interconnect Products, Inc. B2 3/16 GREEN SPL	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant			0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Green	2.4 mm	0.094 in	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/16 WHITE SPL	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant			0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	White	2.4 mm	0.094 in	200 ft	61 m	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/16 BLACK SPL	1	2	-55 C	135 °C	0.51 mm	0.02 in	Tubing Flexible	Flame Retardant UV Resistant			0.205 in	5.21 mm	Polyolefin (PO) Irradiated	90 °C	Black	2.4 mm	0.094 in	200 ft	61 m	Enter Number of Feet in Order Quantity
