005036 Series

Manufacturer: Molex

Catalog

CONN PLUG HSG 2POS

Part	Note	Fastening Type	Mounting Type	Connector Type	Contact Type	Color	Contact Termination	Row Spacing	Row Spacing	Number of Rows [custom]	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Row Spacing - Mating	Row Spacing - Mating	Style	Pitch - Mating	Pitch - Mating	Contact Material	Termination	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Insulation Color	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Finish - Post	Features	Insulation Material	Contact Length - Post	Contact Length - Post	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Voltage Rating	Number of Rows	Insulation Height
Molex 0050361734	Contacts Not Included	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Black	Crimp	0.165 in	4.2 mm	2	2
Molex 0050361702		Locking Ramp	Through Hole	Header	Male Pin					2	4	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.165 in	4.2 mm	Board to Cable/Wire	0.165 in	4.2 mm	Brass	Solder	UL94 V-0	12.8 mm	0.504 "	All	Black	Square	100 çin	2.54 çm	Shrouded - 4 Wall	Tin	Board Lock	Nylon Polyamide (PA)	0.138 in	3.5 mm
Molex 0050361668	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Receptacle	Female Socket	Black	Crimp	0.165 in	4.2 mm	2	18																									0.165 in	4.2 mm
Molex 0050361737	Contacts Not Included	Locking Ramp	Panel Mount	Plug	Male Pin	Black	Crimp	0.165 in	4.2 mm	2	8																									0.165 in	4.2 mm
Molex 0050361868		Locking Ramp	Right Angle Through Hole	Header	Male Pin					2	24	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.165 in	4.2 mm	Board to Cable/Wire	0.165 in	4.2 mm	Brass Alloy	Solder	UL94 V-0		0.38 in	All	Natural	Square	100 çin	2.54 çm	Shrouded - 4 Wall	Tin	Board Lock	Nylon 6/6 Polyamide (PA66)	0.14 in	3.56 mm			-40 C	105 ░C	Varies by Wire Gauge	9.65 mm	600 VAC
Molex 0050361747		Locking Ramp	Right Angle Through Hole	Header	Male Pin						5	2.54 µm	100 µin	General Purpose Industrial Telecommunications			Board to Cable/Wire	0.165 in	4.2 mm	Brass	Solder	UL94 V-0	12.8 mm	0.504 "	All	Black	Square	100 çin	2.54 çm	Shrouded - 4 Wall	Tin	Board Lock	Nylon Polyamide (PA)	0.138 in	3.5 mm								1
Molex 0050361893	Contacts Not Included	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Black	Crimp																													0.165 in	4.2 mm						1

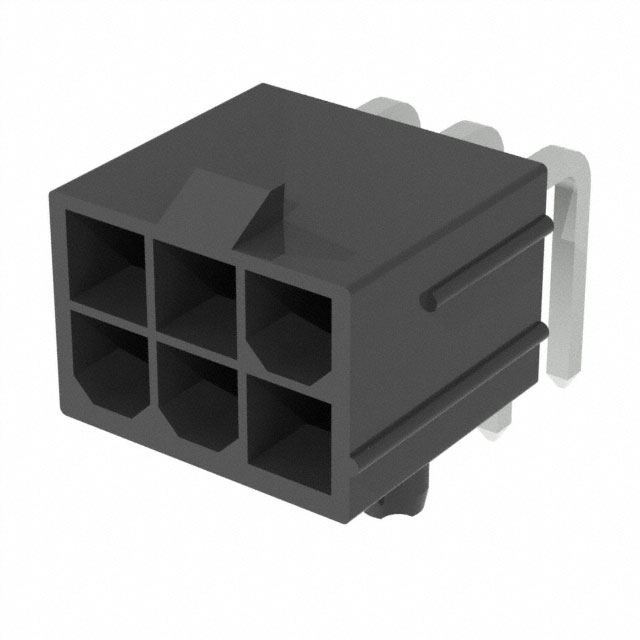

Molex 0050362377		Locking Ramp	Right Angle Through Hole	Header	Male Pin					2	6	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.165 in	4.2 mm	Board to Cable/Wire	0.165 in	4.2 mm	Brass	Solder	UL94 V-0			All	Black	Square	100 çin	2.54 çm	Shrouded - 4 Wall	Tin	Board Lock	Nylon Polyamide (PA)	0.142 in	3.6 mm						9.6 mm			0.378 in
Molex 0050361683		Locking Ramp	Through Hole	Header	Male Pin					2	8	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.165 in	4.2 mm	Board to Cable/Wire	0.165 in	4.2 mm	Brass	Solder	UL94 V-0	12.8 mm	0.504 "	All	Black	Square	100 çin	2.54 çm	Shrouded - 4 Wall	Tin		Nylon Polyamide (PA)	0.138 in	3.5 mm

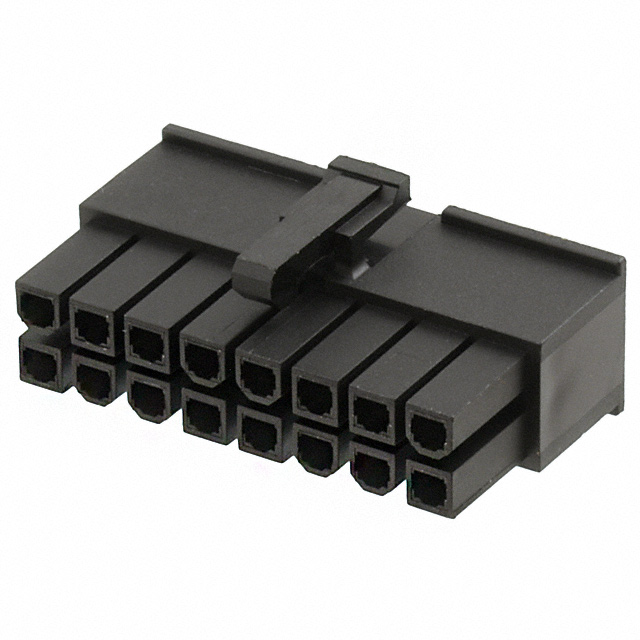

Molex 0050361669	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Receptacle	Female Socket	Black	Crimp	0.165 in	4.2 mm	2	16																									0.165 in	4.2 mm
