BRPY1211 Series

Catalog

LED GREEN/RED DIFFUSED SMD

Part	Package / Case	Color	Wavelength - Dominant	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Viewing Angle	Lens Color	Current - Test [custom]	Current - Test [custom]	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Mounting Type	Configuration	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Lens Size [x]	Lens Size [y]	Millicandela Rating	Supplier Device Package	Height (Max) [z]

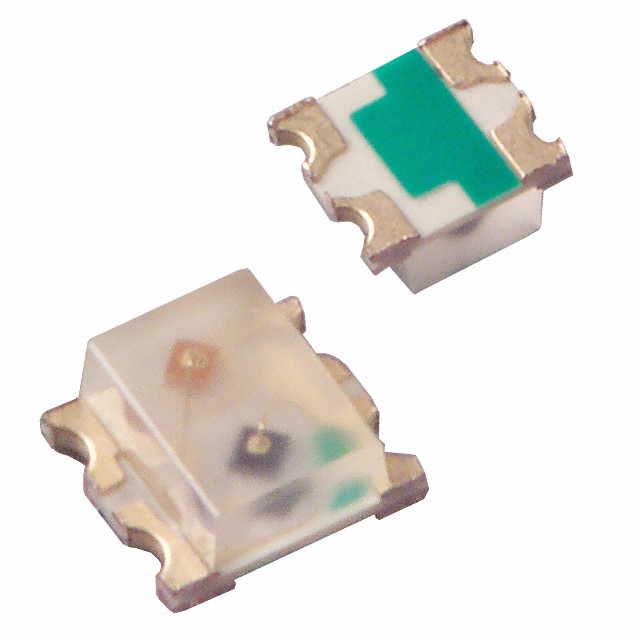

Stanley Electric Co BRPY1211C-TR	0606 (1616 Metric)	Green Red	572 nm 647 nm	570 nm 660 nm	2.1 V	1.7 V	139 ° 140 ° 150 ° 168 °	White	20 mA	20 mA	Rectangle with Flat Top	11.7 mcd	11.7 mcd	Diffused	Surface Mount	Independent	0.8 mm	1.5 mm	1.6 mm	1.1 mm	1.5 mm

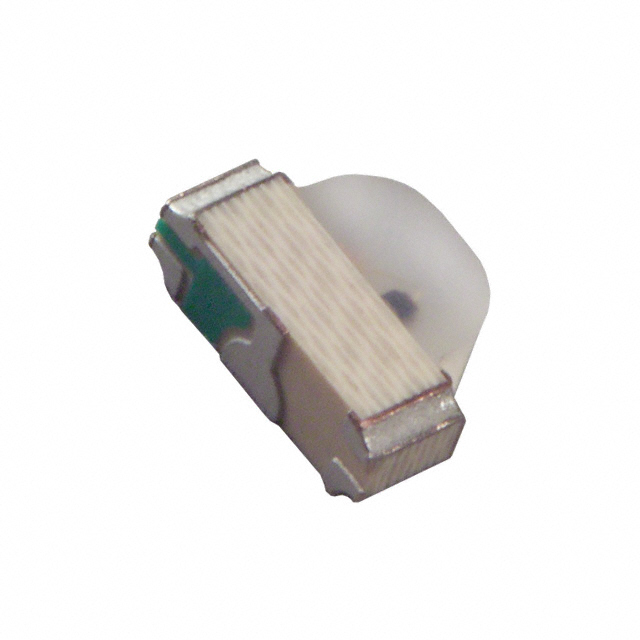

Stanley Electric Co BRPY1211F-TR	2-SMD No Lead	Green Red	572 nm 647 nm	570 nm 660 nm	2.1 V	1.7 V	140 ° 143 ° 148 ° 149 °	White	20 mA	20 mA	Rectangle with Domed Top			Diffused	Right Angle Surface Mount	Common Anode		2 mm	3 mm	2 mm	1 mm	8.8 mcd 17.6 mcd	2-SMD	1.15 mm
