4108R Series

Catalog

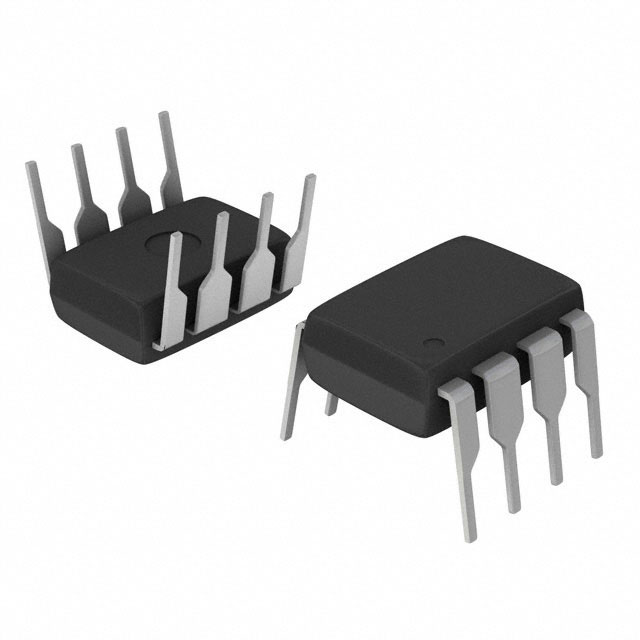

RES ARRAY 7 RES 1K OHM 8DIP

Part	Circuit Type	Number of Resistors	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Resistor-Ratio-Drift	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Resistance (Ohms)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Pins	Package / Case	Power Per Element	Resistance (Ohms) [custom]	Resistance (Ohms)
Bourns Inc. 4108R-2-102	Bussed	7	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C	1k	8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	125 mW
Bourns Inc. 4108R-1-104	Isolated	4	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C	100k	8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	250 mW
Bourns Inc. 4108R-3-221/221LF	Dual Terminator		-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	125 mW	220 Ohms
Bourns Inc. 4108R-1-222	Isolated	4	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	250 mW		2.2 kOhms
Bourns Inc. 4108R-2-561LF	Bussed	7	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	125 mW	560 Ohms
Bourns Inc. 4108R-2-563LF	Bussed	7	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	125 mW		56 kOhms
Bourns Inc. 4108R-1-472	Isolated	4	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	250 mW	4.7 kOhms
Bourns Inc. 4108R-1-223LF	Isolated	4	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C	22k	8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	250 mW
Bourns Inc. 4108R-2-472LF	Bussed	7	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	125 mW	4.7 kOhms
Bourns Inc. 4108R-1-123LF	Isolated	4	-55 C	125 °C	2 %	Through Hole	50 ppm/°C	0.465 in	0.3 "	11.81 mm	7.62 mm	100 ppm/°C		8-DIP	0.185 in	4.69 mm	8	8-DIP (0.300" 7.62mm)	250 mW		12 kOhms
