ED200 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3P SIDE ENTRY 10MM PCB
| Part | Clamp Material - Plating [custom] | Contact Material - Plating | Housing Material | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Current | Wire Termination | Number of Levels | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Mating Orientation | Pitch | Pitch | Voltage | Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

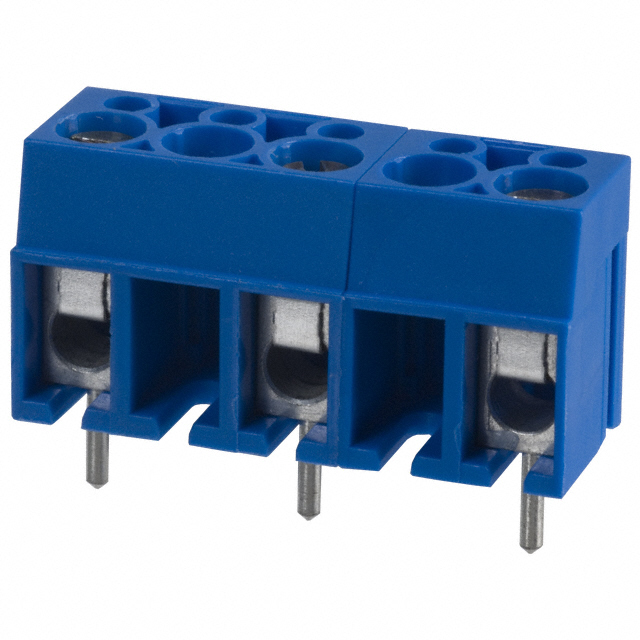

 On Shore Technology Inc. | Stainless Steel | Brass | Polyamide (PA) Nylon | M3 | -30 ░C | 105 ░C | 4.4 Lb-In | 0.5 Nm | 15 A | Screw - Leaf Spring Wire Guard | 1 | 14 AWG | 22 AWG | 3 | Horizontal with Board | 0.394 in | 10 mm | 300 VDC | Blue | Through Hole |

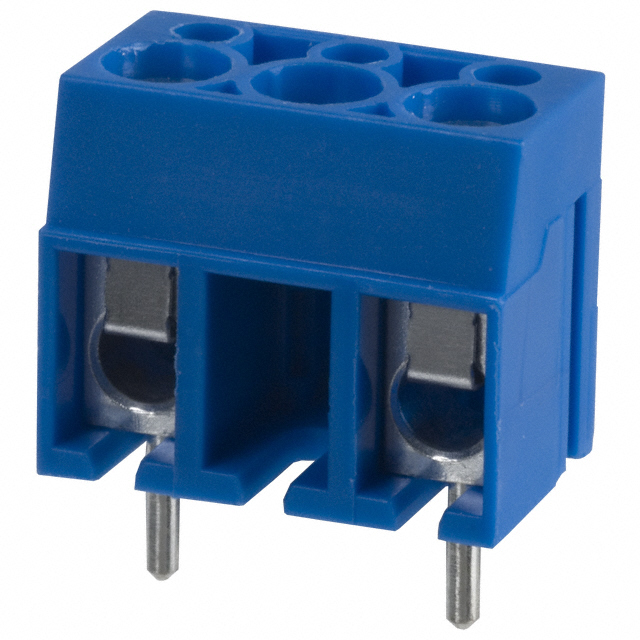

 On Shore Technology Inc. | Stainless Steel | Brass | Polyamide (PA) Nylon | M3 | -30 ░C | 105 ░C | 4.4 Lb-In | 0.5 Nm | 15 A | Screw - Leaf Spring Wire Guard | 1 | 14 AWG | 22 AWG | 2 | Horizontal with Board | 0.394 in | 10 mm | 300 VDC | Blue | Through Hole |
 On Shore Technology Inc. | Stainless Steel | Brass | Polyamide (PA) Nylon | M3 | -30 ░C | 105 ░C | 4.4 Lb-In | 0.5 Nm | 15 A | Screw - Leaf Spring Wire Guard | 1 | 14 AWG | 22 AWG | 3 | Horizontal with Board | 0.394 in | 10 mm | 300 VDC | Gray | Through Hole |
