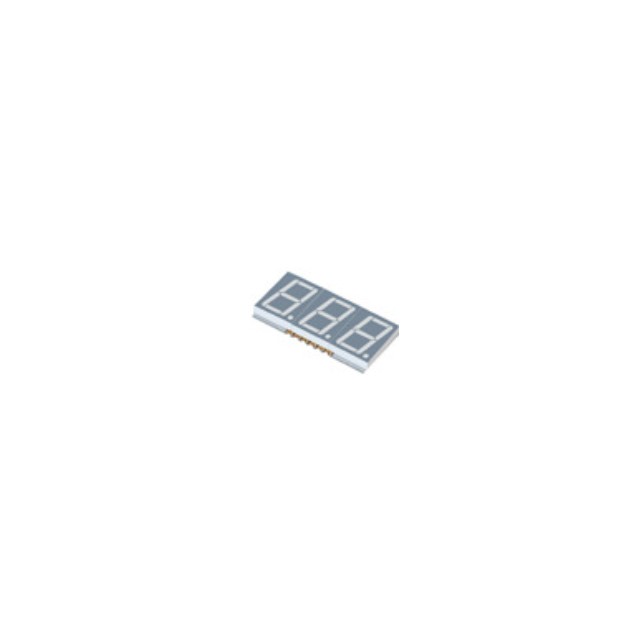

EADST056 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K
DISP 7SEG 0.56" TRP YLW-GN 12SMD
| Part | Common Pin | Wavelength - Peak | Package / Case | Color | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Current - Test | Number of Characters | Display Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | Common Cathode | 575 nm | 12-SMD No Lead | Yellow-Green | 8.9 mcd | 0.56 in | 14.22 mm | 2 V | 20 mA | 3 | 7-Segment | 0.748 in | 3.15 mm | 19 mm | 0.124 " | 37.5 mm | 1.147 " |
 Everlight Electronics Co Ltd | Common Anode | 632 nm | 12-SMD No Lead | Red | 17.6 mcd | 0.56 in | 14.22 mm | 2 V | 20 mA | 3 | 7-Segment | 0.748 in | 3.15 mm | 19 mm | 0.124 " | 37.5 mm | 1.147 " |
