2178439 Series

Catalog

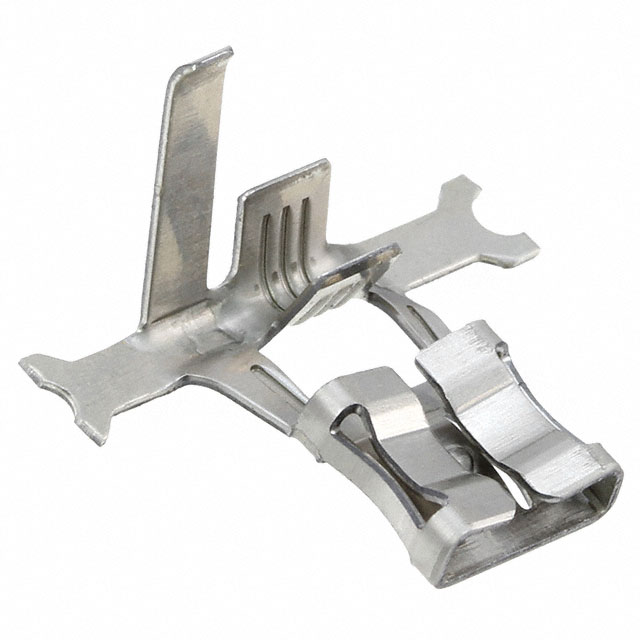

(2178439-1) 6.3 SRS FLAG F-SPRING LIF RECEPT - NIST

Part	Terminal Type	Gender	Tab Width	Tab Width	Contact Material	Mounting Type	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Tab Length	Tab Length	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation	Contact Finish	Termination	Features
TE Connectivity Raychem Cable Protection 2178439-1	Angled - 90° Flag	Female	6.35 mm	0.25 in	Steel	Free Hanging (In-Line)	0.032 in	0.81 mm	12 AWG	16 AWG	7.01 mm	0.276 in	3.81 mm	2.69 mm	0.15 "	0.106 in	Non-Insulated	Nickel	Crimp	Low Insertion Force (LIF)
