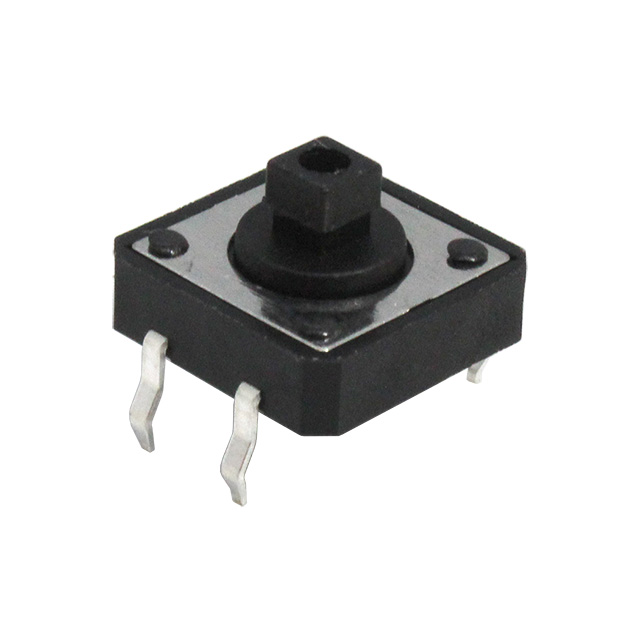

CT1103G Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Circuit | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Illumination | Switch Function | Termination Style | Actuator Type | Mounting Type | Outline [y] | Outline [x] | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.3 mm | Nylon 6/6 Polyamide (PA66) | SPST-NO | 7.3 mm | 0.05 A 50 VDC | Non-Illuminated | Off-Mom | PC Pin | Plunger for Cap | Through Hole | 12 mm | 12 mm | 180 gf | 85 °C | -40 C | Top Actuated |
