MSSA235 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DP3T 300MA 125V
| Part | Operating Force | Mechanical Life | Switch Travel | Actuator Material | Electrical Life | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Contact Material | Actuator Length [x] | Current Rating (Amps) | Contact Timing | Actuator Type | Switch Function | Features | Mounting Type | Contact Finish | Voltage Rating - AC | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

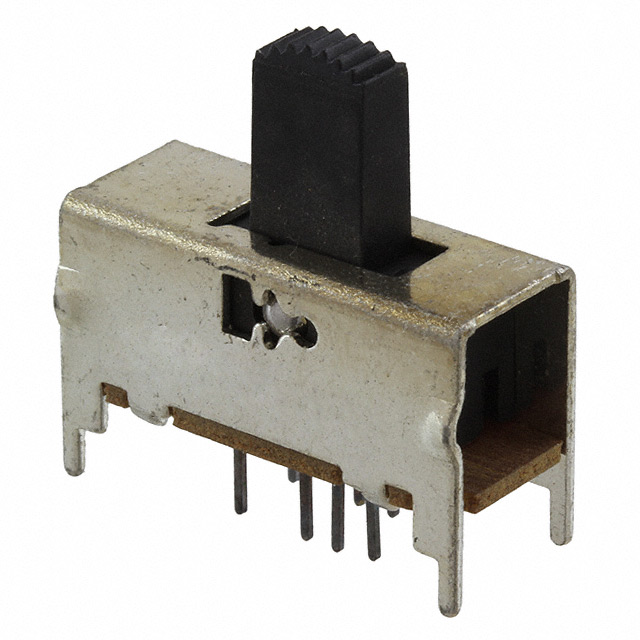

 TE Connectivity AMP Connectors | 470 gf | 15000 Cycles | 2 mm | Polyester | 15000 Cycles | PC Pin | 85 °C | -20 ░C | DP3T | Copper Alloy | 10.41 mm | 300 mA | Shorting (MBB) | Standard | On-On-On | Epoxy Sealed Terminals | Through Hole | Silver | 125 V | |

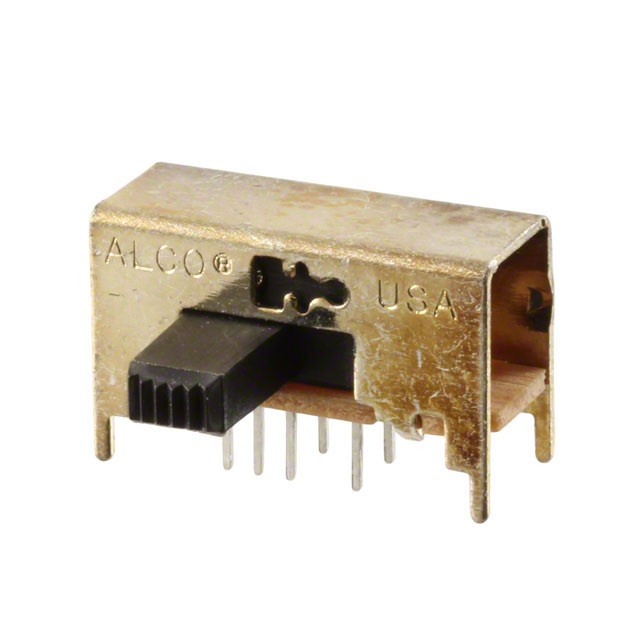

 TE Connectivity AMP Connectors | 470 gf | 15000 Cycles | 2 mm | Polyester | 15000 Cycles | PC Pin | 85 °C | -20 ░C | DP3T | Copper Alloy | 9.02 mm | 0.4 VA | Shorting (MBB) | Standard | On-On-On | Epoxy Sealed Terminals | Right Angle Through Hole | Gold | 20 V | 20 V |
 TE Connectivity AMP Connectors | 470 gf | 15000 Cycles | 2 mm | Polyester | 15000 Cycles | PC Pin | 85 °C | -20 ░C | DP3T | Copper Alloy | 9.02 mm | 300 mA | Shorting (MBB) | Standard | On-On-On | Epoxy Sealed Terminals | Right Angle Through Hole | Silver | 125 V |
