NPTC162 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

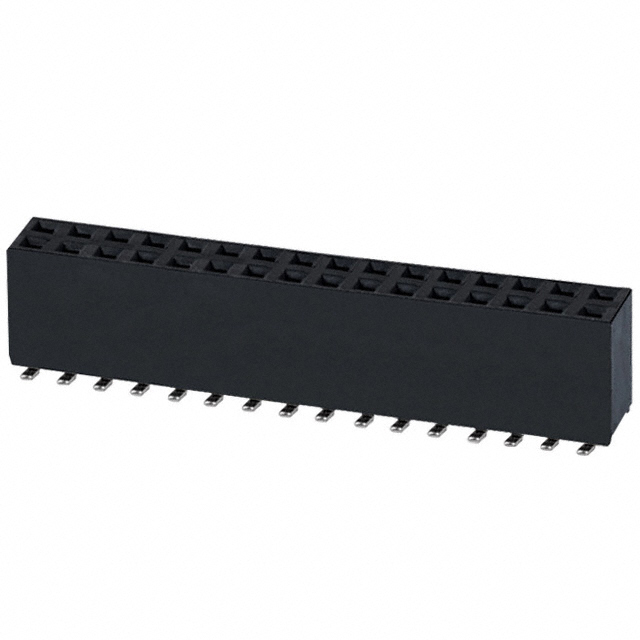

CONN HDR 32POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Voltage Rating | Contact Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Connector Type | Material Flammability Rating | Current Rating (Amps) | Number of Rows [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | 250 V | Female Socket | Solder | 125 °C | -40 C | Push-Pull | Tin | 0.1 " | 2.54 mm | 0.299 " | 7.6 mm | All | 0.1 in | 2.54 mm | Black | Header | UL94 V-0 | 3 A | 2 | Surface Mount |
