KMF0.2193 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

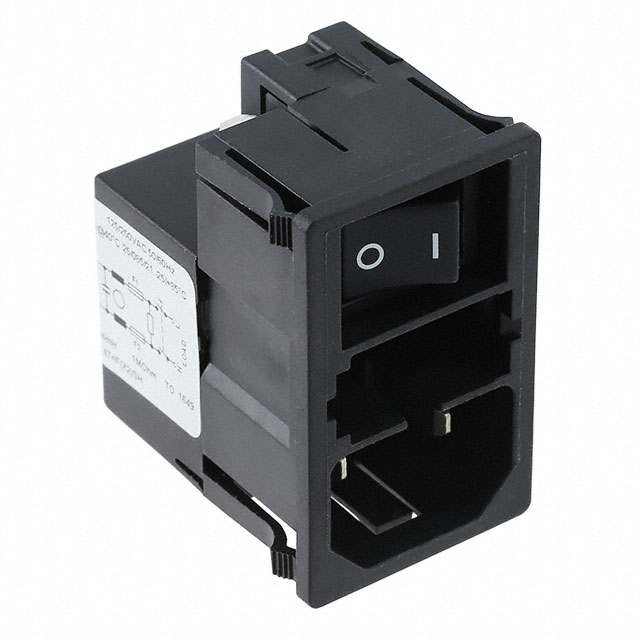

PWR ENT MOD RCPT IEC320-C18 PNL
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Number of Positions | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Termination | Termination | Termination | Connector Type | Connector Style | Material Flammability Rating | Mounting Type | Current Rating - Filter | Filter Type | Approval Agency | Fuse Holder, Drawer | Switch Features | Ingress Protection | Current Rating - Appliance Inlet | Accomodates a Fuse | Voltage Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 28.8 mm | 47.8 mm | 2 | 2.5 mm | 0.039 in | 0.098 in | 1 mm | 0.189 " | 4.8 mm | Quick Connect | Receptacle Male Blades - Module | IEC 320-C18 | UL94 V-0 | Panel Mount Snap-In | 10 A | Filtered (EMI RFI) - Commercial Medical | CCC cURus ENEC | Fuse Holder | Switch On-Off | IP40 | 10 A | 250 VAC |
