746-108 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 108POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Card Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Contact Finish	Read Out	Gender	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 746-108-560-206	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever Make Before Break	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-525-606	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-527-606	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-540-206	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-545-206	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-540-601	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-553-606	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-525-201	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm

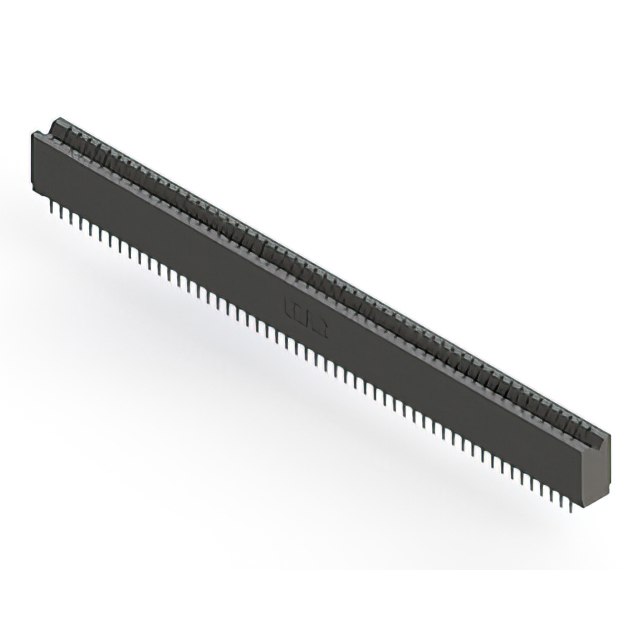

EDAC Inc. 746-108-520-206	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-108-553-201	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	Through Hole	-40 C	105 ░C	Cantilever	2	3.18 mm	0.125 in	108	Gold	Dual	Female	54	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm
