TX24-80R Series

Catalog

CONN RCPT 80POS VERT GOLD

Part	Features	Number of Rows [custom]	Contact Finish	Mounting Type	Connector Type	Mated Stacking Heights	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board [z]	Height Above Board [z]

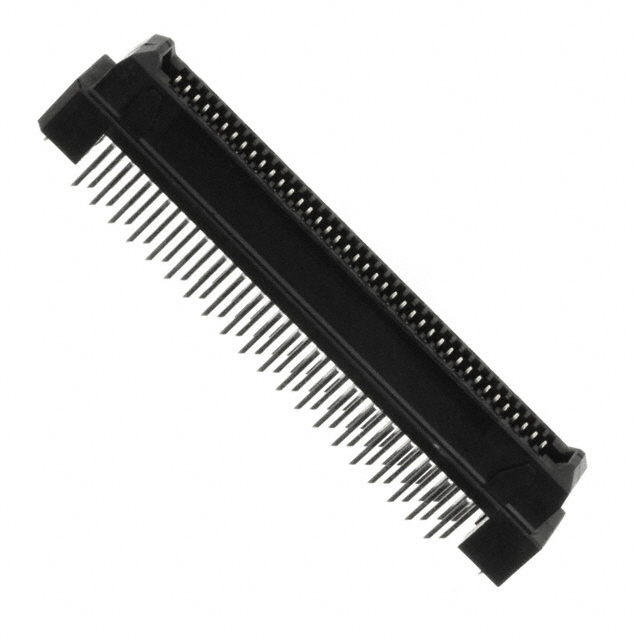

JAE Electronics TX24-80R-10ST-H1E	Board Lock	2	Gold	Through Hole	Receptacle Outer Shroud Contacts	16 mm 18 mm 22 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	14.3 mm	0.563 in

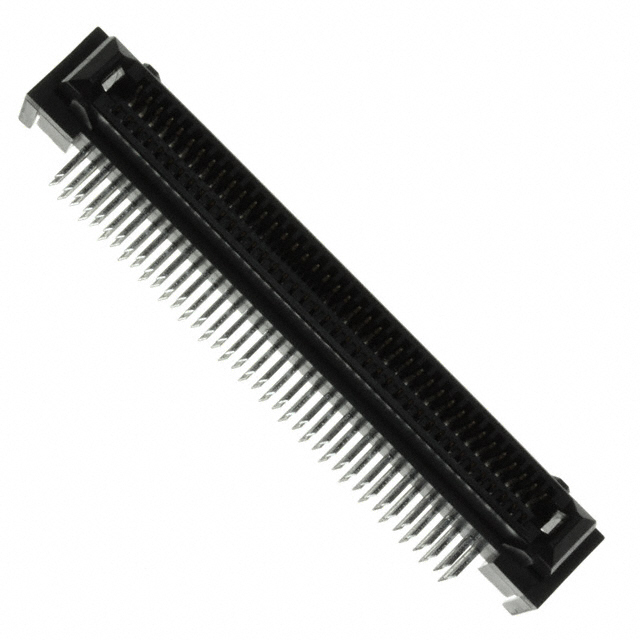

JAE Electronics TX24-80R-LT-N1E		2	Gold	Right Angle Through Hole	Receptacle Outer Shroud Contacts		0.05 in	1.27 mm	0.1 Ám	4 Áin	80	9 mm	0.354 in

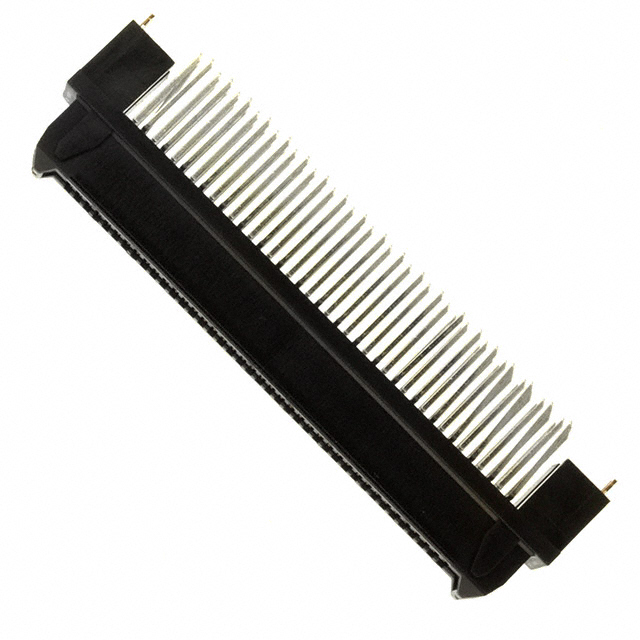

JAE Electronics TX24-80R-12ST-E1E	Board Lock	2	Gold	Through Hole	Receptacle Outer Shroud Contacts	18 mm 20 mm 24 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	16.3 mm	0.642 in

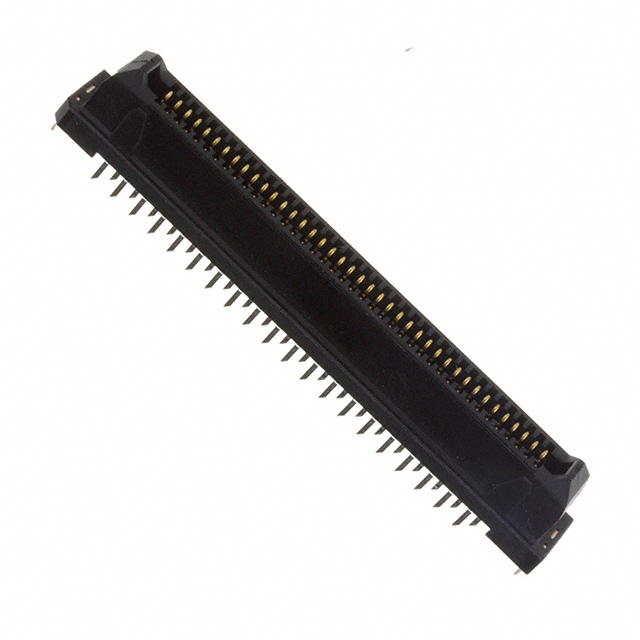

JAE Electronics TX24-80R-6ST-E1E	Board Lock	2	Gold	Through Hole	Receptacle Outer Shroud Contacts	12 mm 14 mm 18 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	10.3 mm	0.406 in

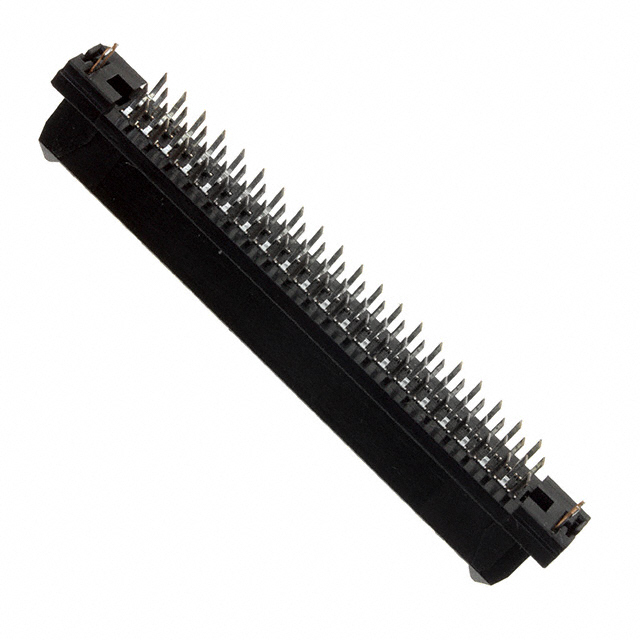

JAE Electronics TX24-80R-6ST-H1E	Board Lock	2	Gold	Through Hole	Receptacle Outer Shroud Contacts	12 mm 14 mm 18 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	10.3 mm	0.406 in

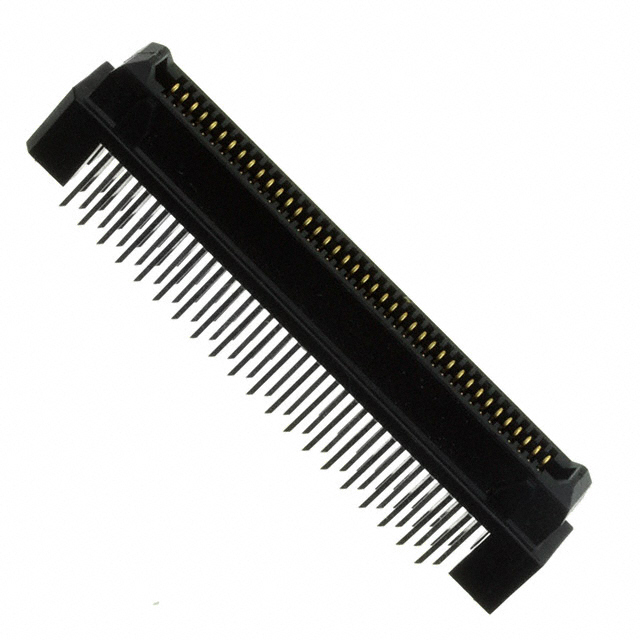

JAE Electronics TX24-80R-12ST-H1E	Board Lock	2	Gold	Through Hole	Receptacle Outer Shroud Contacts	18 mm 20 mm 24 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	16.3 mm	0.642 in

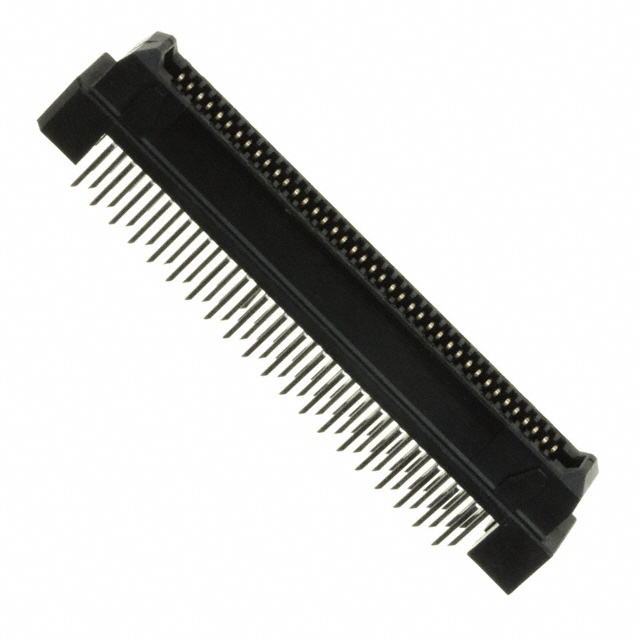

JAE Electronics TX24-80R-10ST-N1E		2	Gold	Through Hole	Receptacle Outer Shroud Contacts	16 mm 18 mm 22 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	14.3 mm	0.563 in

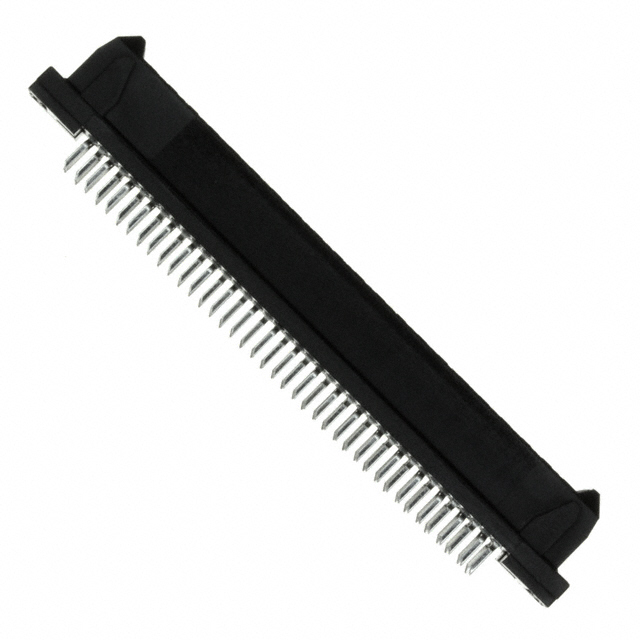

JAE Electronics TX24-80R-6ST-N1E		2	Gold	Through Hole	Receptacle Outer Shroud Contacts	12 mm 14 mm 18 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	10.3 mm	0.406 in
JAE Electronics TX24-80R-LT-H1E	Board Lock	2	Gold	Right Angle Through Hole	Receptacle Outer Shroud Contacts		0.05 in	1.27 mm	0.1 Ám	4 Áin	80	9 mm	0.354 in
JAE Electronics TX24-80R-12ST-N1E		2	Gold	Through Hole	Receptacle Outer Shroud Contacts	18 mm 20 mm 24 mm	0.05 in	1.27 mm	0.1 Ám	4 Áin	80	16.3 mm	0.642 in
