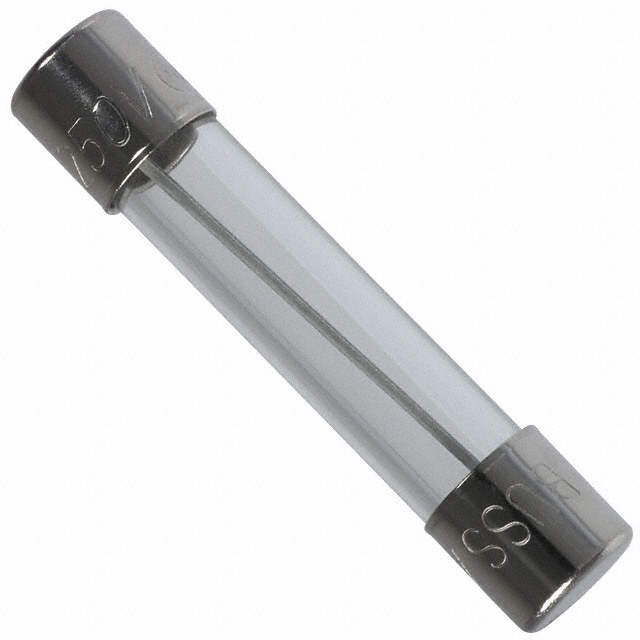

AGC Series

Cartridge Fuses SMALL DIMENSION FUSE

Manufacturer: Eaton - Electronics Division

Catalog

Cartridge Fuses SMALL DIMENSION FUSE

Catalog

Cartridge Fuses SMALL DIMENSION FUSE

...

Part	DC Cold Resistance	Fuse Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Breaking Capacity @ Rated Voltage	Package / Case [y]	Package / Case	Package / Case [x]	Current Rating (Amps)	Melting I²t	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Melting I˛t

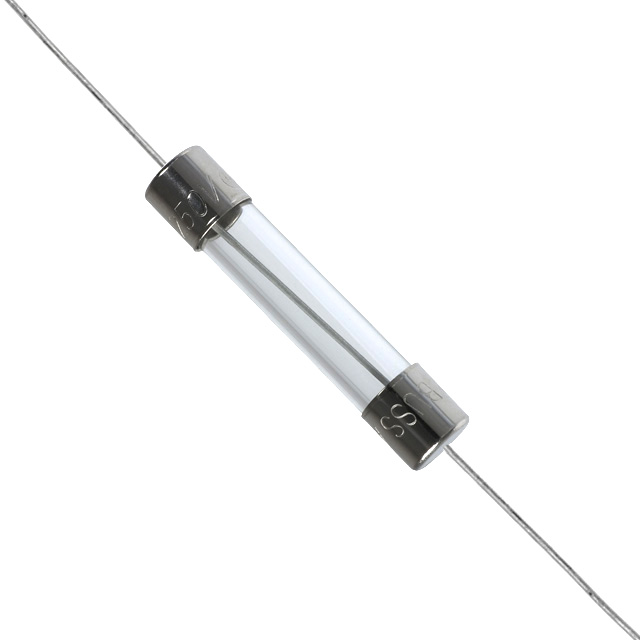

Eaton - Electronics Division BK/AGC-V-2	0.063 Ohms	Cartridge Glass	0.266 " 1.292 "	6.76 mm 32.82 mm	Through Hole	250 V	-55 C	125 °C	Fast Blow	100 A		3AB 3AG	0.25 "	2 A	17.52 I²t	CSA UL
Eaton - Electronics Division BK/AGC-V-.175-R		Cartridge Glass	0.266 " 1.292 "	6.76 mm 32.82 mm	Through Hole	250 V	-55 C	125 °C	Fast Blow			3AB 3AG	0.25 "	175 mA
Eaton - Electronics Division BK/AGC-V-5-R	0.019 Ohms	Cartridge Glass	0.266 " 1.292 "	6.76 mm 32.82 mm	Through Hole	250 V	-55 C	125 °C	Fast Blow	200 A		3AB 3AG	0.25 "	5 A	131.5	CSA UL
Eaton - Electronics Division BK/AGC-1/200-R		Cartridge Glass	6.35 mm		Requires Holder	250 V	-55 C	125 °C	Fast Blow			3AB 3AG	0.25 in	5 mA			31.75 mm	1.25 in	0.25 "
Eaton - Electronics Division BK/AGC-4/10		Cartridge Glass	6.35 mm		Requires Holder	250 V	-55 C	125 °C	Fast Blow			3AB 3AG	0.25 in	400 mA			31.75 mm	1.25 in	0.25 "
Eaton - Electronics Division BK/AGC-V-2-1/4	0.052 Ohms	Cartridge Glass	0.266 " 1.292 "	6.76 mm 32.82 mm	Through Hole	250 V	-55 C	125 °C	Fast Blow	100 A		3AB 3AG	0.25 "	2.25 A	22.832 I²t	CSA UL
Eaton - Electronics Division AGC-V-4-R	0.024 Ohms	Cartridge Glass	0.266 " 1.292 "	6.76 mm 32.82 mm	Through Hole	250 V	-55 C	125 °C	Fast Blow	200 A		3AB 3AG	0.25 "	4 A	86.56	CSA UL
Eaton - Electronics Division BK/AGC-20-R	0.0034 Ohms	Cartridge Glass	6.35 mm		Requires Holder	32 V	-55 C	125 °C	Fast Blow	1 kA		3AB 3AG	0.25 in	20 A	2440	CSA UL	31.75 mm	1.25 in	0.25 "
Eaton - Electronics Division BK/AGC-2RR	0.063 Ohms	Cartridge Glass	6.35 mm		Requires Holder	250 V	-55 C	125 °C	Fast Blow	100 A		3AB 3AG	0.25 in	2 A	17.52 I²t	CSA UL	31.75 mm	1.25 in	0.25 "	17.52
Eaton - Electronics Division BK-AGC-B-2-R	0.063 Ohms	Cartridge Glass	6.35 mm		Requires Holder	250 V	-55 C	125 °C	Fast Blow	100 A		3AB 3AG	0.25 in	2 A	17.52 I²t	CSA UL	31.75 mm	1.25 in	0.25 "
