83025 Series

Catalog

HOOK-UP STRND 22AWG BRN 100'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings	Voltage	Qualification	Length [x]	Length [x]	Conductor Material	Wire Gauge	Jacket Color	Length	Length
Belden Inc. 83025 001100	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5	100 ft	30.5 m	Copper Silver Coated	22 AWG	Brown
Belden Inc. 83025 005100	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5	100 ft	30.5 m	Copper Silver Coated	22 AWG	Green
Belden Inc. 83025 004100	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5	100 ft	30.5 m	Copper Silver Coated	22 AWG	Yellow
Belden Inc. 83025 0061000	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5			Copper Silver Coated	22 AWG	Blue	304.8 m	1000 ft
Belden Inc. 83025 0041000	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5			Copper Silver Coated	22 AWG	Yellow	304.8 m	1000 ft

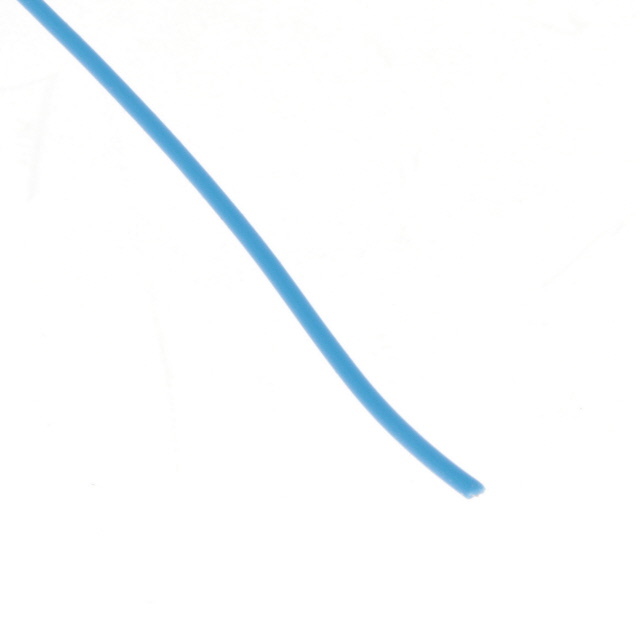

Belden Inc. 83025 006100	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5	100 ft	30.5 m	Copper Silver Coated	22 AWG	Blue
Belden Inc. 83025 0011000	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5			Copper Silver Coated	22 AWG	Brown	304.8 m	1000 ft
Belden Inc. 83025 0091000	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5			Copper Silver Coated	22 AWG	White	304.8 m	1000 ft
Belden Inc. 83025 002100	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5	100 ft	30.5 m	Copper Silver Coated	22 AWG	Red
Belden Inc. 83025 003100	0.38 mm	0.015 in	Tetrafluoroethylene (TFE)	High Temperature	30 AWG	7	Hook-Up	UL Style 1180	300 VDC	MIL-W-16878/5	100 ft	30.5 m	Copper Silver Coated	22 AWG	Orange
