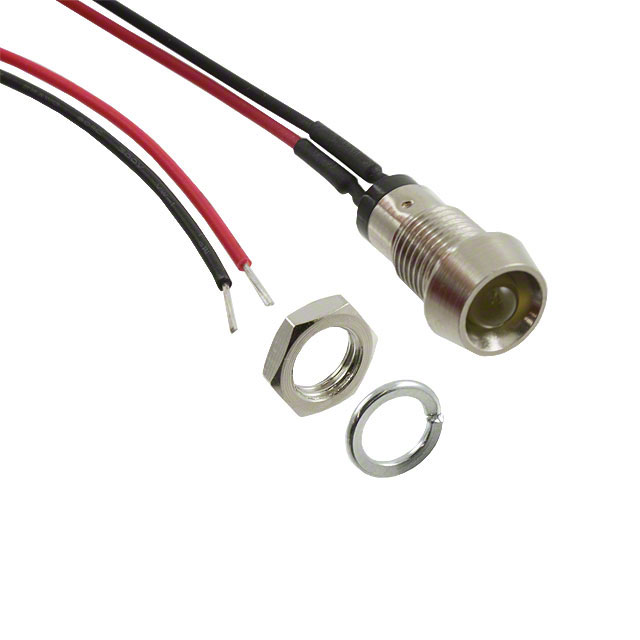

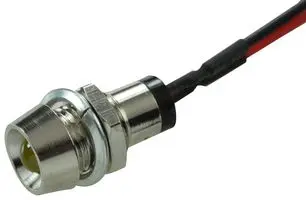

MPR5YDW12.0 Series
Manufacturer: Bivar Inc.
Beta
⌘K
LED PANEL MOUNT INDICATOR, YELLOW, 2 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED
| Part | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Style | Lens Transparency | Millicandela Rating | Type | Viewing Angle | Voltage | Lens Size | Lens Size | Wavelength - Peak | Lamp Color | Lens Color | Current | Panel Cutout Shape | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 8.13 mm | 0.32 " | Round with Domed Top | Diffused | 25 mcd | LED | 40 ° | 2 V | 5 mm | T-1 3/4 | 590 nm | Yellow | Yellow | 30 mA | Round | Wire Leads - 12" (304.80mm) |
