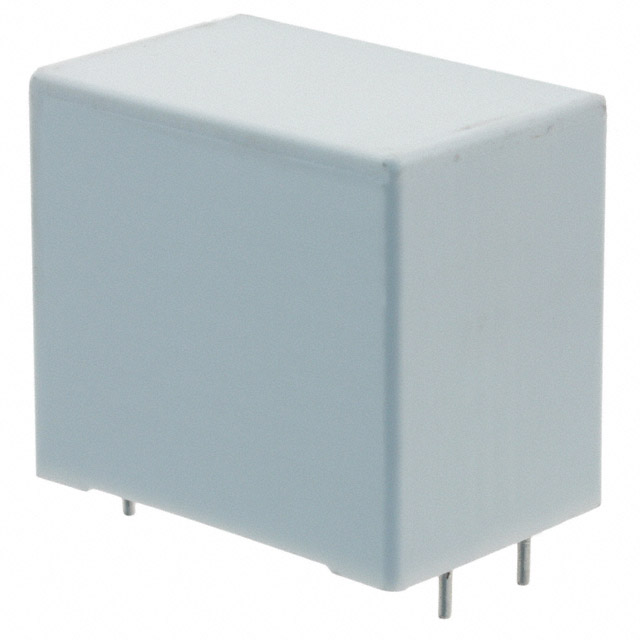

C4AEHB Series

Manufacturer: KEMET

Catalog

CAP FILM 40UF 5% 600VDC RADIAL

Part	Package / Case	Termination	Applications	Dielectric Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Tolerance	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)

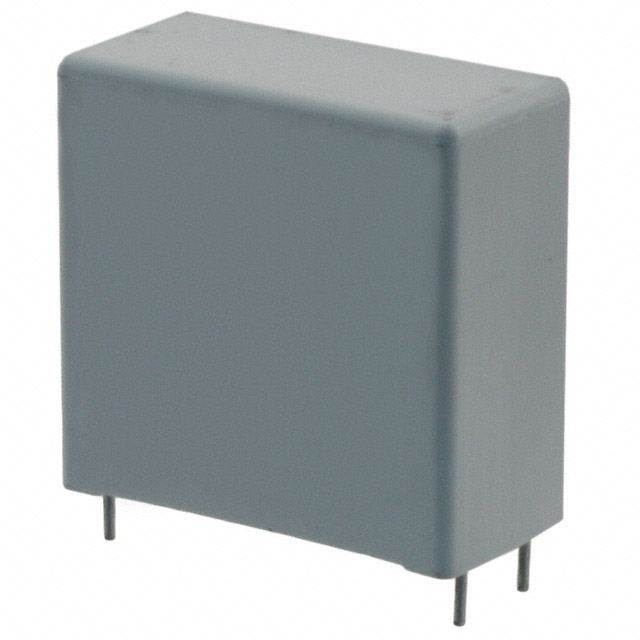

KEMET C4AEHBW5400A3LJ	Radial - 4 Leads	PC Pins	DC Filtering DC Link High Frequency Switching	Polypropylene (PP) Metallized	1.181 in	30 mm	42 mm	1.654 in	2.8 mOhms	5 %	37.5 mm	1.476 in	40 µF	1.772 "	45 mm	85 °C	-40 C	Through Hole	600 V
KEMET C4AEHBW5300A3JJ	Radial - 4 Leads	PC Pins	DC Filtering DC Link High Frequency Switching	Polypropylene (PP) Metallized	1.102 "		42.5 mm	1.673 "	3.6 mOhms	5 %	37.5 mm	1.476 in	30 µF	1.465 in	37.2 mm	85 °C	-40 C	Through Hole	600 V	28 mm
KEMET C4AEHBU5100A11J	Radial	PC Pins	DC Filtering DC Link High Frequency Switching	Polypropylene (PP) Metallized					6.8 mOhms	5 %	27.5 mm	1.083 in	10 µF	1.15 "	29.2 mm	85 °C	-40 C	Through Hole	600 V
KEMET C4AEHBW5200A3FJ	Radial - 4 Leads	PC Pins	DC Filtering DC Link High Frequency Switching	Polypropylene (PP) Metallized	0.787 in	20 mm	41.5 mm	1.634 in	5.3 mOhms	5 %	37.5 mm	1.476 in	20 µF	1.583 in	40.2 mm	85 °C	-40 C	Through Hole	600 V
KEMET C4AEHBU4330A1WJ	Radial	PC Pins	DC Filtering DC Link High Frequency Switching	Polypropylene (PP) Metallized					17 mOhm	5 %	27.5 mm	1.083 in	3.3 µF			85 °C	-40 C	Through Hole	600 V		0.795 in	20.2 mm

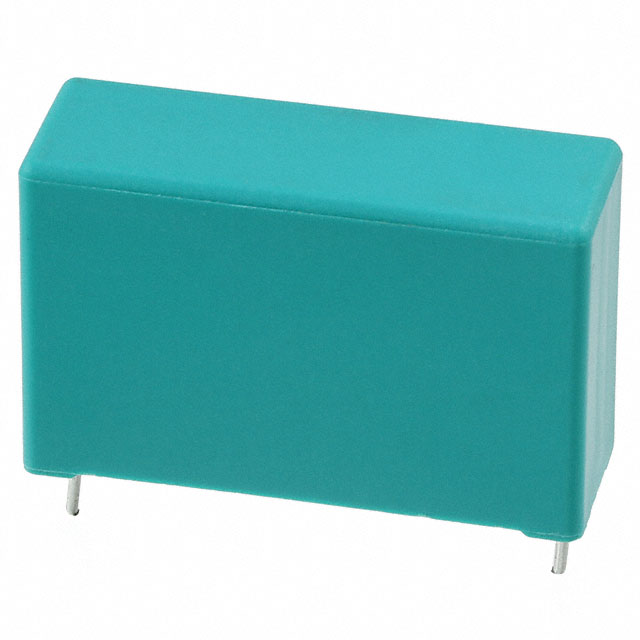

KEMET C4AEHBU5150A12J	Radial	PC Pins	DC Filtering DC Link High Frequency Switching	Polypropylene (PP) Metallized	0.866 in	22 mm	31.5 mm	1.24 in	5.3 mOhms	5 %	27.5 mm	1.083 in	15 µF	1.465 in	37.2 mm	85 °C	-40 C	Through Hole	600 V
