264 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Part	Length [x]	Length [x]	Material - Insulation	Material Flammability Rating	Height (Max) [z]	Height (Max) [z]	Stripping Length [Min]	Stripping Length [Max]	Voltage - IEC	Housing Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Terminal - Width [y]	Mounting Type	Number of Levels	Current - IEC	Color	For Use With/Related Products	Style	Length	Length	Height (Max)	Height (Max) [Max] [z]	Features

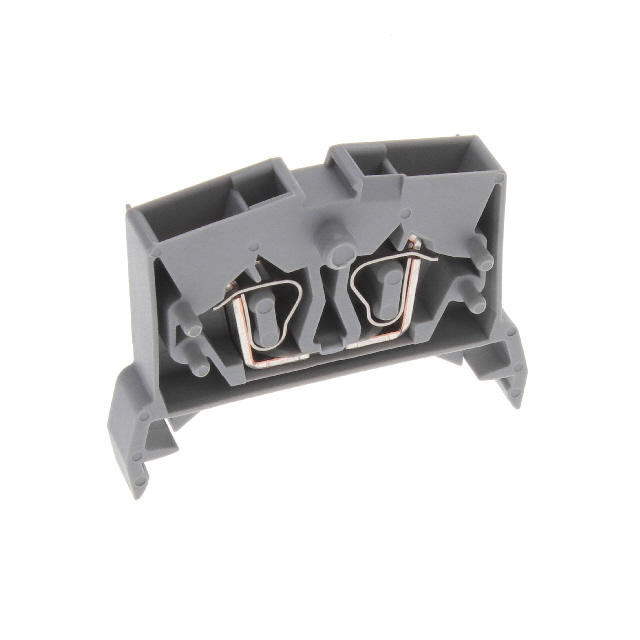

WAGO Corporation 264-711	38 mm	1.496 in	Nylon 6/6 Polyamide (PA66)	UL94 V-0	24.51 mm	0.965 in	8 mm	9 mm	800 V	Gray	28 AWG	12 AWG	2	Middle	2.5 mm²	0.08 mm²	Push In Spring	6 mm	DIN Rail	1	24 A

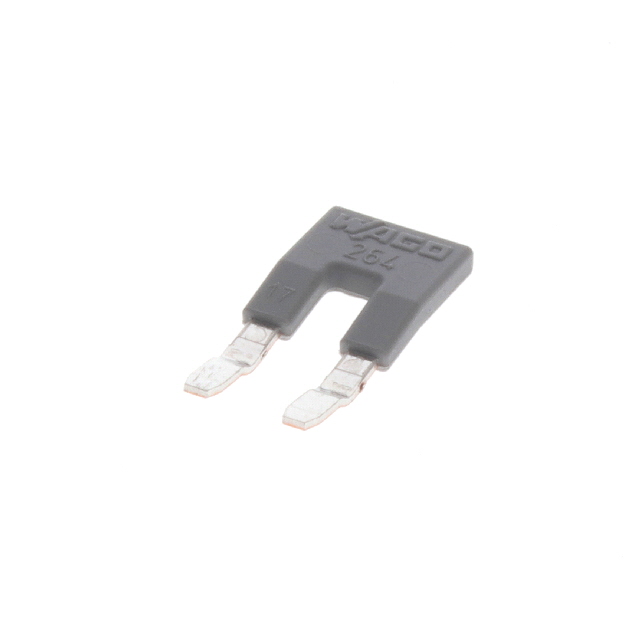

WAGO Corporation 264-402													2	Terminal Block Cross Connection								Gray	Terminal Blocks	Flat Pins - Angled
WAGO Corporation 264-368														End Plate								Gray	Terminal Blocks
WAGO Corporation 264-737	46.51 mm	1.831 in	Nylon 6/6 Polyamide (PA66)	UL94 V-0	24.51 mm	0.965 in	8 mm	9 mm		Green Yellow	28 AWG	12 AWG	4	Middle	2.5 mm²	0.08 mm²	Push In Spring	10 mm	DIN Rail	1

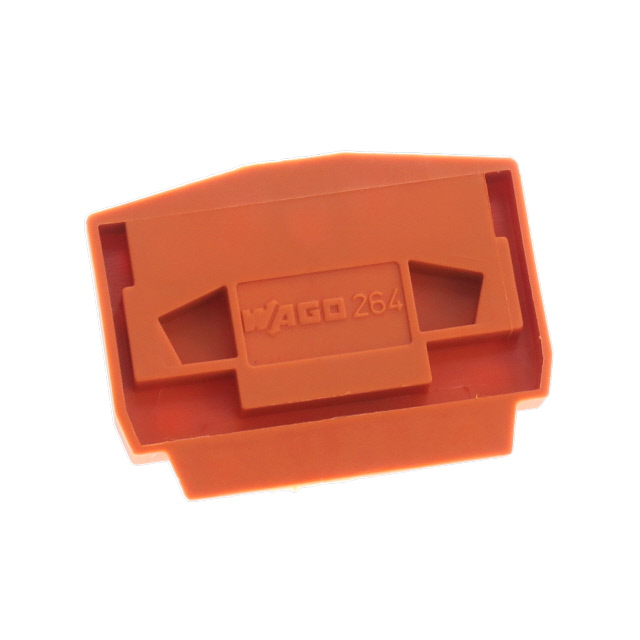

WAGO Corporation 264-369														End Plate									Terminal Blocks
WAGO Corporation 264-361														End Plate								Gray	Terminal Blocks

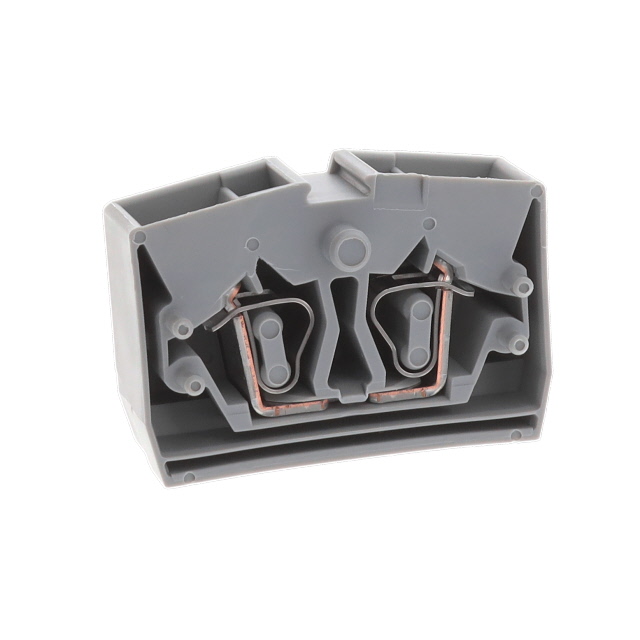

WAGO Corporation 264-351			Nylon 6/6 Polyamide (PA66)	UL94 V-0			8 mm	9 mm	800 V	Gray	28 AWG	12 AWG	4	Middle	2.5 mm²	0.08 mm²	Push In Spring	10 mm	Direct Mount	1	24 A				32 mm	0.105 ft	22.1 mm	0.87 in

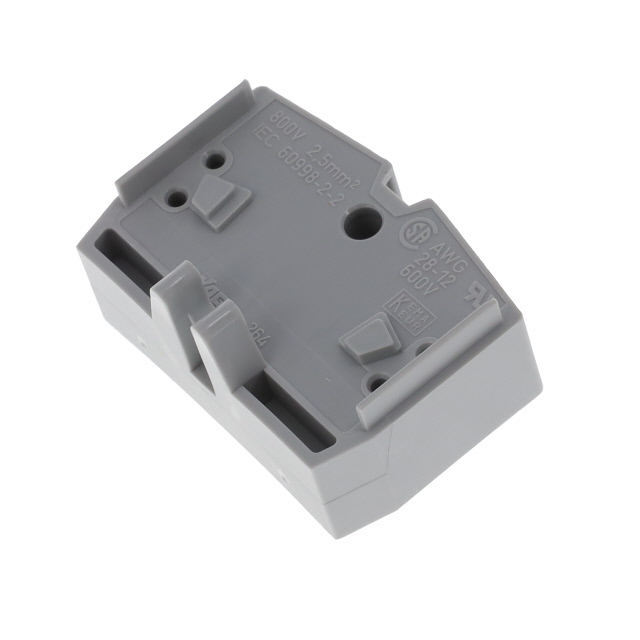

WAGO Corporation 264-331			Nylon 6/6 Polyamide (PA66)	UL94 V-0			8 mm	9 mm	800 V	Gray	28 AWG	12 AWG	4	Middle	2.5 mm²	0.08 mm²	Push In Spring	10 mm	Direct Mount	1	24 A				32 mm	0.105 ft	22.1 mm	0.87 in	Flange
WAGO Corporation 264-701			Nylon 6/6 Polyamide (PA66)	UL94 V-0	24.51 mm	0.965 in	8 mm	9 mm	800 V	Gray	28 AWG	12 AWG	2	Middle	2.5 mm²	0.08 mm²	Push In Spring	6 mm	DIN Rail	1	24 A				32 mm	0.105 ft
WAGO Corporation 264-301			Nylon 6/6 Polyamide (PA66)	UL94 V-0			8 mm	9 mm	800 V	Gray	28 AWG	12 AWG	2	Middle	2.5 mm²	0.08 mm²	Push In Spring	6 mm	Direct Mount	1	24 A				32 mm	0.105 ft	22.1 mm	0.87 in	Flange
