76011 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

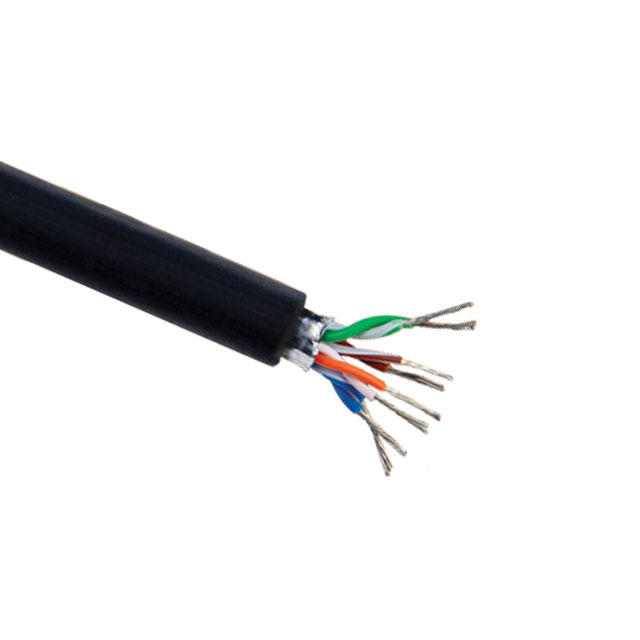

CABLE CAT5E 8COND 24AWG BLK 100'
| Part | Shield Material | Length | Length | Length [x] | Length [x] | Shield Coverage | Features | Wire Gauge | Voltage | Conductor Insulation | Jacket Color | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Usage | Cable Type | Ratings | Shield Type | Conductor Strand | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 76.2 m 152.4 m | 250 ft 500 ft | 100 ft | 30.5 m | 100 % | Biological Compatibility Drain Wire Rip Cord | 24 AWG | 300 VDC | Polypropylene (PP) | Black | 8 | 0.295 " | 7.49 mm | Copper Bare | Communication | Multi-Pair Cat5e | ISO 10993 | Foil | Solid | Thermoplastic Elastomer (TPE) | 0.035 in | 0.889 mm | -50 °C | 105 ░C |
ALPHA WIRE | Aluminum | 304.8 m | 1000 ft | 100 % | Biological Compatibility Drain Wire Rip Cord | 24 AWG | 300 VDC | Polypropylene (PP) | Black | 8 | 0.295 " | 7.49 mm | Copper Bare | Communication | Multi-Pair Cat5e | ISO 10993 | Foil | Solid | Thermoplastic Elastomer (TPE) | 0.035 in | 0.889 mm | -50 °C | 105 ░C |
