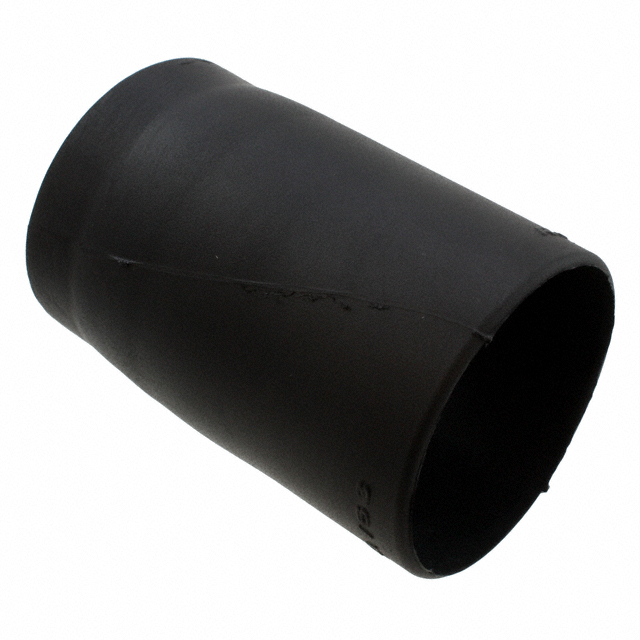

242W042 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

STD POLY MOLDED PARTS

Part	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Small Diameter Supplied	Small Diameter Supplied	Small Recovered Length	Small Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Type	Type	Material	Shell Size - Insert	Color	Total Length Recovered	Total Length Recovered	Small Recovered Length [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine 242W042-3/42-0	17.9 mm	0.705 "	35 mm	1.378 in	0.709 in	18.01 mm	2.165 in	54.99 mm	1.22 in	30.99 mm	45 °	Boot	Polyolefin (PO) Semi-Rigid
TE Connectivity Aerospace, Defense and Marine 242W042-25-0	17.9 mm	0.705 "	35 mm	1.378 in				24.99 mm	1.22 in	30.99 mm	45 °	Boot	Elastomer	42	Black	55 mm	2.165 "	0.984 in	30.99 mm	1.22 in
TE Connectivity Aerospace, Defense and Marine 242W042-12-G44-0	17.9 mm	0.705 "	35 mm	1.378 in	0.709 in	18.01 mm	2.165 in	54.99 mm	1.22 in	30.99 mm	45 °	Boot	Fluoroelastomer (FKM) Flexible
TE Connectivity Aerospace, Defense and Marine 242W042-25/86-0	17.9 mm	0.705 "	35 mm	1.378 in				24.99 mm	1.22 in	30.99 mm	45 °	Boot	Elastomer Fluid Resistant	42	Black			0.984 in	30.99 mm	1.22 in
TE Connectivity Aerospace, Defense and Marine 242W042-100-CS-1972-0	17.78 mm	0.7 in	8.89 mm	0.35 in			0.25 in	6.35 mm	1.22 in	30.99 mm	45 °	Boot	Polyolefin (PO) Semi-Flexible Halogen Free	42	Black				18.03 mm	0.71 in	7.11 mm	0.28 "
TE Connectivity Aerospace, Defense and Marine 242W042-12-0	17.9 mm	0.705 "	35 mm	1.378 in	0.709 in	18.01 mm	2.165 in	54.99 mm	1.22 in	30.99 mm	45 °	Boot	Fluoroelastomer (FKM) Flexible
TE Connectivity Aerospace, Defense and Marine 242W042-4-G01/86-0
