ZRS-8480 Series
Manufacturer: JKL Components Corp.
Beta
⌘K

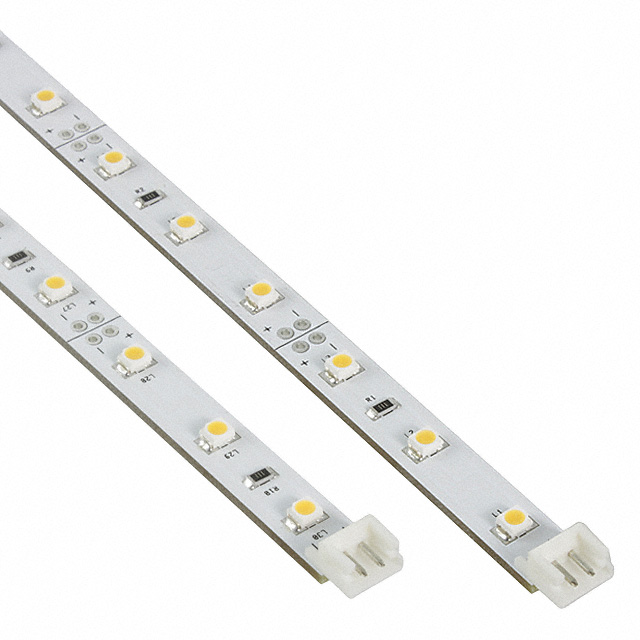

LED LIGHTING MODULES 8.0MM X 480MM LED WARM WHITE LIGHT BAR
| Part | Height [z] | CCT (K) | Configuration | Features | Lumens/Watt @ Current - Test | Temperature - Test | Type | Luminous Flux @ Current/Temperature | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Viewing Angle | Color | Current - Test | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JKL Components Corp. | 2.6 mm 3.6 mm | 3050 K | Linear Light Strip | With Connector | 29 lm/W | 25 °C | LED Engine | 70 lm | 485 mm | 8 mm | 12 V | 200 mA | 120 ° | Warm White | 200 mA | |

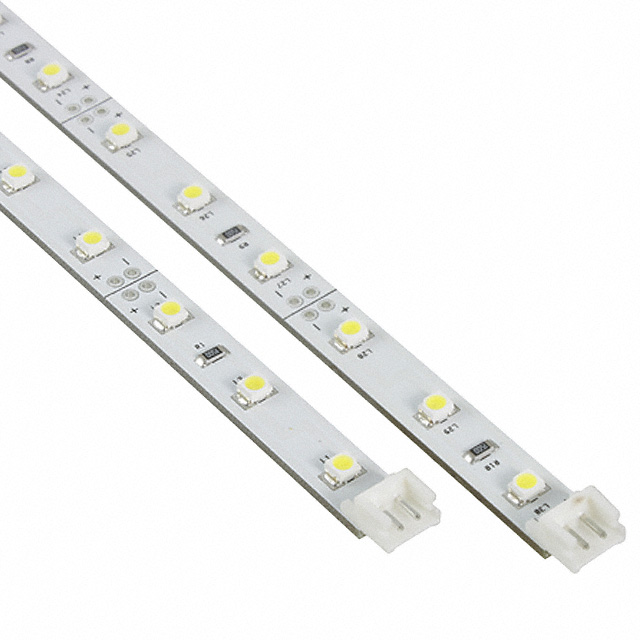

 JKL Components Corp. | 2.6 mm 3.6 mm | 6000 K | Linear Light Strip | With Connector | 38 lm/W | 25 °C | LED Engine | 90 lm | 480 mm | 8 mm | 12 V | 200 mA | 120 ° | Cool White | 200 mA | Flat |
