PEC32 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Type	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Color	Insulation Height	Insulation Height	Shrouding	Termination	Style	Fastening Type	Number of Rows [custom]	Insulation Material	Number of Rows	Overall Contact Length	Overall Contact Length

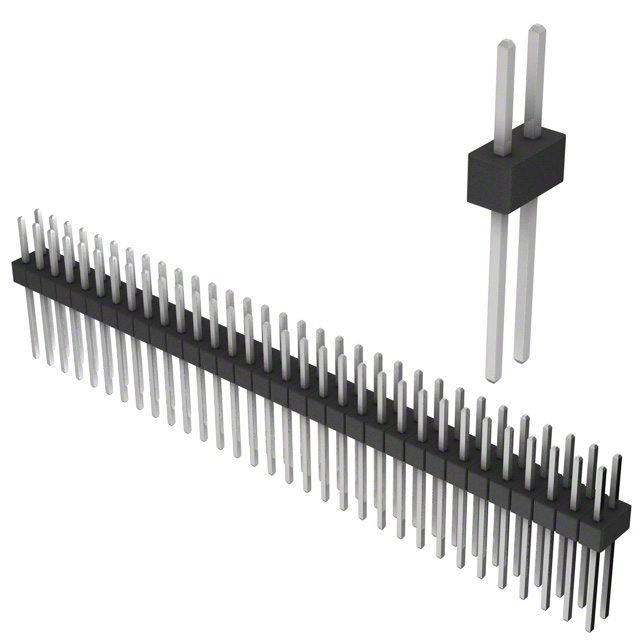

Sullins Connector Solutions PEC32DADN	2.54 µm	100 µin	3 A	Male Pin	Square	10.67 mm	0.42 in	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Header Breakaway	64	Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0	19.05 mm	0.75 in	Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull	2	Polybutylene Terephthalate (PBT)

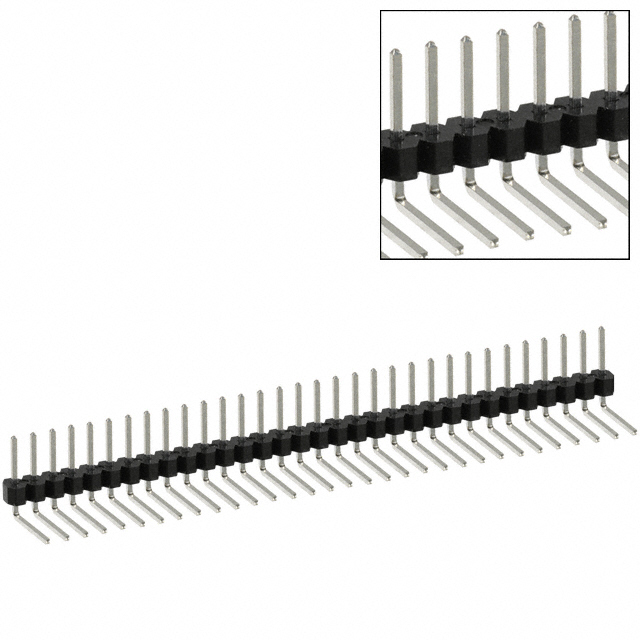

Sullins Connector Solutions PEC32SBCN	2.54 µm	100 µin	3 A	Male Pin	Square	7.62 mm	0.3 in	0.23 in	5.84 mm	Right Angle Through Hole			Header Breakaway		Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0			Black	0.14 in	3.56 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull		Polybutylene Terephthalate (PBT)	1
Sullins Connector Solutions PEC32DAAN	2.54 µm	100 µin	3 A	Male Pin	Square	3.05 mm	0.12 in	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Header Breakaway	64	Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0	11.43 mm	0.45 in	Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull	2	Polybutylene Terephthalate (PBT)

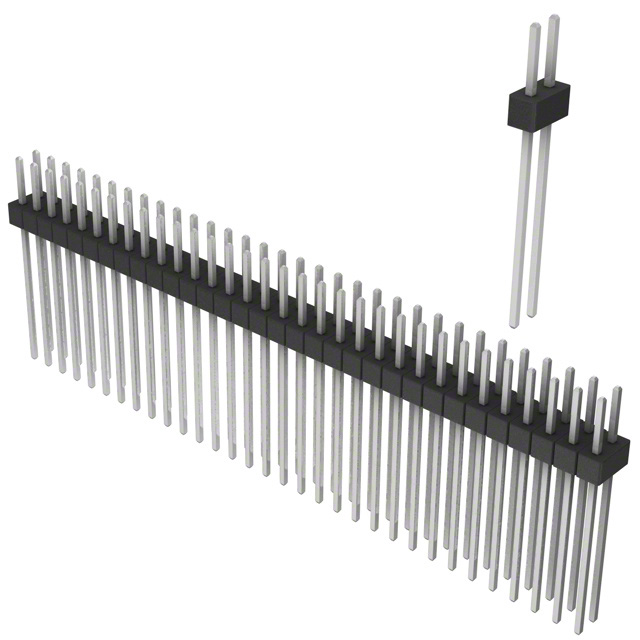

Sullins Connector Solutions PEC32DAGN	2.54 µm	100 µin	3 A	Male Pin	Square	18.29 mm	0.72 "	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Header Breakaway	64	Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0			Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull	2	Polybutylene Terephthalate (PBT)		26.67 mm	1.05 in

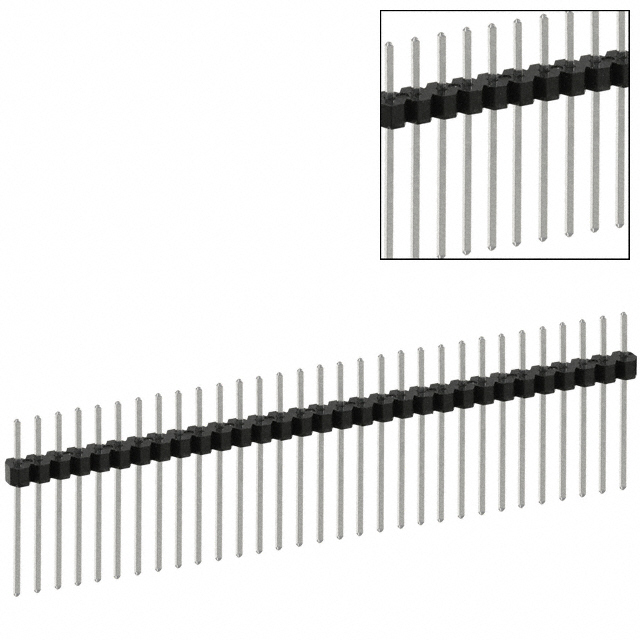

Sullins Connector Solutions PEC32SAHN	2.54 µm	100 µin	3 A	Male Pin	Square	20.83 mm	0.82 in	0.23 in	5.84 mm	Through Hole			Header Breakaway		Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0			Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull		Polybutylene Terephthalate (PBT)	1	29.21 mm	1.15 in

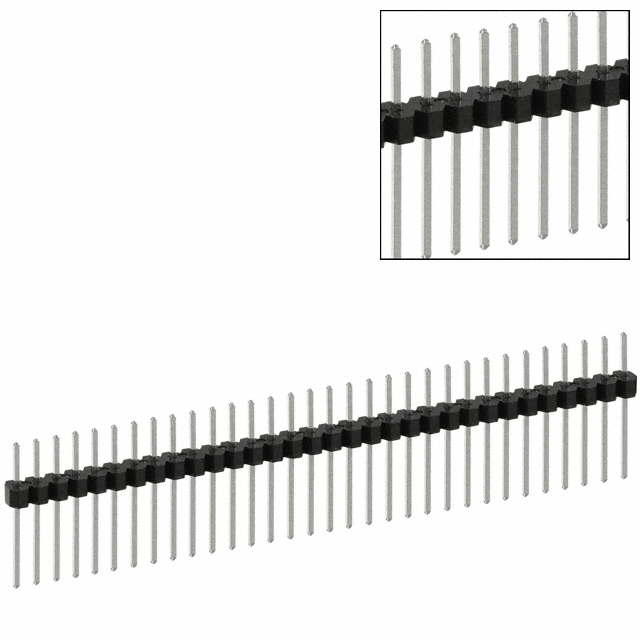

Sullins Connector Solutions PEC32SADN	2.54 µm	100 µin	3 A	Male Pin	Square	10.67 mm	0.42 in	0.23 in	5.84 mm	Through Hole			Header Breakaway		Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0	19.05 mm	0.75 in	Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull		Polybutylene Terephthalate (PBT)	1

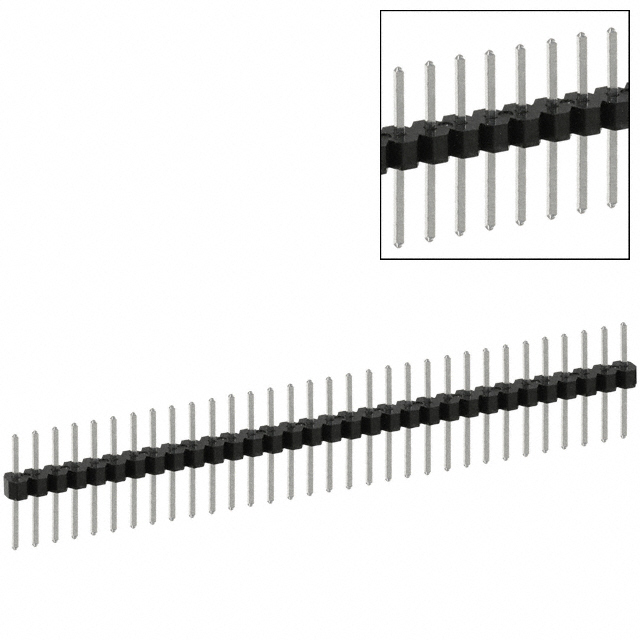

Sullins Connector Solutions PEC32SACN	2.54 µm	100 µin	3 A	Male Pin	Square	8.13 mm	0.32 in	0.23 in	5.84 mm	Through Hole			Header Breakaway		Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0			Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull		Polybutylene Terephthalate (PBT)	1	16.51 mm	0.65 in

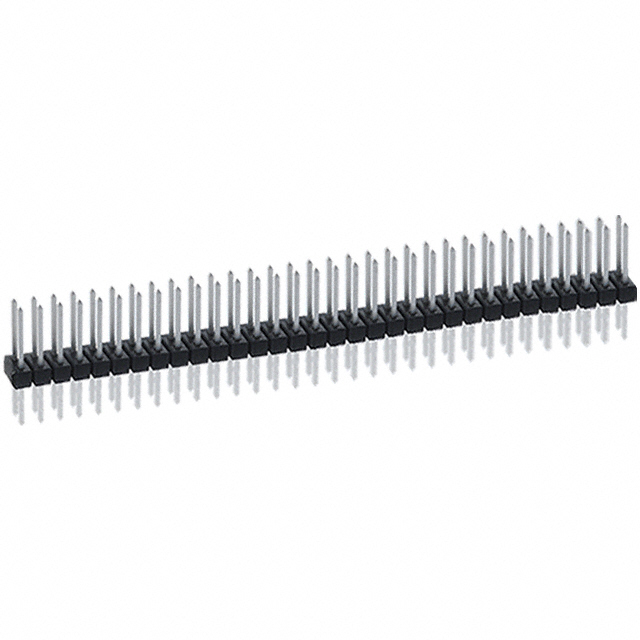

Sullins Connector Solutions PEC32DFBN	2.54 µm	100 µin	3 A	Male Pin	Square	5.58 mm	0.22 in	0.318 in	8.08 mm	Through Hole	0.1 in	2.54 mm	Header Breakaway	64	Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0			Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull	2	Polybutylene Terephthalate (PBT)		16.21 mm	0.638 in
Sullins Connector Solutions PEC32SAAN	2.54 µm	100 µin	3 A	Male Pin	Square	3.05 mm	0.12 in	0.23 in	5.84 mm	Through Hole			Header Breakaway		Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0	11.43 mm	0.45 in	Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull		Polybutylene Terephthalate (PBT)	1

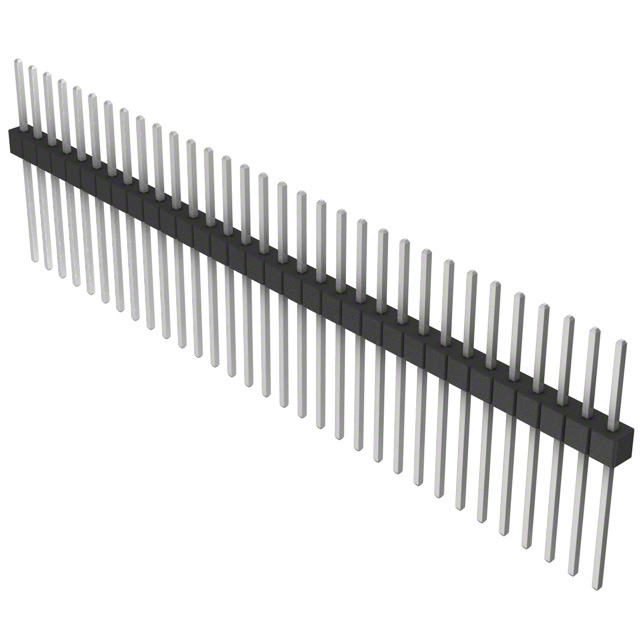

Sullins Connector Solutions PEC32SFEN	2.54 µm	100 µin	3 A	Male Pin	Square	13.21 mm	0.52 in	0.318 in	8.08 mm	Through Hole			Header Breakaway		Phosphor Bronze	100 çin	2.54 çm	-65 ░C	125 °C	Tin	0.1 "	2.54 mm	All	UL94 V-0			Black	0.1 in	2.54 mm	Unshrouded	Solder	Board to Board Cable	Push-Pull		Polybutylene Terephthalate (PBT)	1	23.83 mm	0.938 in
