SMD Indust C0G HT200C Series

Manufacturer: KEMET

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 50V 68PF C0G 0402 5%

Part	Temperature Coefficient	Thickness (Max)	Thickness (Max) [Max]	Voltage - Rated	Features	Tolerance	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Thickness (Max) [Max]	Size / Dimension [y]	Package / Case
KEMET C0402H680J5GACTU	C0G NP0	0.55 mm	0.022 in	50 VDC	High Temperature Low ESL	5 %	68 pF	200 °C	-55 C	MLCC Surface Mount	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Downhole

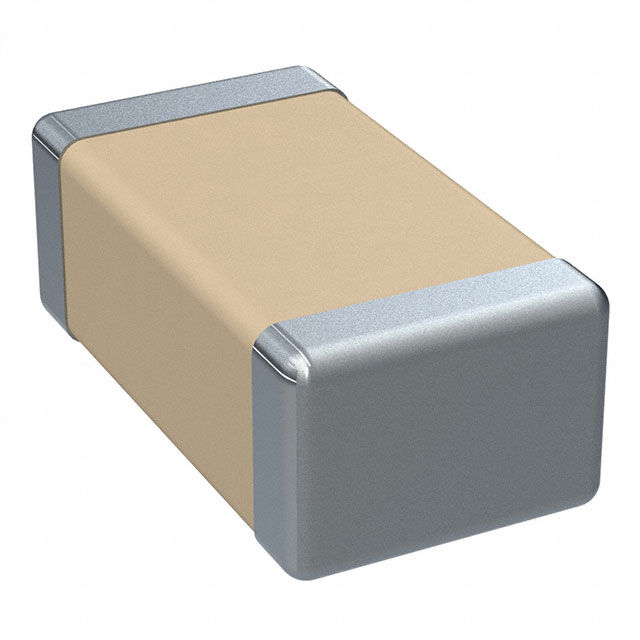

KEMET C0805H222J1GACTU	C0G NP0		0.035 "	100 V	High Temperature Low ESL	5 %	2200 pF	200 °C	-55 C	MLCC Surface Mount	0805	0.049 "	1.25 mm	0.079 in	2 mm	Downhole	0.88 mm

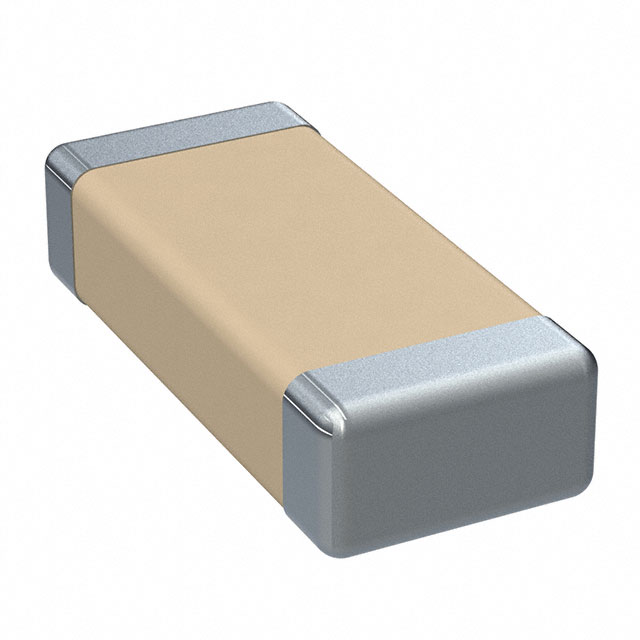

KEMET C1206H331J1GACTU	C0G NP0		0.035 "	100 V	High Temperature Low ESL	5 %	330 pF	200 °C	-55 C	MLCC Surface Mount	1206 (3216 Metric)	0.063 "	1.6 mm	0.126 "	3.2 mm	Downhole	0.88 mm
KEMET C0603H101J5GACTU	C0G NP0		0.034 "	50 VDC	High Temperature Low ESL	5 %	100 pF	200 °C	-55 C	MLCC Surface Mount	0603	0.031 in		0.063 "	1.6 mm	Downhole	0.87 mm	0.8 mm	1608 Metric
KEMET C0805H682J3GACTU	C0G NP0		0.035 "	25 VDC	High Temperature Low ESL	5 %	6800 pF	200 °C	-55 C	MLCC Surface Mount	0805	0.049 "	1.25 mm	0.079 in	2 mm	Downhole	0.88 mm
KEMET C1206H103J1GACTU	C0G NP0		0.035 "	100 V	High Temperature Low ESL	5 %	10000 pF	200 °C	-55 C	MLCC Surface Mount	1206 (3216 Metric)	0.063 "	1.6 mm	0.126 "	3.2 mm	Downhole	0.88 mm
KEMET C0805H103J1GACTU	C0G NP0		0.039 in	100 V	High Temperature Low ESL	5 %	10000 pF	200 °C	-55 C	MLCC Surface Mount	0805	0.049 "	1.25 mm	0.079 in	2 mm	Downhole	1 mm
KEMET C1206H101J1GACT1K0	C0G NP0		0.035 "	100 V	High Temperature Low ESL	5 %	100 pF	200 °C	-55 C	MLCC Surface Mount	1206 (3216 Metric)	0.063 "	1.6 mm	0.126 "	3.2 mm	Downhole	0.88 mm
KEMET C0402H121J3GACTU	C0G NP0	0.55 mm	0.022 in	25 VDC	High Temperature Low ESL	5 %	120 pF	200 °C	-55 C	MLCC Surface Mount	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	Downhole
KEMET C1210H104J5GACTU	C0G NP0		0.055 in	50 VDC	High Temperature Low ESL	5 %	100000 pF	200 °C	-55 C	MLCC Surface Mount	1210	0.098 in	2.5 mm	0.126 "	3.2 mm	Downhole	1.4 mm		3225 Metric
