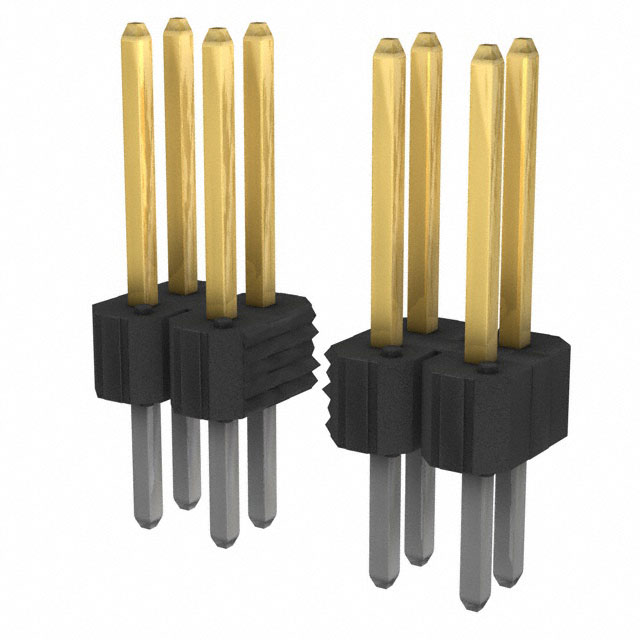

87894 Series

Catalog

CONN HEADER VERT 62POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Number of Rows	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Number of Positions	Termination	Mounting Type	Contact Shape	Shrouding	Contact Finish - Post
Amphenol ICC (FCI) 87894-162HLF	4.32 mm	0.17 in	Gold or Gold GXT™	All	Male Pin	UL94 V-0	30 Áin	0.76 Ám	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	62	Solder	Through Hole	Square	Unshrouded
Amphenol ICC (FCI) 87894-428HLF	4.32 mm	0.17 in		All	Male Pin	UL94 V-0	100 çin	2.54 çm	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	28	Solder	Through Hole	Square	Unshrouded	Tin
Amphenol ICC (FCI) 87894-404HLF	4.32 mm	0.17 in		All	Male Pin	UL94 V-0	100 çin	2.54 çm	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	4	Solder	Through Hole	Square	Unshrouded	Tin
Amphenol ICC (FCI) 87894-272HLF	4.32 mm	0.17 in	Gold or Gold GXT™	All	Male Pin	UL94 V-0	15 µin	0.38 µm	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	72	Solder	Through Hole	Square	Unshrouded
Amphenol ICC (FCI) 87894-146HLF	4.32 mm	0.17 in	Gold or Gold GXT™	All	Male Pin	UL94 V-0	30 Áin	0.76 Ám	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	46	Solder	Through Hole	Square	Unshrouded
Amphenol ICC (FCI) 87894-430HLF	4.32 mm	0.17 in		All	Male Pin	UL94 V-0	100 çin	2.54 çm	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	30	Solder	Through Hole	Square	Unshrouded	Tin
Amphenol ICC (FCI) 87894-424HLF	4.32 mm	0.17 in		All	Male Pin	UL94 V-0	100 çin	2.54 çm	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	24	Solder	Through Hole	Square	Unshrouded	Tin
Amphenol ICC (FCI) 87894-142HLF	4.32 mm	0.17 in	Gold or Gold GXT™	All	Male Pin	UL94 V-0	30 Áin	0.76 Ám	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	42	Solder	Through Hole	Square	Unshrouded
Amphenol ICC (FCI) 87894-452HLF	4.32 mm	0.17 in		All	Male Pin	UL94 V-0	100 çin	2.54 çm	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	52	Solder	Through Hole	Square	Unshrouded	Tin
Amphenol ICC (FCI) 87894-148HLF	4.32 mm	0.17 in	Gold or Gold GXT™	All	Male Pin	UL94 V-0	30 Áin	0.76 Ám	Header	0.588 "	14.94 mm	2	0.1 in	2.54 mm	Push-Pull	Black	2.54 mm	0.1 in	0.318 "	8.08 mm	0.1 in	2.54 mm	48	Solder	Through Hole	Square	Unshrouded
