634-044 Series
Manufacturer: EDAC Inc.
Catalog

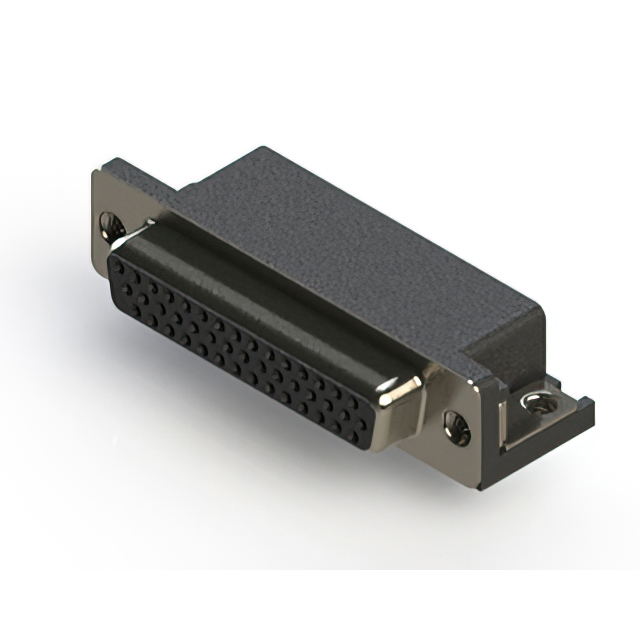

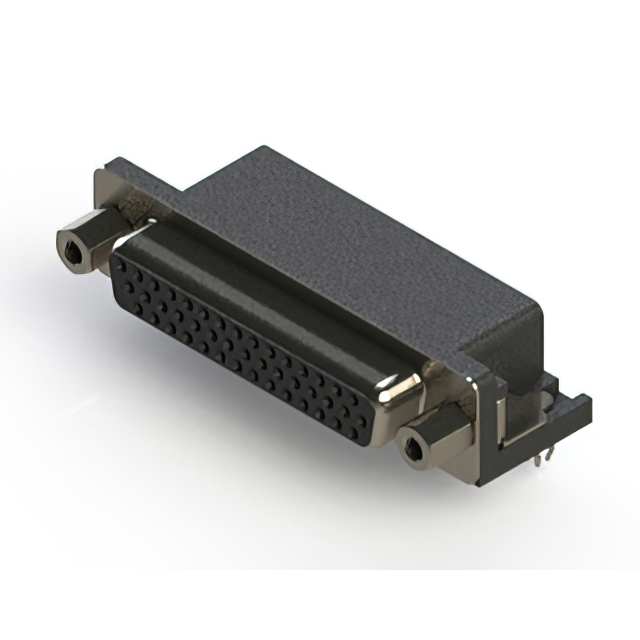

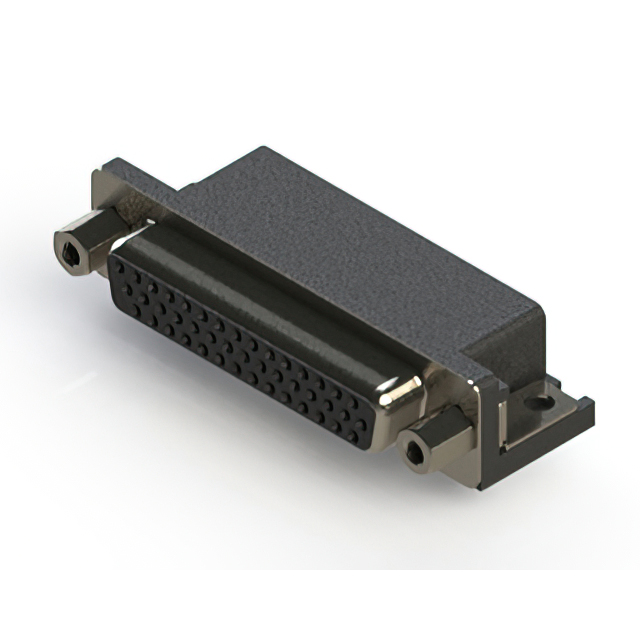

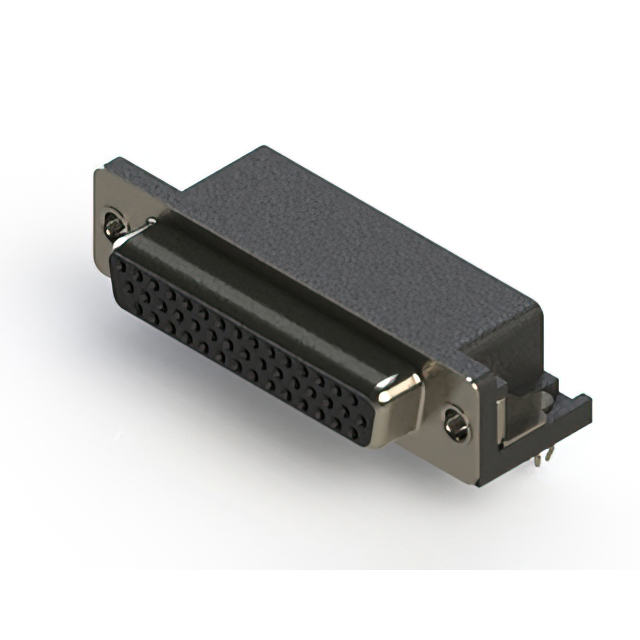

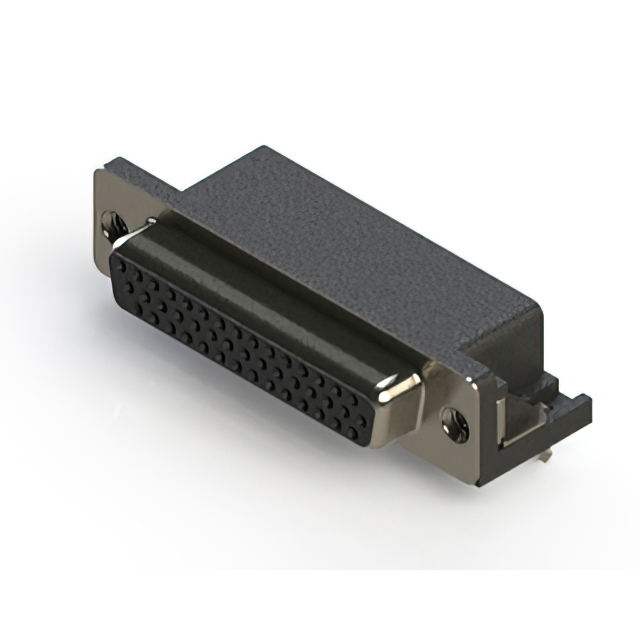

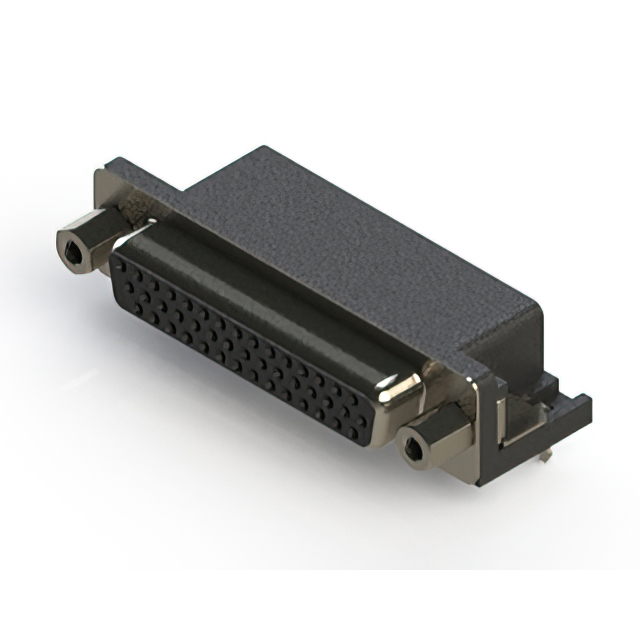

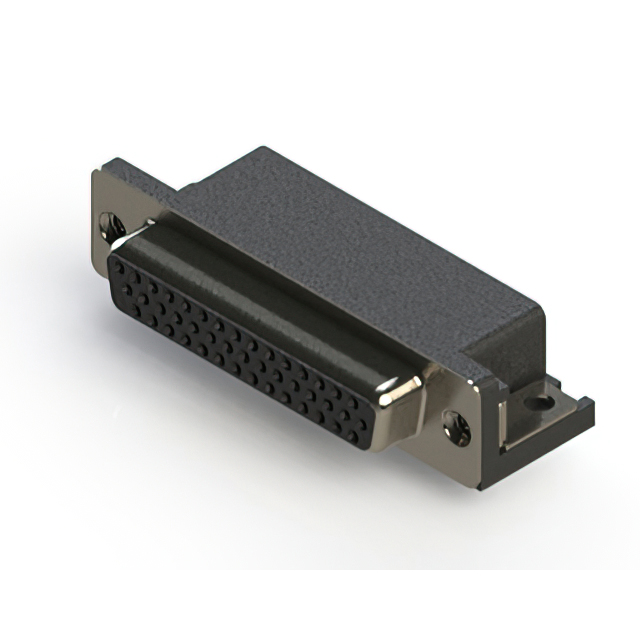

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
...
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Features | Current Rating (Amps) | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Material Flammability Rating | Connector Type | Mounting Type | Number of Positions | Number of Rows [custom] | Contact Type | Shell Material, Finish | Connector Style | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Board Lock Mounting Brackets Shielded | 3 A | 4-40 Mating Side Female Screwlock | Gold | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Mounting Brackets Shielded | 3 A | Housing/Shell (M3) | Gold | 15 µin | 0.38 µm | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Mounting Brackets Shielded | 3 A | Housing/Shell (M3) | Gold | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Board Lock Mounting Brackets Shielded | 3 A | 4-40 Mating Side Female Screwlock | Gold | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Mounting Brackets Shielded | 3 A | Housing/Shell (Unthreaded) | Gold | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Mounting Brackets Shielded | 3 A | 4-40 Mating Side Female Screwlock | Gold | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Board Lock Mounting Brackets Shielded | 3 A | 4-40 | Gold | 15 µin | 0.38 µm | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Mounting Brackets Shielded | 3 A | Housing/Shell (M3) | Gold | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | Flash | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Board Lock Mounting Brackets Shielded | 3 A | Housing/Shell (Unthreaded) | Gold | 30 Áin | 0.76 Ám | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Polyester Thermoplastic | 3 | 8.89 mm | 0.35 in | Board Lock Mounting Brackets Shielded | 3 A | 4-40 | Gold | 15 µin | 0.38 µm | Solder | UL94 V-0 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 44 | 3 | Signal | Nickel Plated Steel | D-Sub High Density |
