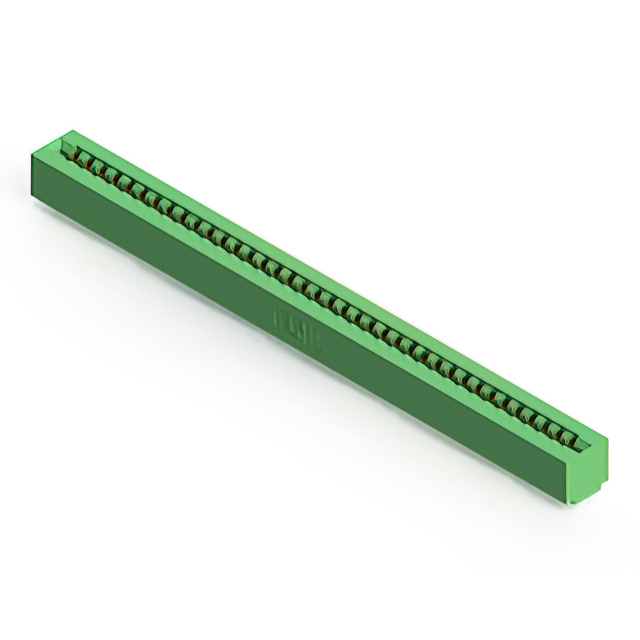

807-038 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 38POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Color | Mounting Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Contact Finish | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions | Read Out | Termination | Features | Number of Positions/Bay/Row | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Board Edge Straddle Mount | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 38 | Dual | Solder | Card Extender | 19 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Through Hole | Female | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Tin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 38 | Dual | Wire Wrap | 19 | 2 | ||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Through Hole | Female | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Tin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 38 | Single | Solder | 38 | 1 | 1 | ||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Right Angle Through Hole | Female | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Tin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 76 | Dual | Solder | 2 | 38 | 1 | ||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Right Angle Through Hole | Female | 3.96 mm | 0.156 in | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | Tin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 76 | Dual | Solder | 2 | 38 | 1 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Through Hole | Female | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Tin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 76 | Dual | Solder Eyelet(s) | 2 | 38 | 1 | ||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Right Angle Through Hole | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 38 | Single | Solder | 19 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Through Hole | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Non Specified - Dual Edge | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 38 | Dual | Solder | 19 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Right Angle Through Hole | Female | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Non Specified - Dual Edge | Tin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 76 | Dual | Solder | 2 | 38 | 1 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Board Edge Straddle Mount | Female | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Non Specified - Dual Edge | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Semi Bellows | 38 | Dual | Solder | Card Extender | 19 | 2 |
