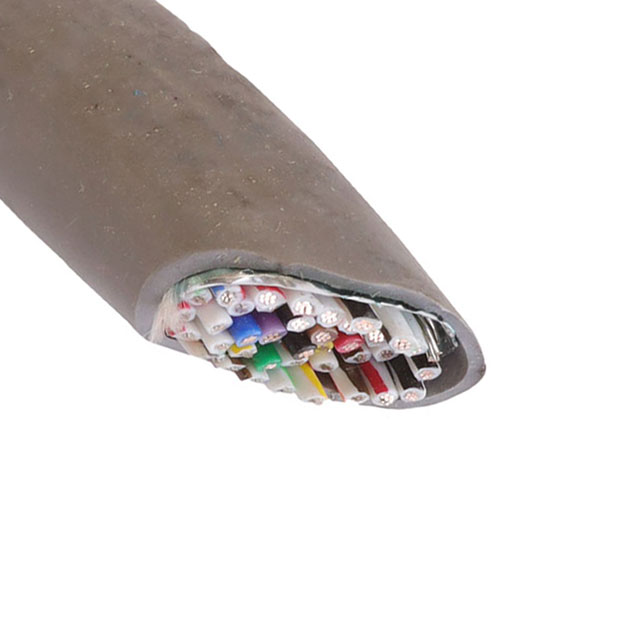

5199/40C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 40COND 22AWG SHLD
| Part | Shield Coverage | Shield Material | Ratings | Length | Length | Jacket (Insulation) Material | Wire Gauge | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors | Features | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | ISO 10993 | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | -35 °C | 105 ░C | Foil | Communication Control | 0.813 mm | 0.032 in | 0.438 in | 11.13 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Slate | 40 | Biological Compatibility Drain Wire Rip Cord | 300 VDC | ||
 ALPHA WIRE | 100 % | Aluminum | ISO 10993 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | -35 °C | 105 ░C | Foil | Communication Control | 0.813 mm | 0.032 in | 0.438 in | 11.13 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Black | 40 | Biological Compatibility Drain Wire Rip Cord | 300 VDC | ||
ALPHA WIRE | 100 % | Aluminum | ISO 10993 | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | -35 °C | 105 ░C | Foil | Communication Control | 0.813 mm | 0.032 in | 0.438 in | 11.13 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Slate | 40 | Biological Compatibility Drain Wire Rip Cord | 300 VDC | 100 ft | 30.5 m | ||
ALPHA WIRE | 100 % | Aluminum | ISO 10993 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | -35 °C | 105 ░C | Foil | Communication Control | 0.813 mm | 0.032 in | 0.438 in | 11.13 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Slate | 40 | Biological Compatibility Drain Wire Rip Cord | 300 VDC |
