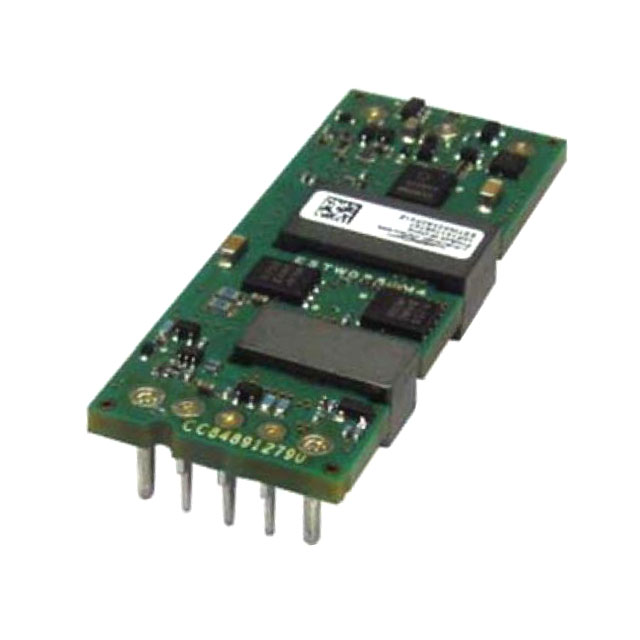

ESTW024 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 5V 120W
| Part | Control Features | Voltage - Input (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Applications | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Type | Features | Voltage - Input (Min) [Min] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Current - Output (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Active Low Enable | 75 V | 8-DIP Module 1/8 Brick | 2.3 in | 58.4 mm | 0.35 in | 22.9 mm | 8.9 mm | 0.9 in | ITE (Commercial) | 2250 VDC | 1 | 5 V | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 36 V | 91.5 % | 85 °C | -40 C | 120 W | 24 A | Through Hole |
OmniOn Power™ | Active Low Enable | 75 V | 8-DIP Module 1/8 Brick | 2.3 in | 58.4 mm | 0.35 in | 22.9 mm | 8.9 mm | 0.9 in | ITE (Commercial) | 2250 VDC | 1 | 5 V | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 36 V | 91.5 % | 85 °C | -40 C | 120 W | 24 A | Through Hole |
