2344657 Series

Catalog

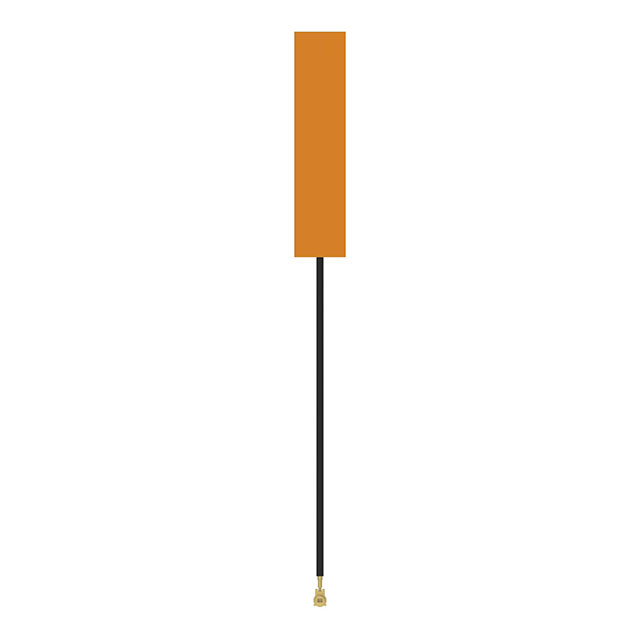

WLAN DUAL BAND ANTENNA FPC H 50M

Part	Antenna Type	Features	Features	Number of Bands	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Applications	Gain	Termination	Height (Max)	Height (Max) [Max]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	RF Family/Standard	VSWR	Frequency Range [Max]	Frequency Range [Min]
TE Connectivity Raychem Cable Protection 2344657-1	PCB Trace	50 mm	Cable	2	Adhesive	1 mm	0.039 in	General Purpose
TE Connectivity Raychem Cable Protection 2344657-2	PCB Trace	100 mm	Cable	2	Adhesive			Bluetooth WLAN Zigbee™	2 dBic	MHF	0.19 mm	0.007 in	4 GHz	2 GHz	3 GHz	2.45 GHz 5.5125 GHz	802.15.4 Bluetooth WiFi	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz
