PEC08 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Material	Style	Insulation Material	Current Rating (Amps)	Contact Type	Termination	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Finish - Post	Number of Positions	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Number of Rows
Sullins Connector Solutions PEC08DBBN	2.54 µm	100 µin	Header Breakaway	Right Angle Through Hole	-65 ░C	125 °C	Unshrouded	6.1 mm	0.24 in	2	0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All	5.08 mm	0.2 "	Black	0.23 in	5.84 mm	0.1 in	2.54 mm	UL94 V-0	Tin	16	Square
Sullins Connector Solutions PEC08DFCN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded			2	0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.318 in	8.08 mm	0.1 in	2.54 mm	UL94 V-0	Tin	16	Square	18.75 mm	0.738 in	8.13 mm	0.32 in	0.1 in	2.54 mm

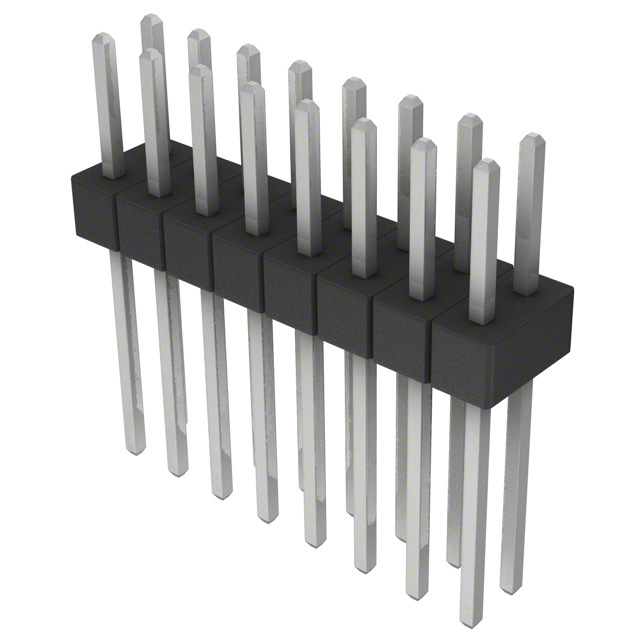

Sullins Connector Solutions PEC08DADN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded			2	0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.23 in	5.84 mm	0.1 in	2.54 mm	UL94 V-0	Tin	16	Square			10.67 mm	0.42 in	0.1 in	2.54 mm	19.05 mm	0.75 in
Sullins Connector Solutions PEC08SFEN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.318 in	8.08 mm			UL94 V-0	Tin	8	Square	23.83 mm		13.21 mm	0.52 in	0.1 in	2.54 mm			0.938 in	1

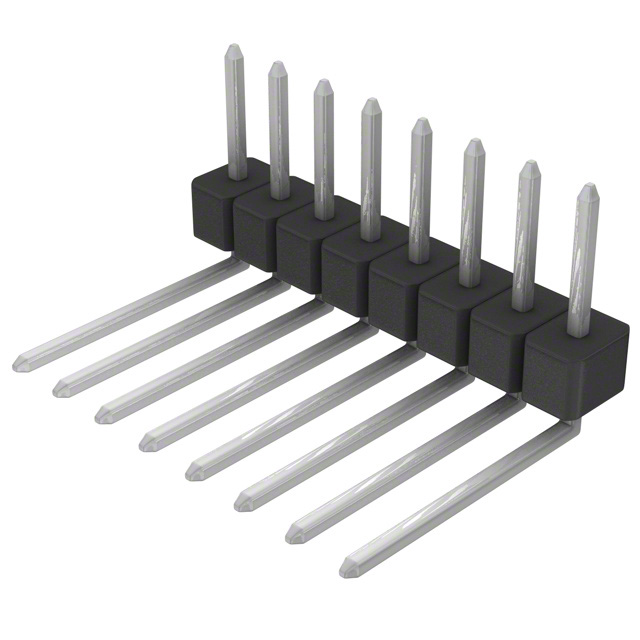

Sullins Connector Solutions PEC08SBDN	2.54 µm	100 µin	Header Breakaway	Right Angle Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.23 in	5.84 mm			UL94 V-0	Tin	8	Square			10.16 mm	0.4 in	0.14 in	3.56 mm				1

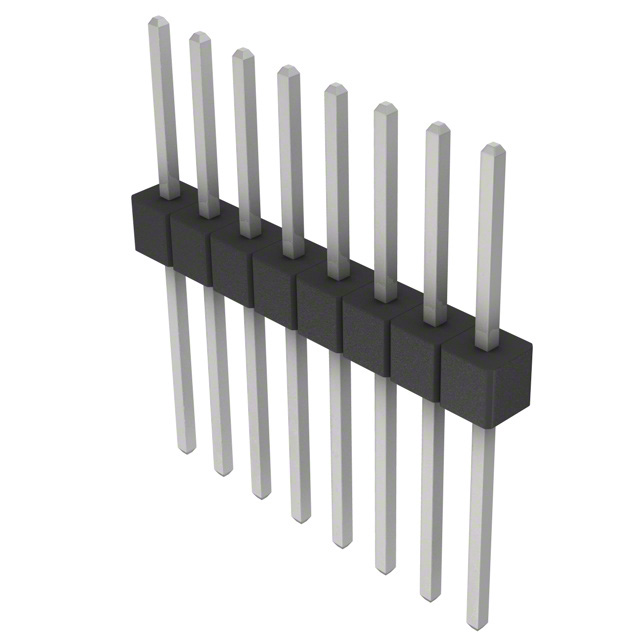

Sullins Connector Solutions PEC08SFDN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.318 in	8.08 mm			UL94 V-0	Tin	8	Square	21.29 mm		10.67 mm	0.42 in	0.1 in	2.54 mm			0.838 in	1
Sullins Connector Solutions PEC08SAFN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All	15.75 mm	0.62 "	Black	0.23 in	5.84 mm			UL94 V-0	Tin	8	Square	24.13 mm				0.1 in	2.54 mm			0.95 in	1
Sullins Connector Solutions PEC08SFAN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.318 in	8.08 mm			UL94 V-0	Tin	8	Square			3.05 mm	0.12 in	0.1 in	2.54 mm	13.67 mm	0.538 in		1

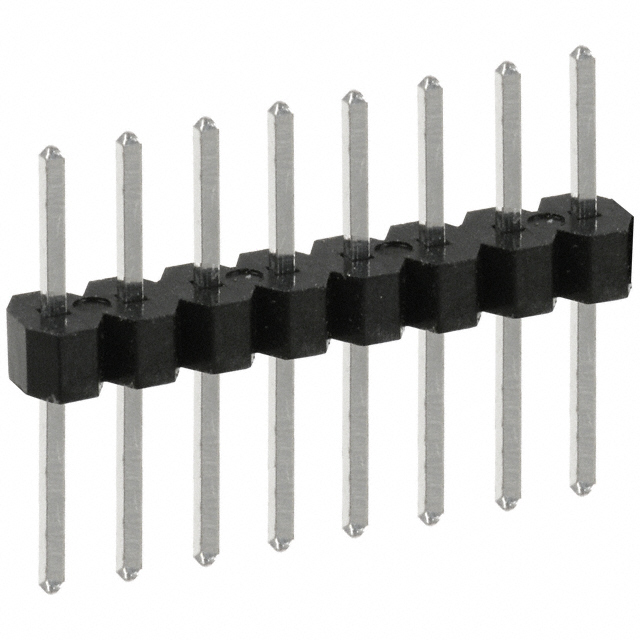

Sullins Connector Solutions PEC08SACN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.23 in	5.84 mm			UL94 V-0	Tin	8	Square	16.51 mm		8.13 mm	0.32 in	0.1 in	2.54 mm			0.65 in	1
Sullins Connector Solutions PEC08SAEN	2.54 µm	100 µin	Header Breakaway	Through Hole	-65 ░C	125 °C	Unshrouded				0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	Phosphor Bronze	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Male Pin	Solder	All			Black	0.23 in	5.84 mm			UL94 V-0	Tin	8	Square	21.59 mm		13.21 mm	0.52 in	0.1 in	2.54 mm			0.85 in	1
