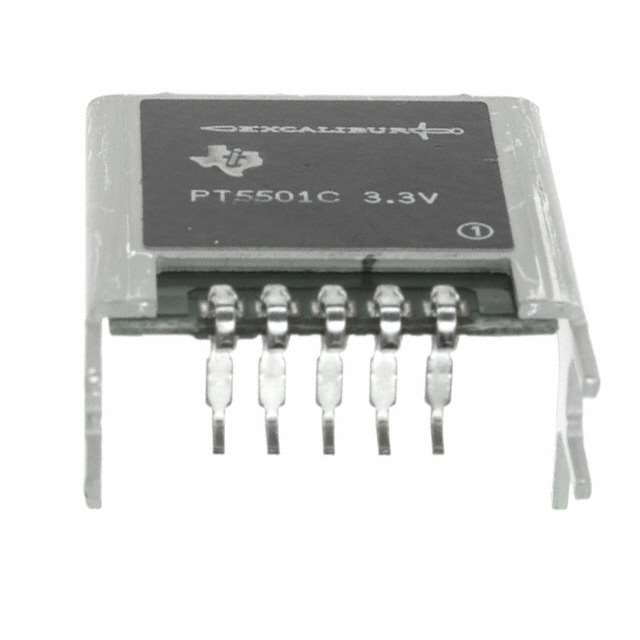

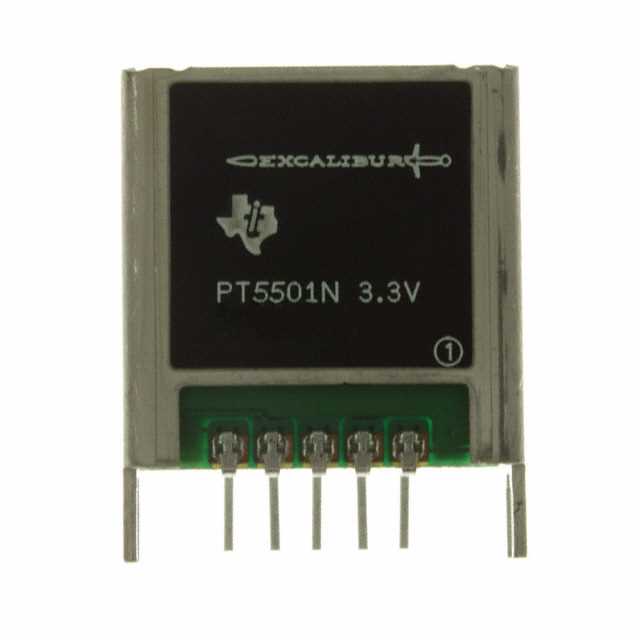

PT5501 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 3.3V
| Part | Voltage - Input (Min) [Min] | Mounting Type | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Number of Outputs | Voltage - Input (Max) [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 4.5 V | Through Hole | 5-SIP Module | 22.9 mm | 12.2 mm | 24.1 mm | 24.13 mm | 0.48 in | 0.9 " | Non-Isolated PoL Module | 1 | 5.5 V | ITE (Commercial) | 85 °C | -40 °C | 3.3 V | 3 A | 90 % |
 Texas Instruments | 4.5 V | Through Hole Right Angle | 5-SIP Module | Non-Isolated PoL Module | 1 | 5.5 V | ITE (Commercial) | 85 °C | -40 °C | 3.3 V | 3 A | 90 % | ||||||
 Texas Instruments | 4.5 V | Surface Mount | 5-SMD Module | Non-Isolated PoL Module | 1 | 5.5 V | ITE (Commercial) | 85 °C | -40 °C | 3.3 V | 3 A | 90 % |
