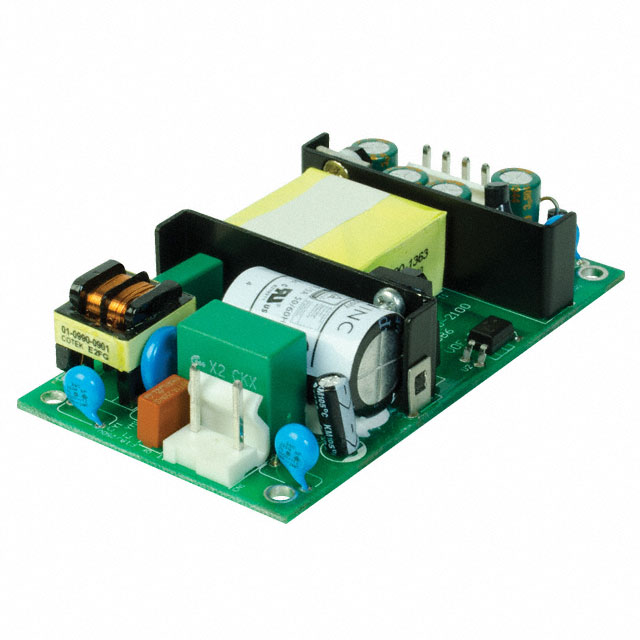

VOF-30 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 5V 30W

Part	Efficiency	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Type	Features	Mounting Type	Number of Outputs	Approval Agency	Current - Output 1
CUI Inc. VOF-30-5	78 %	3000 V	5 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	277 VAC	90 VAC	21.1 mm	50.8 mm	90 mm	2 in	0.83 "	3.54 in	30 Watts	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	5.3 A
CUI Inc. VOF-30-24	86 %	3000 V	24 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	277 VAC	90 VAC	21.1 mm	50.8 mm	90 mm	2 in	0.83 "	3.54 in	30 Watts	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	1.3 A
CUI Inc. VOF-30-15	85 %	3000 V	15 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	277 VAC	90 VAC	21.1 mm	50.8 mm	90 mm	2 in	0.83 "	3.54 in	30 Watts	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	2 A
CUI Inc. VOF-30-12	84 %	3000 V	12 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	277 VAC	90 VAC	21.1 mm	50.8 mm	90 mm	2 in	0.83 "	3.54 in	30 Watts	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	2.5 A
