CWR-217 Series

Catalog

HEADERS & WIRE HOUSINGS SOCKET

Part	Contact Type	Color	Row Spacing	Row Spacing	Features	Cable Termination	Mounting Type	Contact Finish	Wire Type	Number of Rows [custom]	Connector Type	Number of Positions [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions

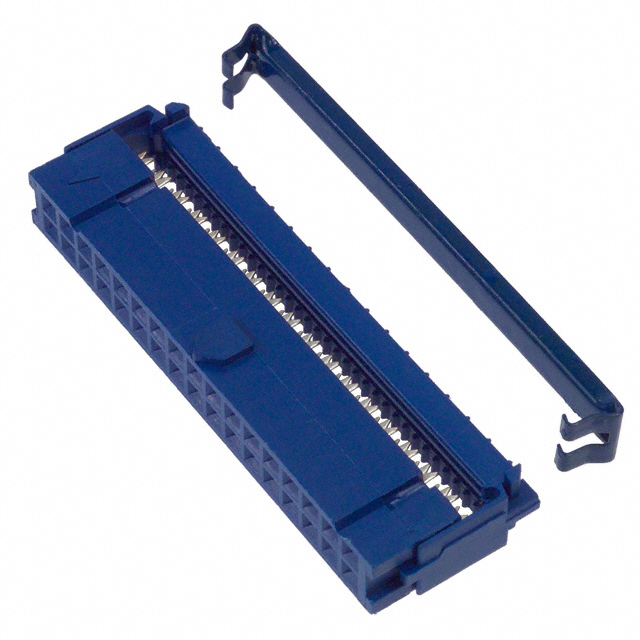

CW Industries CWR-217-34-0203	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	34	0.1 "	2.54 mm
CW Industries CWR-217-10-0003	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin-Lead	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm	2.54 µm	100 µin	10

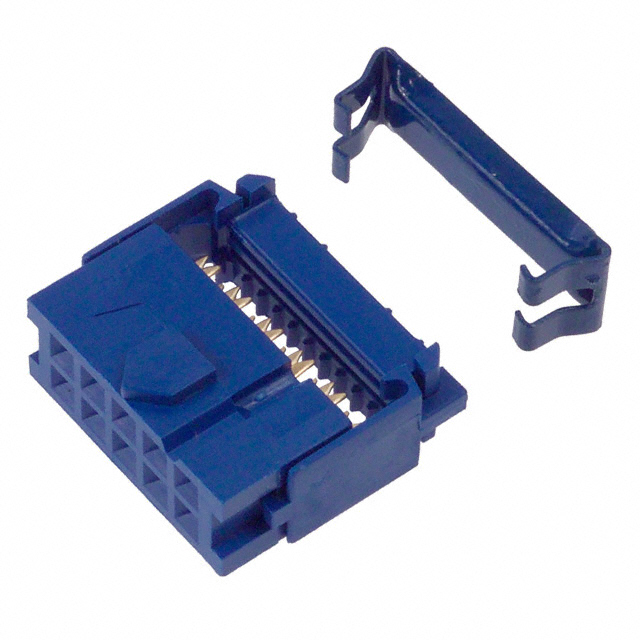

CW Industries CWR-217-10-0000	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Gold	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm	0.25 Ám	10 Áin	10

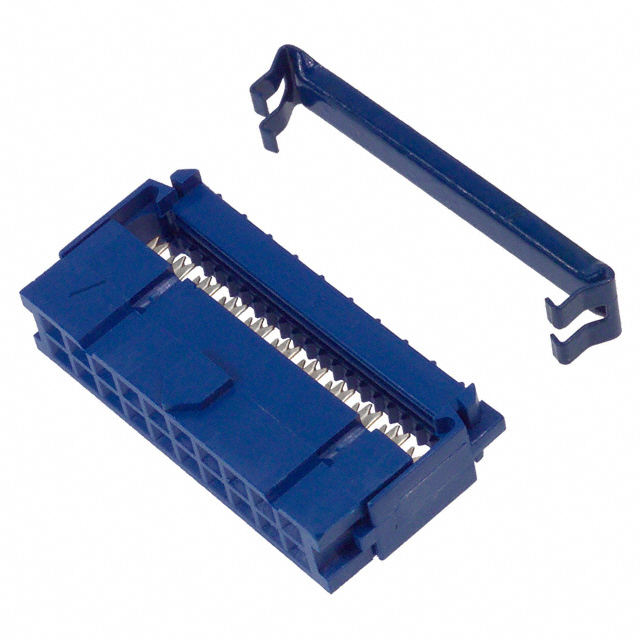

CW Industries CWR-217-20-0203	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm			20

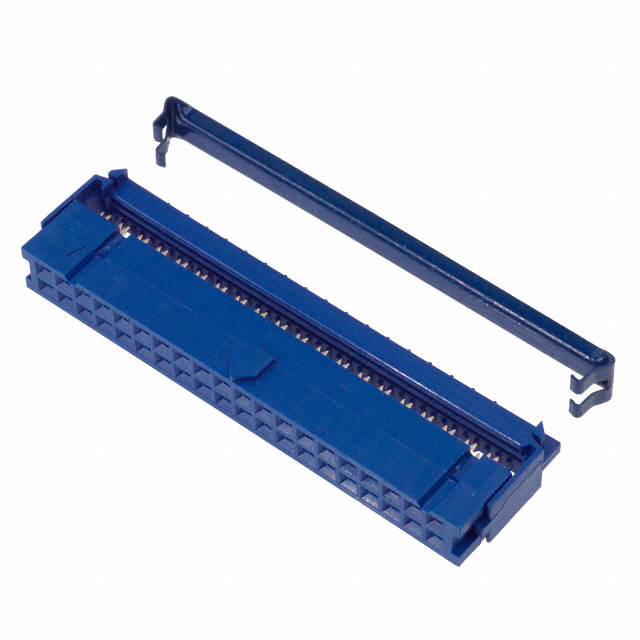

CW Industries CWR-217-40-0203	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm			40

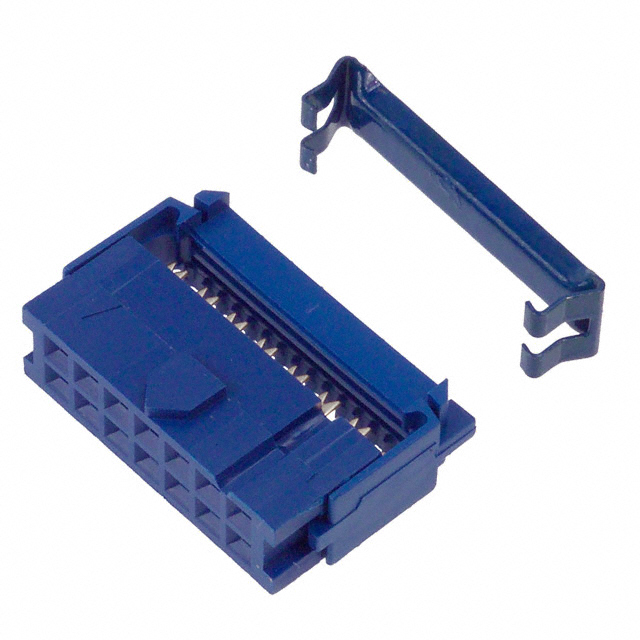

CW Industries CWR-217-14-0000	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Gold	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm	0.25 Ám	10 Áin	14

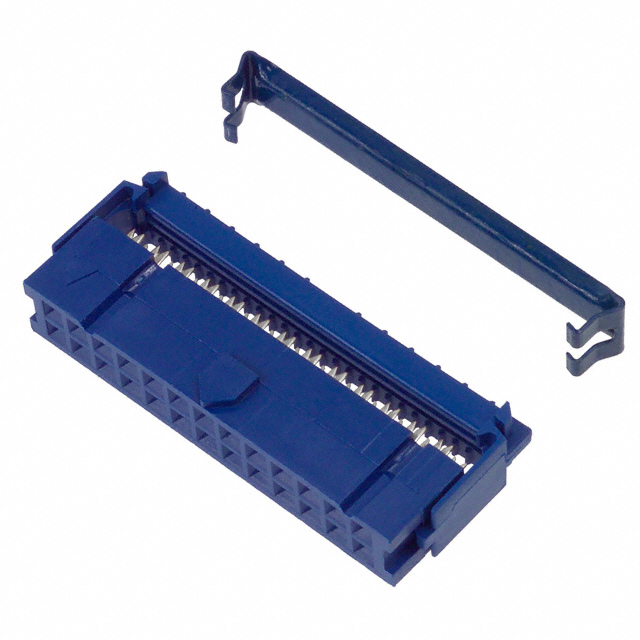

CW Industries CWR-217-26-0203	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm			26
CW Industries CWR-217-14-0203	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm			14

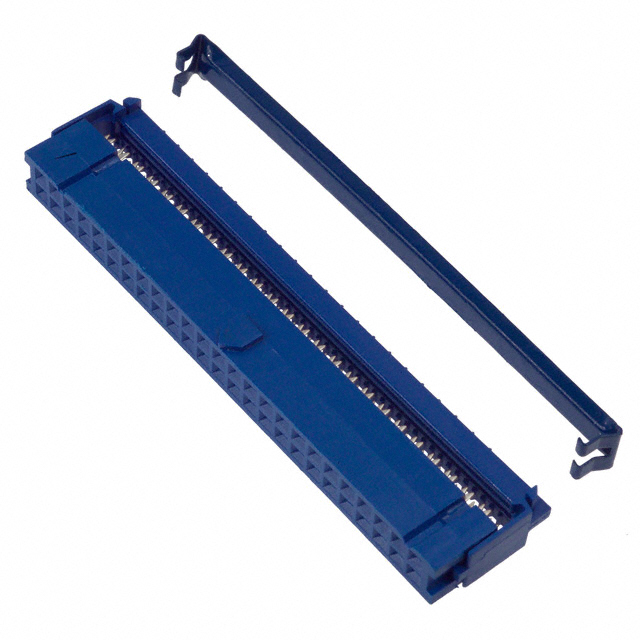

CW Industries CWR-217-50-0203	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm			50
CW Industries CWR-217-40-0003	Female Socket	Blue	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin-Lead	Ribbon Cable	2	Receptacle		0.1 "	2.54 mm	2.54 µm	100 µin	40
