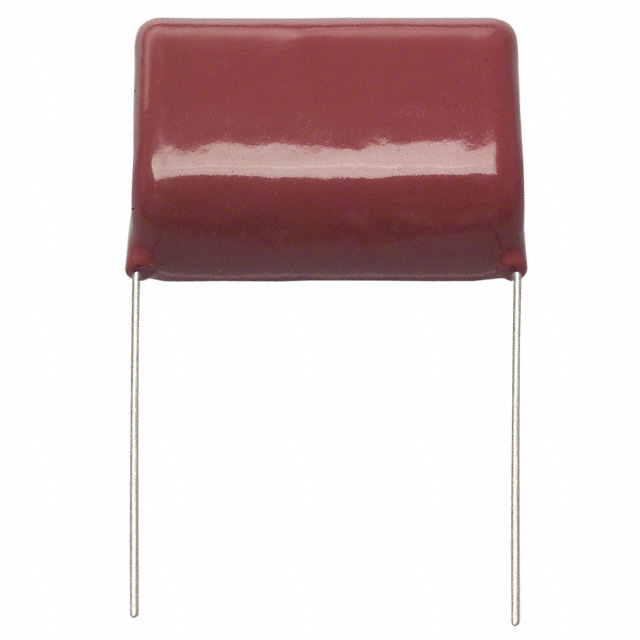

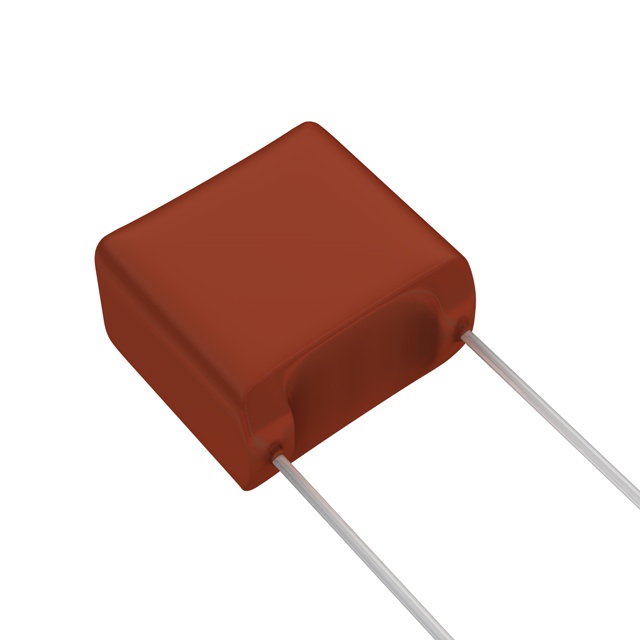

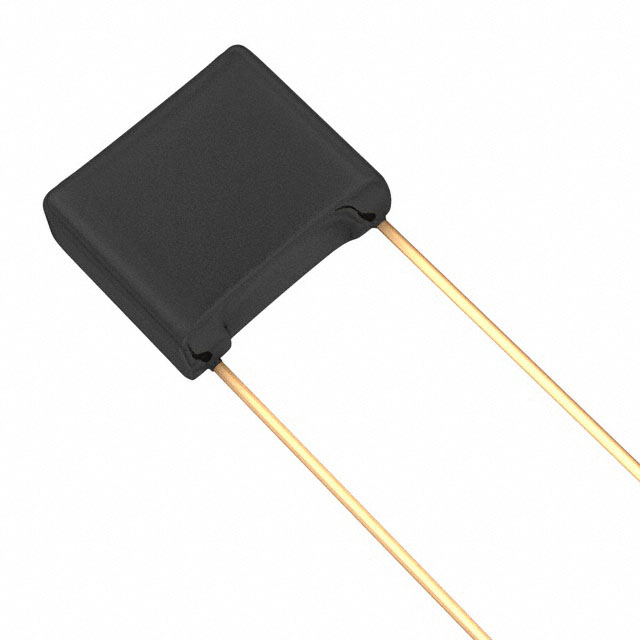

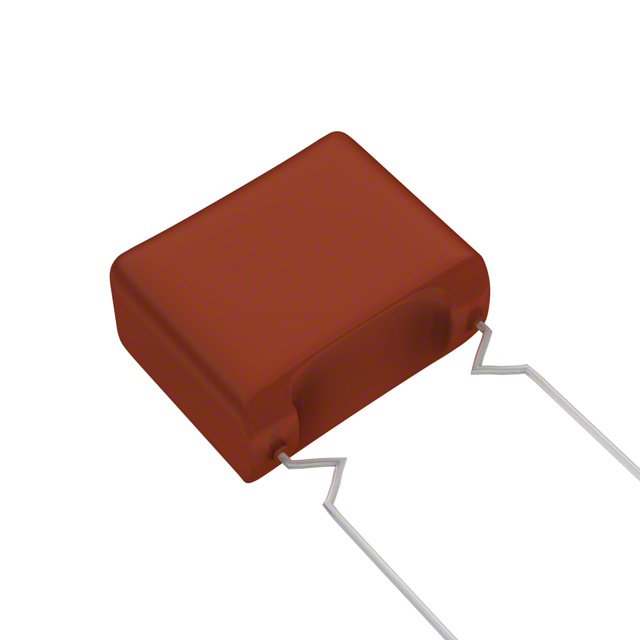

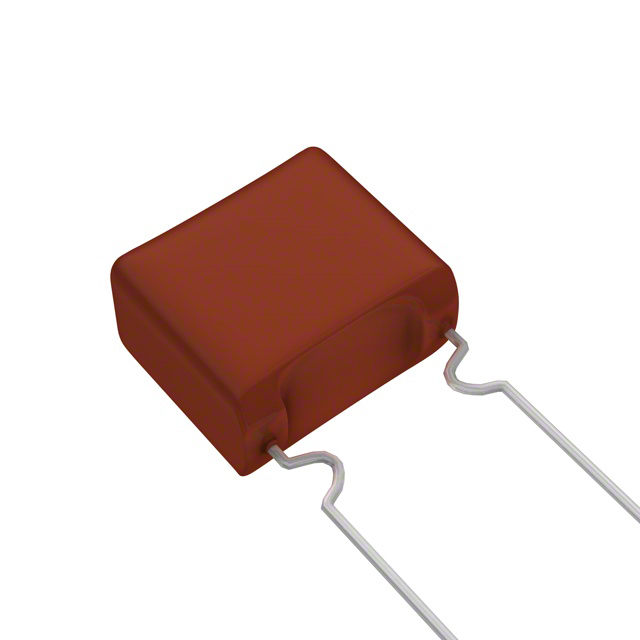

ECW-F2475 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 4.7UF 3% 250VDC RADIAL

Part	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Voltage Rating - DC	Capacitance	Tolerance	Dielectric Material	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lead Spacing [x]	Lead Spacing [x]	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECW-F2475HA	Through Hole	PC Pins	-40 C	105 ░C	0.87 in	22.1 mm	Radial	250 V	4.7 µF	3 %	Polypropylene (PP) Metallized	High Frequency Switching	0.937 "	23.8 mm	0.583 "	14.8 mm	0.787 in	20 mm
Panasonic Electronic Components ECW-F2475HAB	Through Hole	PC Pins	-40 C	105 ░C	1.067 in	27.1 mm	Radial	250 V	4.7 µF	3 %	Polypropylene (PP) Metallized	High Frequency Switching	0.937 "	23.8 mm	0.583 "	14.8 mm			0.492 in	12.5 mm
Panasonic Electronic Components ECW-F2475JA	Through Hole	PC Pins	-40 C	105 ░C	0.87 in	22.1 mm	Radial	250 V	4.7 µF	5 %	Polypropylene (PP) Metallized	High Frequency Switching	0.937 "	23.8 mm	0.583 "	14.8 mm	0.787 in	20 mm			125 V
Panasonic Electronic Components ECW-F2475JB	Through Hole	PC Pins	-25 °C	85 °C			Radial	250 V	4.7 µF	5 %	Polypropylene (PP) Metallized	High Frequency Switching	1.299 in	33 mm	0.709 in	18 mm			1.181 "	30 mm
Panasonic Electronic Components ECW-F2475HAQ	Through Hole	PC Pins	-40 C	105 ░C			Radial	250 V	4.7 µF	3 %	Polypropylene (PP) Metallized	High Frequency Switching	0.937 "	23.8 mm	0.583 "	14.8 mm	0.787 in	20 mm				1.146 in	29.1 mm
Panasonic Electronic Components ECW-F2475JAB	Through Hole	PC Pins	-40 C	105 ░C	1.067 in	27.1 mm	Radial	250 V	4.7 µF	5 %	Polypropylene (PP) Metallized	High Frequency Switching	0.937 "	23.8 mm	0.583 "	14.8 mm			0.492 in	12.5 mm
