5750 Series
Manufacturer: BRADY
Beta
⌘K

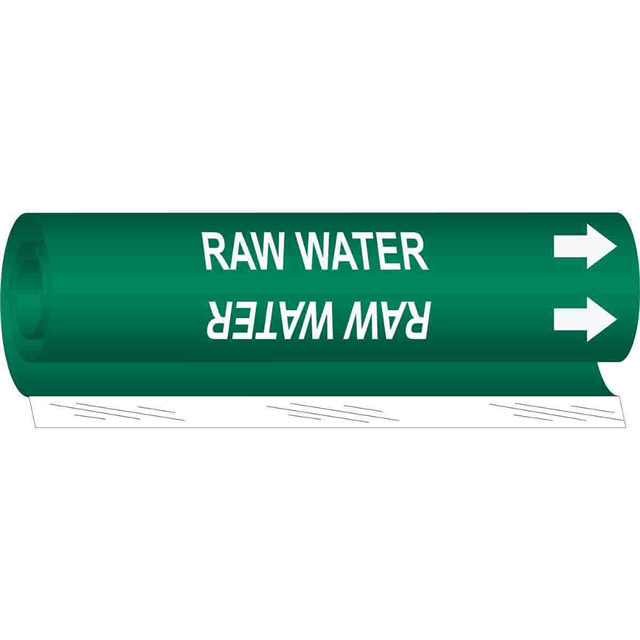

B689 5750-I WHT/GRN STYLE I
| Part | Location | Legend (Symbol Only) | Features | Outside Pipe Diameter (Max) [diameter] | Outside Pipe Diameter (Max) [diameter] | Length | Length | Mounting Type | Outside Pipe Diameter (Min) | Outside Pipe Diameter (Min) [Min] | Applications | Color - Legend | Legend (Text) | Width | Width | Color - Background | Arrangement | Application Specifics | Shape | Language | Material - Body | Print Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRADY | Outdoor | Directional Arrow | Chemical Resistant | 1.5 in | 38.1 mm | 9 in | 228.6 mm | Snap On | 60.33 mm | 2.375 in | Pipe | White | Raw Water | 8 in | 203.2 mm | Green | Symbol and Text | Water Fluids | Rectangle | 63000 A 69000 A | Plastic | Pre-Printed |
